Switch控件详解

原生效果

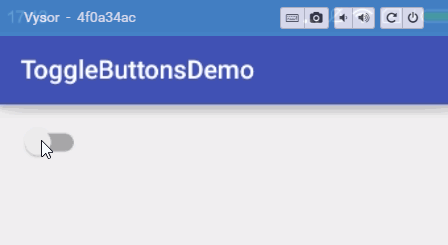

5.x

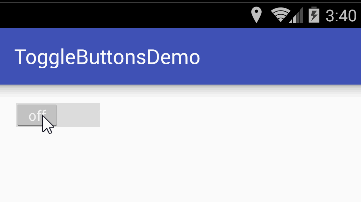

4.x

布局

<Switch
    android:id="@+id/setting_switch"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content" />

属性

Attribute Name	Related Method	Description
android:showText	setShowText(boolean)	Whether to draw on/off text.
android:splitTrack	setSplitTrack(boolean)	Whether to split the track and leave a gap for the thumb drawable.
android:switchMinWidth	setSwitchMinWidth(int)	Minimum width for the switch component Must be a dimension value, which is a floating point number appended with a unit such as “14.5sp”.
android:switchPadding	setSwitchPadding(int)	Minimum space between the switch and caption text Must be a dimension value, which is a floating point number appended with a unit such as “14.5sp”.
android:switchTextAppearance	setSwitchTextAppearance(Context,int)	TextAppearance style for text displayed on the switch thumb.
android:textOff	setTextOff(CharSequence)	Text to use when the switch is in the unchecked/”off” state.
android:textOn	setTextOn(CharSequence)	Text to use when the switch is in the checked/”on” state.
android:textStyle	setSwitchTypeface(Typeface)	Style (bold, italic, bolditalic) for the text.
android:thumb	setThumbResource(int)	Drawable to use as the “thumb” that switches back and forth.
android:thumbTextPadding	setThumbTextPadding(int)	Amount of padding on either side of text within the switch thumb.
android:thumbTint	setThumbTintList(ColorStateList)	Tint to apply to the thumb.
android:thumbTintMode	setThumbTintMode(PorterDuff.Mode)	Blending mode used to apply the thumb tint.
android:track	setTrackResource(int)	Drawable to use as the “track” that the switch thumb slides within.
android:trackTint	setTrackTintList(ColorStateList)	Tint to apply to the track.
android:trackTintMode	setTrackTintMode(PorterDuff.Mode)	Blending mode used to apply the track tint.
android:typeface	setSwitchTypeface(Typeface)	Typeface (normal, sans, serif, monospace) for the text.

状态监听

Switch mSwitch = (android.widget.Switch) findViewById(R.id.setting_switch);
mSwitch.setOnCheckedChangeListener(new CompoundButton.OnCheckedChangeListener() {
    @Override
    public void onCheckedChanged(CompoundButton buttonView, boolean isChecked) {
        if(isChecked) {
            //选中时 do some thing
            Toast.makeText(MainActivity.this, "enabled",  Toast.LENGTH_SHORT).show();
        } else {
            //非选中时 do some thing
            Toast.makeText(MainActivity.this, "disabled", Toast.LENGTH_SHORT).show();
        }
    }
});

设置开关状态显示的文字

<Switch
    android:id="@+id/setting_switch"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:showText="true"
    android:textOff="关"
    android:textOn="开" />

设置最小显示宽度

android:switchMinWidth="50dp"
