SAP PS BAPI篇
从项目定义，到WBS，到网络，到活动，到物料组件
1项目定义
| 序号 | 业务分类 | 作用类别 | 名 | 主要作用 |
|---|---|---|---|---|
| 1 | 项目定义 | 查询类 | BAPI_PROJECTDEF_GETLIST | 生成选择标准的项目定义的清单 |
| 2 | 项目定义 | 查询类 | BAPI_PROJECTDEF_GETDETAIL | 读取项目定义的细节 |
| 3 | 项目定义 | 查询类 | BAPI_BUS2001_GETDATA | 项目定义的详细数据 |
| 4 | 项目定义 | 查询类 | BAPI_PROJECTDEF_EXISTENCECHECK | 检查对象是否存在 |
| 5 | 项目定义 | 查询类 | BAPI_BUS2001_GET_GUID_FROM_KEY | 从键值获取GUID |
| 6 | 项目定义 | 查询类 | BAPI_BUS2001_GET_KEY_FROM_GUID | 从 GUID 获取键值 |
| 7 | 项目定义 | 查询类 | BAPI_BUS2001_GET_STATUS | 读取BUS2001状态 (项目定义) |
| 8 | 项目定义 | 新建类 | BAPI_PROJECTDEF_CREATE | BAPI: 创建项目定义 |
| 9 | 项目定义 | 新建类 | BAPI_BUS2001_CREATE | 使用 BAPI来创建项目定义，得增强字段了 |
| 10 | 项目定义 | 修改类 | BAPI_PROJECTDEF_UPDATE | 使用 BAPI来修改项目定义信息 |
| 11 | 项目定义 | 修改类 | BAPI_BUS2001_CHANGE | 使用 BAPI来修改项目定义信息，可使用增强字段 |
| 12 | 项目定义 | 修改类 | BAPI_BUS2001_SET_STATUS | 设置项目状态 |
| 13 | 项目定义 | 修改类 | BAPI_BUS2001_DELETE | 删除项目 |
1.1 查询
1.1.1 BAPI_PROJECTDEF_GETLIST生成选择标准的项目定义的清单
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_PROJECTDEF_GETLIST
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZLGZBAPI_PROJECTDEF_GETLIST.
TABLEs:vbak,proj.
"第一步，定义变量
data: iv_max_rows type BAPIF4A-MAX_ROWS.
data: lt_PROJECT_DEFINITION_LIST TYPE TABLE of BAPIPREXP."定义的对外显示的信息
"第二步，定义range
"二种定义函数中range方法
*选项介绍：
*1.SIGN 值为I和E I包含 E是排除 一般使用I
*2.OPTION 如果HIGH 为空 为单值选择 有 EQ、NE、GT、LE、LT等逻辑操作 对于*的 CP包含 NP是排除
* 如果HIGH 不为空 为区间选择 有BT,NB可选
*3.LOW 低值
*4.HIGH 高值
"方法一，查找函数range的LOW和HIGH的类型，采用type RANGE OF 不过这种方式，已经跳到函数内部了，失去了函数封装的意义了,下面就是例如针对结构BAPI_2002_PD_RANGE的示例
*DATA lt_pspid TYPE RANGE OF PS_PSPID."项目定义ID
*DATA wa_pspid LIKE LINE OF lt_pspid.
" wa_pspid-sign = 'I'.
" wa_pspid-option = 'BT'.
" wa_pspid-low = 'PSCN02_2020001'.
" wa_pspid-high = 'PSCN02_2020003'.
" APPEND wa_pspid TO lt_pspid.
"方法二，直接用data引用封装好的range
data lt_pd_range type table of BAPI_2002_PD_RANGE."这个是封装的项目编号range
data wa_pd_range type BAPI_2002_PD_RANGE.
data lt_descr_range type table of BAPI_2002_DESCR_RANGE."这个是封装的项目描述range
data wa_descr_range type BAPI_2002_DESCR_RANGE.
"第三步，定义选择条件
SELECTION-SCREEN BEGIN OF BLOCK b1 WITH FRAME TITLE text-001.
PARAMETERS p_p1 TYPE BAPIF4A-MAX_ROWS .
SELECTION-SCREEN END OF BLOCK b1.
SELECTION-SCREEN BEGIN OF BLOCK b2 WITH FRAME TITLE text-001.
SELECT-OPTIONS: range0 for proj-PSPID DEFAULT '0' TO 'PSCN02_2020003' OPTION BT.
SELECT-OPTIONS: range1 FOR proj-POST1 DEFAULT 'ZCN02基建项目' TO 'ZCN02基建项目' OPTION BT.
"也可以根据定义的range结构定义选择条件
* SELECT-OPTIONS: range0 for wa_pd_range DEFAULT '0' TO 'PSCN02_2020003' OPTION BT.
* SELECT-OPTIONS: range1 FOR wa_descr_range DEFAULT 'ZCN02基建项目' TO 'ZCN02基建项目' OPTION BT.
SELECTION-SCREEN END OF BLOCK b2.
"第四步，将选择条件的值赋值给range
"屏幕选择的操作
iv_max_rows = p_p1."将输入显示行数赋值给参数1iv_max_rows
*wa_descr_range = range0. "直接将range0复制到wa_pd_range貌似把高的值无法复制过来，那就强行赋值了，给第一个range赋值
clear wa_pd_range.
wa_pd_range-sign = range0-sign.
wa_pd_range-option = range0-option.
wa_pd_range-low = range0-low.
wa_pd_range-high = range0-high.
APPEND wa_pd_range to lt_pd_range.
*wa_pd_range = range1. "直接将range0复制到wa_pd_range貌似把高的值无法复制过来，那就强行赋值了
clear wa_descr_range.
wa_descr_range-sign = range1-sign.
wa_descr_range-option = range1-option.
wa_descr_range-low = range1-low.
wa_descr_range-high = range1-high.
APPEND wa_descr_range to lt_descr_range.
"未赋值判断
IF p_p1 is INITIAL.
MESSAGE '最好选择行数，不然撑爆' type 'I'.
ENDIF.
"第五步，调用BAPI
"调用函数
CALL FUNCTION 'BAPI_PROJECTDEF_GETLIST'
EXPORTING
MAX_ROWS = iv_max_rows
* IMPORTING
* RETURN =
TABLES
project_definition_list = lt_PROJECT_DEFINITION_LIST
PROJECT_DEFINITION_RANGE = lt_pd_range
"DESCRIPTION_RANGE = lt_descr_range
.
"第六步，显示
CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY_LVC'
EXPORTING
* I_INTERFACE_CHECK = ' '
* I_BYPASSING_BUFFER =
* I_BUFFER_ACTIVE =
* I_CALLBACK_PROGRAM = ' '
* I_CALLBACK_PF_STATUS_SET = ' '
* I_CALLBACK_USER_COMMAND = ' '
* I_CALLBACK_TOP_OF_PAGE = ' '
* I_CALLBACK_HTML_TOP_OF_PAGE = ' '
* I_CALLBACK_HTML_END_OF_LIST = ' '
I_STRUCTURE_NAME = 'BAPIPREXP'
* I_BACKGROUND_ID = ' '
* I_GRID_TITLE =
* I_GRID_SETTINGS =
* IS_LAYOUT_LVC =
* IT_FIELDCAT_LVC =
* IT_EXCLUDING =
* IT_SPECIAL_GROUPS_LVC =
* IT_SORT_LVC =
* IT_FILTER_LVC =
* IT_HYPERLINK =
* IS_SEL_HIDE =
* I_DEFAULT = 'X'
* I_SAVE = ' '
* IS_VARIANT =
* IT_EVENTS =
* IT_EVENT_EXIT =
* IS_PRINT_LVC =
* IS_REPREP_ID_LVC =
* I_SCREEN_START_COLUMN = 0
* I_SCREEN_START_LINE = 0
* I_SCREEN_END_COLUMN = 0
* I_SCREEN_END_LINE = 0
* I_HTML_HEIGHT_TOP =
* I_HTML_HEIGHT_END =
* IT_ALV_GRAPHICS =
* IT_EXCEPT_QINFO_LVC =
* IR_SALV_FULLSCREEN_ADAPTER =
* IMPORTING
* E_EXIT_CAUSED_BY_CALLER =
* ES_EXIT_CAUSED_BY_USER =
TABLES
t_outtab = lt_PROJECT_DEFINITION_LIST
* EXCEPTIONS
* PROGRAM_ERROR = 1
* OTHERS = 2
.
IF sy-subrc <> 0.
* Implement suitable error handling here
ENDIF.

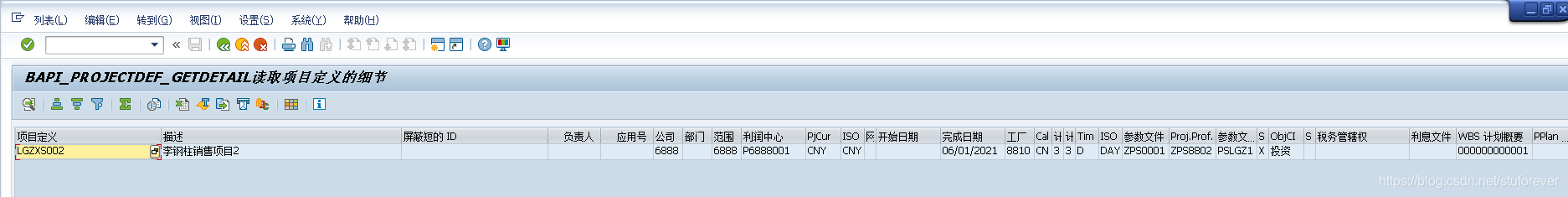

调用示例：
1.1.2 BAPI_PROJECTDEF_GETDETAIL读取项目定义的细节
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_PROJECTDEF_GETDETAIL
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZLGZBAPI_PROJECTDEF_GETDETAIL.
"第一步，定义变量
data: WA_PROJECT_DEFI type BAPI_PROJ_KEY-PROJECT_DEFI."项目定义编号
data: WA_PROJ_KEY_INT TYPE BAPI_PROJ_KEY-PROJ_KEY_INT."项目内部编号
data: LT_PROJECT_DEFINITION_EX type TABLE of BAPI_PROJECT_DEFINITION_EX."定义输出变量
data: WA_PROJECT_DEFINITION_EX type BAPI_PROJECT_DEFINITION_EX."定义输出变量
"第二步，定义屏幕参数
PARAMETERS p_p1 TYPE PROJ-PSPID.
PARAMETERS p_p2 TYPE PROJ-PSPNR.
"第三步，赋值
WA_PROJECT_DEFI = p_p1.
WA_PROJ_KEY_INT = p_p2.
"第四步，调用函数
CALL FUNCTION 'BAPI_PROJECTDEF_GETDETAIL'
EXPORTING
currentexternalproje = WA_PROJECT_DEFI
currentinternalproje = WA_PROJ_KEY_INT
IMPORTING
PROJECT_DEFINITION_STRU = WA_PROJECT_DEFINITION_EX
* RETURN =
.
APPEND WA_PROJECT_DEFINITION_EX TO LT_PROJECT_DEFINITION_EX.
"第五步，ALV输出
CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY_LVC'
EXPORTING
* I_INTERFACE_CHECK = ' '
* I_BYPASSING_BUFFER =
* I_BUFFER_ACTIVE =
* I_CALLBACK_PROGRAM = ' '
* I_CALLBACK_PF_STATUS_SET = ' '
* I_CALLBACK_USER_COMMAND = ' '
* I_CALLBACK_TOP_OF_PAGE = ' '
* I_CALLBACK_HTML_TOP_OF_PAGE = ' '
* I_CALLBACK_HTML_END_OF_LIST = ' '
I_STRUCTURE_NAME = 'BAPI_PROJECT_DEFINITION_EX'
* I_BACKGROUND_ID = ' '
* I_GRID_TITLE =
* I_GRID_SETTINGS =
* IS_LAYOUT_LVC =
* IT_FIELDCAT_LVC =
* IT_EXCLUDING =
* IT_SPECIAL_GROUPS_LVC =
* IT_SORT_LVC =
* IT_FILTER_LVC =
* IT_HYPERLINK =
* IS_SEL_HIDE =
* I_DEFAULT = 'X'
* I_SAVE = ' '
* IS_VARIANT =
* IT_EVENTS =
* IT_EVENT_EXIT =
* IS_PRINT_LVC =
* IS_REPREP_ID_LVC =
* I_SCREEN_START_COLUMN = 0
* I_SCREEN_START_LINE = 0
* I_SCREEN_END_COLUMN = 0
* I_SCREEN_END_LINE = 0
* I_HTML_HEIGHT_TOP =
* I_HTML_HEIGHT_END =
* IT_ALV_GRAPHICS =
* IT_EXCEPT_QINFO_LVC =
* IR_SALV_FULLSCREEN_ADAPTER =
* IMPORTING
* E_EXIT_CAUSED_BY_CALLER =
* ES_EXIT_CAUSED_BY_USER =
TABLES
t_outtab = LT_PROJECT_DEFINITION_EX
* EXCEPTIONS
* PROGRAM_ERROR = 1
* OTHERS = 2
.
IF sy-subrc <> 0.
* Implement suitable error handling here
ENDIF.
1.1.3 BAPI_BUS2001_GETDATA 项目定义的详细数据
再看看新版的项目定义，有哪些区别，可增强，自定义字段按需获取。至于扩展字段的查询稍后再演示。
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_BUS2001_GETDATA
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZLGZBAPI_BUS2001_GETDATA.
"第一步，定义变量
"输出和输入
DATA:
ld_e_project_definition TYPE BAPI_BUS2001_DETAIL ,
lt_e_project_definition TYPE STANDARD TABLE OF BAPI_BUS2001_DETAIL ,
ld_i_project_definition TYPE BAPI_BUS2001_DETAIL-PROJECT_DEFINITION ,
"返回变量
it_et_return TYPE STANDARD TABLE OF BAPIRET2 ,
wa_et_return LIKE LINE OF it_et_return,
"语言
ld_i_language TYPE BAPI_BUS2001_DETAIL-LANGU_ISO ,
"扩展的输入变量，扩展字段使用
it_extensionin TYPE STANDARD TABLE OF BAPIPAREX ,
wa_extensionin LIKE LINE OF it_extensionin,
"扩展的输出变量，扩展字段使用
it_extensionout TYPE STANDARD TABLE OF BAPIPAREX ,
wa_extensionout LIKE LINE OF it_extensionout.
"第二步，赋值
ld_i_project_definition = 'LGZXS002'.
"populate fields of struture and append to itab
append wa_et_return to it_et_return.
ld_i_language = 'ZH'.
"populate fields of struture and append to itab
append wa_extensionin to it_extensionin.
"populate fields of struture and append to itab
append wa_extensionout to it_extensionout.
.
"第三步，调用函数及lvc展示
CALL FUNCTION 'BAPI_BUS2001_GETDATA'
EXPORTING
i_project_definition = ld_i_project_definition
* i_language = ld_i_language
IMPORTING
e_project_definition = ld_e_project_definition
* TABLES
* et_return = it_et_return
* extensionin = it_extensionin
* extensionout = it_extensionout
. " BAPI_BUS2001_GETDATA
IF SY-SUBRC EQ 0.
APPEND ld_e_project_definition to lt_e_project_definition.
CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY_LVC'
EXPORTING
* I_INTERFACE_CHECK = ' '
* I_BYPASSING_BUFFER =
* I_BUFFER_ACTIVE =
* I_CALLBACK_PROGRAM = ' '
* I_CALLBACK_PF_STATUS_SET = ' '
* I_CALLBACK_USER_COMMAND = ' '
* I_CALLBACK_TOP_OF_PAGE = ' '
* I_CALLBACK_HTML_TOP_OF_PAGE = ' '
* I_CALLBACK_HTML_END_OF_LIST = ' '
I_STRUCTURE_NAME = 'BAPI_BUS2001_DETAIL'
* I_BACKGROUND_ID = ' '
* I_GRID_TITLE =
* I_GRID_SETTINGS =
* IS_LAYOUT_LVC =
* IT_FIELDCAT_LVC =
* IT_EXCLUDING =
* IT_SPECIAL_GROUPS_LVC =
* IT_SORT_LVC =
* IT_FILTER_LVC =
* IT_HYPERLINK =
* IS_SEL_HIDE =
* I_DEFAULT = 'X'
* I_SAVE = ' '
* IS_VARIANT =
* IT_EVENTS =
* IT_EVENT_EXIT =
* IS_PRINT_LVC =
* IS_REPREP_ID_LVC =
* I_SCREEN_START_COLUMN = 0
* I_SCREEN_START_LINE = 0
* I_SCREEN_END_COLUMN = 0
* I_SCREEN_END_LINE = 0
* I_HTML_HEIGHT_TOP =
* I_HTML_HEIGHT_END =
* IT_ALV_GRAPHICS =
* IT_EXCEPT_QINFO_LVC =
* IR_SALV_FULLSCREEN_ADAPTER =
* IMPORTING
* E_EXIT_CAUSED_BY_CALLER =
* ES_EXIT_CAUSED_BY_USER =
TABLES
t_outtab = lt_e_project_definition
* EXCEPTIONS
* PROGRAM_ERROR = 1
* OTHERS = 2
.
IF sy-subrc <> 0.
* Implement suitable error handling here
ENDIF.
ENDIF.
1.1.4 其他类查询
| 序号 | 业务分类 | 作用类别 | 名 | 主要作用 |
|---|---|---|---|---|
| 4 | 项目定义 | 查询类 | BAPI_PROJECTDEF_EXISTENCECHECK | 检查对象是否存在 |
| 5 | 项目定义 | 查询类 | BAPI_BUS2001_GET_GUID_FROM_KEY | 从键值获取GUID |
| 6 | 项目定义 | 查询类 | BAPI_BUS2001_GET_KEY_FROM_GUID | 从 GUID 获取键值 |
| 7 | 项目定义 | 查询类 | BAPI_BUS2001_GET_STATUS | 读取BUS2001状态 (项目定义) |
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_BUS2001_GET_STATUS
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZLGZBAPI_BUS2001_GET_STATUS.
DATA:
ld_return TYPE BAPIRETURN1 ,
ld_internalitemnumber TYPE BAPI_PRPS_KEY-INTERNALITEMNUMBER ,
ld_externalitemnumber TYPE BAPI_PRPS_KEY-EXTERNALITEMNUMBER .
ld_externalitemnumber = 'LGZXS00212'.
ld_internalitemnumber = ''.
CALL FUNCTION 'BAPI_PS_INITIALIZATION'.
CALL FUNCTION 'BAPI_PROJECT_EXISTENCECHECK'
EXPORTING
internalitemnumber = ld_internalitemnumber
externalitemnumber = ld_externalitemnumber
IMPORTING
return = ld_return
. " BAPI_PROJECT_EXISTENCECHECK
IF SY-SUBRC EQ 0.
IF ld_return is INITIAL.
WRITE:/ '存在该WBS，可以获取该WBS的状态了：'.
ENDIF.
ENDIF.
"第一步：定义变量
DATA:
ld_project_definition TYPE BAPIPR-PROJECT_DEFINITION ,"项目定义输入条件
it_e_system_status TYPE STANDARD TABLE OF BAPI_SYSTEM_STATUS ,"系统状态定义
wa_e_system_status LIKE LINE OF it_e_system_status,
it_e_user_status TYPE STANDARD TABLE OF BAPI_USER_STATUS ,"用户状态定义
wa_e_user_status LIKE LINE OF it_e_user_status.
"第二步：初始化变量
ld_project_definition = 'LGZXS002'.
clear ld_return.
CALL FUNCTION 'BAPI_PS_INITIALIZATION'.
CALL FUNCTION 'BAPI_BUS2001_GET_STATUS'
EXPORTING
project_definition = ld_project_definition
IMPORTING
return = ld_return
TABLES
e_system_status = it_e_system_status
e_user_status = it_e_user_status
. " BAPI_BUS2001_GET_STATUS
IF SY-SUBRC EQ 0.
LOOP AT it_e_system_status into wa_e_system_status.
IF wa_e_system_status is not INITIAL.
WRITE:/ '输出系统状态：',wa_e_system_status-SYSTEM_STATUS.
ENDIF.
ENDLOOP.
LOOP AT it_e_user_status into wa_e_user_status.
IF wa_e_user_status is not INITIAL.
WRITE:/ '输出用户状态：',wa_e_user_status-USER_STATUS.
ENDIF.
ENDLOOP.
ENDIF.
1.2 新增
1.2.1 BAPI_PROJECTDEF_CREATE旧的不可以增强的新增
*根据给出的流水号创建项目
DATA:ls_stru TYPE bapi_project_definition,
lt_return TYPE TABLE OF bapi_meth_message WITH HEADER LINE,
p_message type char1.
*FS上只标注了项目定义、描述、业务范围、成本控制范围、公司代码、工厂、负责人编号
PARAMETERS p_char1 TYPE char40."项目定义
PARAMETERS p_char2 TYPE char40."项目描述
PARAMETERS p_char3 TYPE PROJ-VBUKR."公司代码
PARAMETERS p_char4 TYPE PROJ-VKOKR."成本控制范围
PARAMETERS p_char5 TYPE PROJ-PROFL."项目参数文件
PARAMETERS p_char6 TYPE PROJ-WERKS."工厂
PARAMETERS p_char7 TYPE PROJ-PRCTR."利润中心
ls_stru-project_definition = p_char1.
ls_stru-description = p_char2.
ls_stru-comp_code = p_char3.
ls_stru-controlling_area = p_char4.
ls_stru-project_profile = p_char5.
ls_stru-plant = p_char6.
ls_stru-PROFIT_CTR = p_char7 .
CALL FUNCTION 'BAPI_PROJECTDEF_CREATE'
EXPORTING
project_definition_stru = ls_stru
* IMPORTING
* RETURN =
TABLES
e_message_table = lt_return.
READ TABLE lt_return WITH KEY message_type = 'E'.
IF sy-subrc EQ 0.
p_message = 'E'.
MESSAGE '创建失败' TYPE 'S'.
ELSE.
p_message = 'S'.
CALL FUNCTION 'BAPI_TRANSACTION_COMMIT'
EXPORTING
wait = 'X'.
MESSAGE '创建成功' TYPE 'S'.
ENDIF.
1.2.2 BAPI_BUS2001_CREATE项目定义新增，可扩展字段
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_BUS2001_CREATE
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT zlgzbapi_bus2001_create.
DATA :is_proj TYPE proj.
"第一步，创建变量
DATA:ls_return TYPE bapi_meth_message,
lt_stru_proj_define TYPE TABLE OF bapi_bus2001_new,
wa_stru_proj_define TYPE bapi_bus2001_new,
lt_message TYPE TABLE OF bapiret2,
wa_message TYPE bapiret2.
*FS上只标注了项目定义、描述、业务范围、成本控制范围、公司代码、工厂、负责人编号
"第二步，画参数
"MOVE-CORRESPONDING ld_e_project_definition TO wa_stru_proj_define.
PARAMETERS p_char1 TYPE char40 ."项目定义
PARAMETERS p_char2 TYPE char40."项目描述
PARAMETERS p_char3 TYPE proj-vbukr DEFAULT '6888'."公司代码
PARAMETERS p_char4 TYPE proj-vkokr DEFAULT '6888'."成本控制范围
PARAMETERS p_char5 TYPE proj-profl DEFAULT 'ZPS8802'."项目参数文件
PARAMETERS p_char6 TYPE bapi_bus2001_new-plant DEFAULT '8810'."工厂
PARAMETERS p_char7 TYPE bapi_bus2001_new-profit_ctr DEFAULT 'P6888001'."利润中心
PARAMETERS p_char8 TYPE bapi_bus2001_new-start DEFAULT '20210208'."开始日期
PARAMETERS p_char9 TYPE bapi_bus2001_new-finish DEFAULT '20210828'."结束日期
wa_stru_proj_define-project_definition = p_char1.
wa_stru_proj_define-description = p_char2.
wa_stru_proj_define-company_code = p_char3.
wa_stru_proj_define-controlling_area = p_char4.
wa_stru_proj_define-project_profile = p_char5.
wa_stru_proj_define-plant = p_char6.
wa_stru_proj_define-profit_ctr = p_char7 .
wa_stru_proj_define-start = p_char8 .
wa_stru_proj_define-finish = p_char9 .
"wa_stru_proj_define-time_unit = ''.
"第三步，调用创建
CALL FUNCTION 'BAPI_PS_INITIALIZATION'.
CALL FUNCTION 'BAPI_BUS2001_CREATE'
EXPORTING
i_project_definition = wa_stru_proj_define
TABLES
et_return = lt_message
* EXTENSIONIN =
* EXTENSIONOUT =
.
"第四步，做预提交，判断消息是否有A或者E的，表示是异常
LOOP AT lt_message INTO wa_message WHERE type CA 'AE'.
MESSAGE ID wa_message-id TYPE wa_message-type NUMBER wa_message-number
INTO wa_message-message
WITH wa_message-message_v1 wa_message-message_v2
wa_message-message_v3 wa_message-message_v4.
ENDLOOP.
"如果loop循环中遍历到A或者E的消息，则subrc是0，执行函数，重新初始化，然后下面check后的subrc，就自动退出主程序了
IF sy-subrc EQ 0.
CALL FUNCTION 'PS_FLAG_INIT_GLOBAL_FLAGS'.
CALL FUNCTION 'PS_FLAG_SET_GLOBAL_FLAGS'
EXPORTING
i_precommit_ok = 'Y'.
ENDIF.
"如果subrc是非0，表示未检查到loop循环有A或者E的消息，则执行下面函数来做预提交
CHECK sy-subrc NE 0.
CALL FUNCTION 'BAPI_PS_PRECOMMIT'
TABLES
et_return = lt_message.
"第五步，正式提交
LOOP AT lt_message INTO wa_message WHERE type CA 'AE'.
MESSAGE ID wa_message-id TYPE wa_message-type NUMBER wa_message-number
INTO wa_message-message
WITH wa_message-message_v1 wa_message-message_v2
wa_message-message_v3 wa_message-message_v4.
ENDLOOP.
"同理，如果预提交后，有A或者E的消息则做回滚，否则做正式提交
IF sy-subrc EQ 0.
CALL FUNCTION 'BAPI_TRANSACTION_ROLLBACK'
IMPORTING
return = lt_message.
CALL FUNCTION 'PS_FLAG_INIT_GLOBAL_FLAGS'.
CALL FUNCTION 'PS_FLAG_SET_GLOBAL_FLAGS'
EXPORTING
i_precommit_ok = 'Y'.
ELSE.
CALL FUNCTION 'BAPI_TRANSACTION_COMMIT'
EXPORTING
wait = 'X'
IMPORTING
return = wa_message.
* 项目定义创建成功
ENDIF.

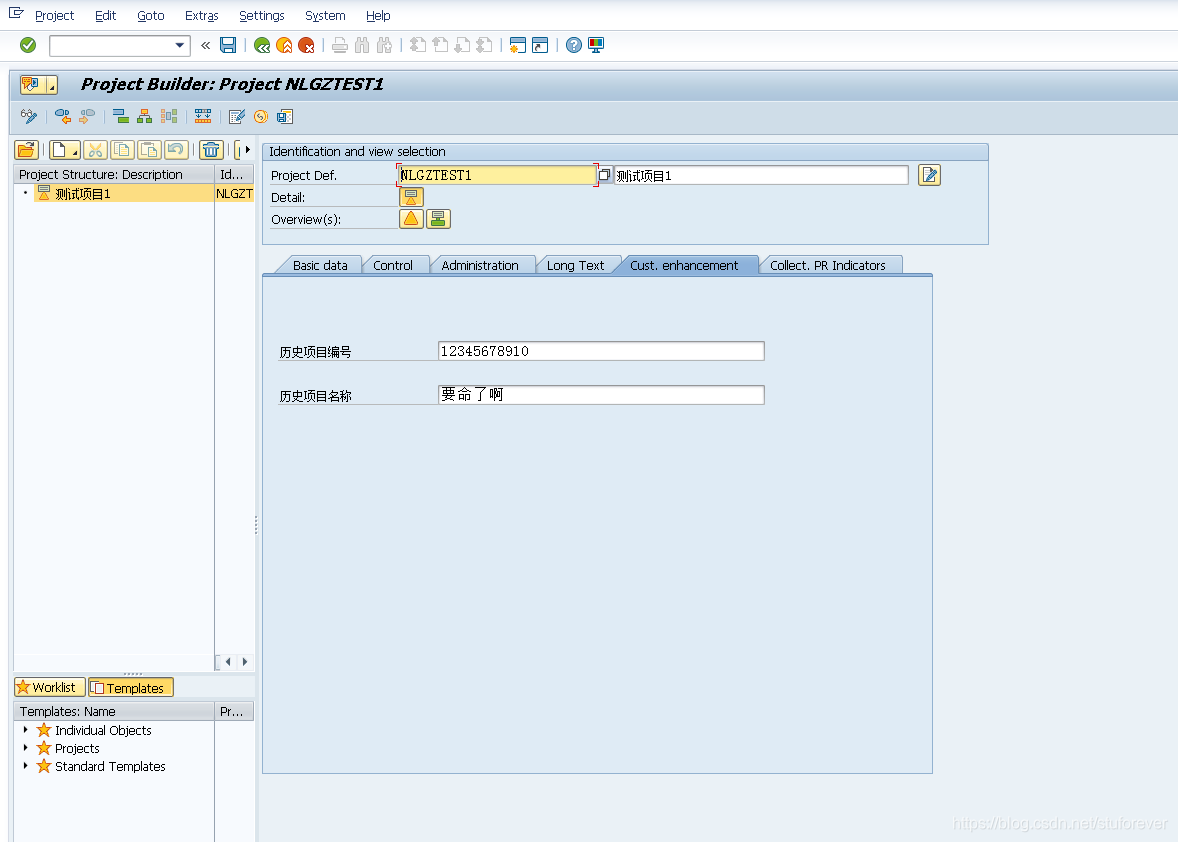

1.2.3 项目定义屏幕增强CMOD，添加历史项目编号和历史项目名称

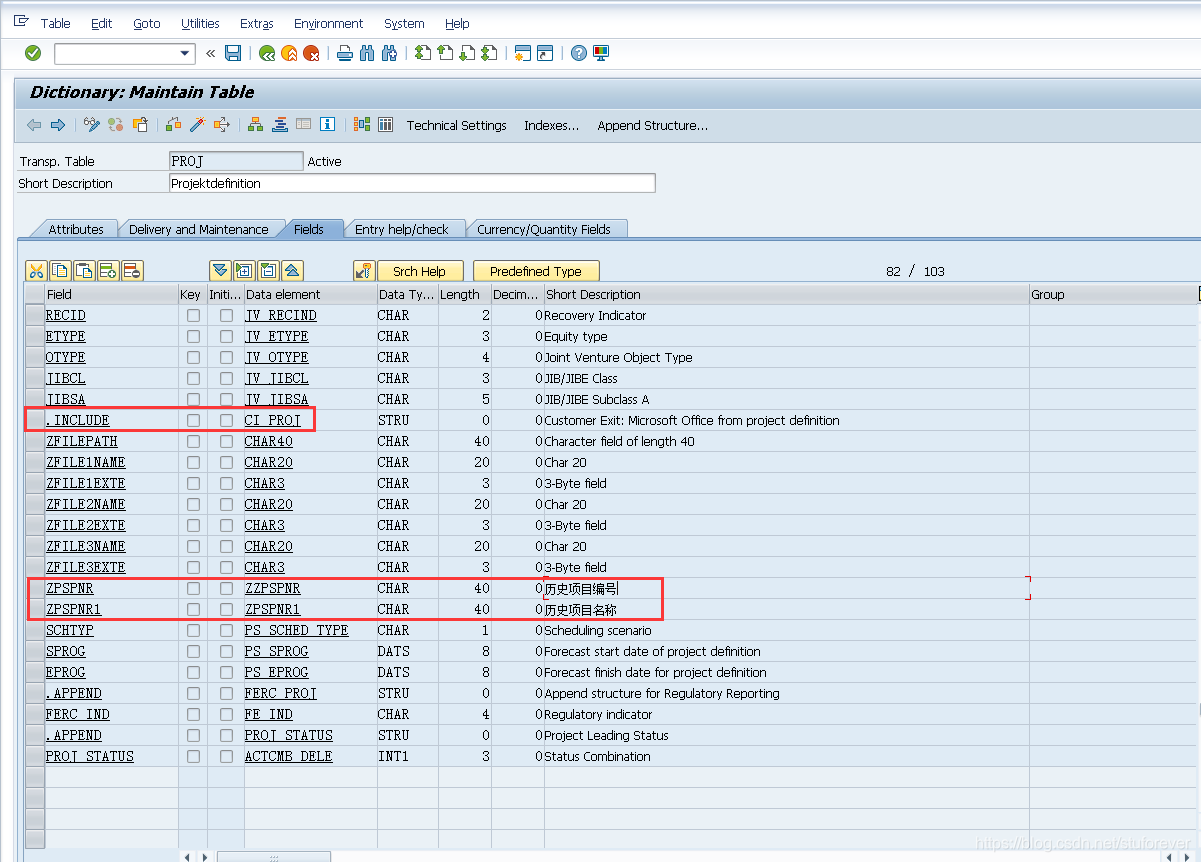

1.结构增强，在CI_PROJ

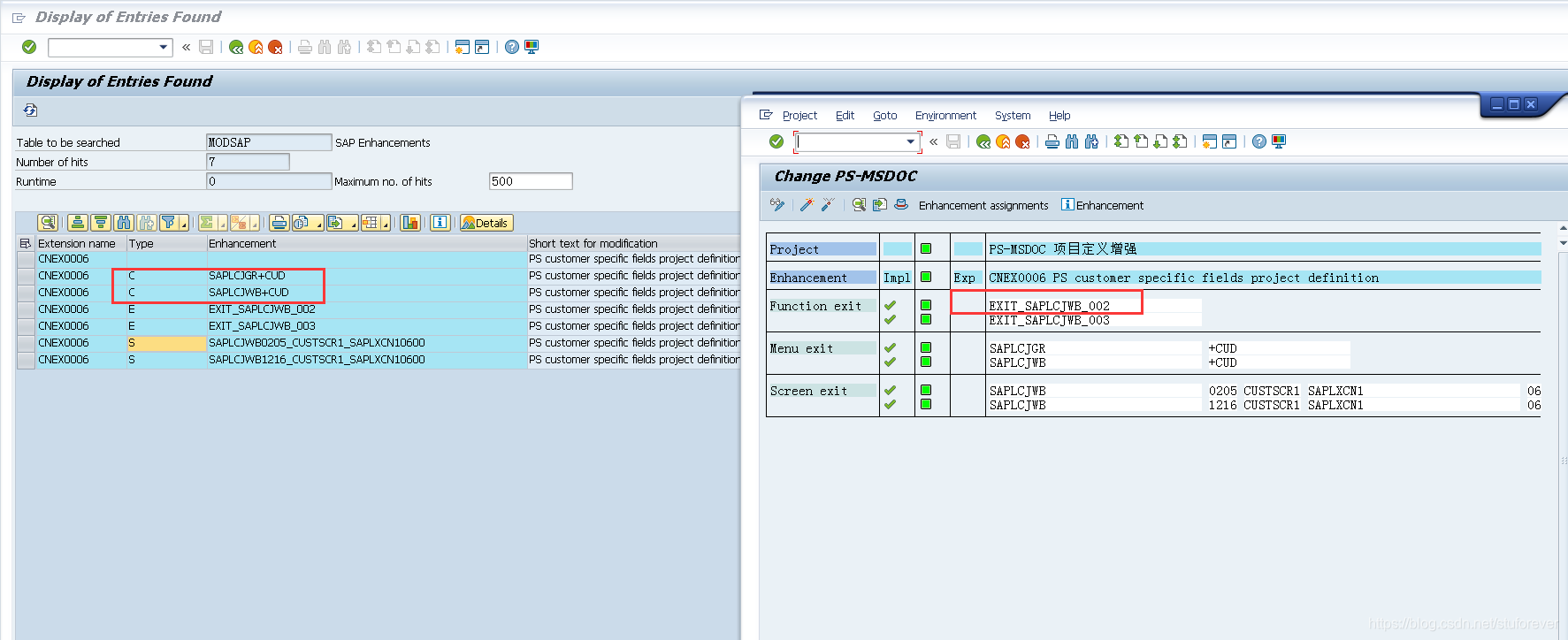

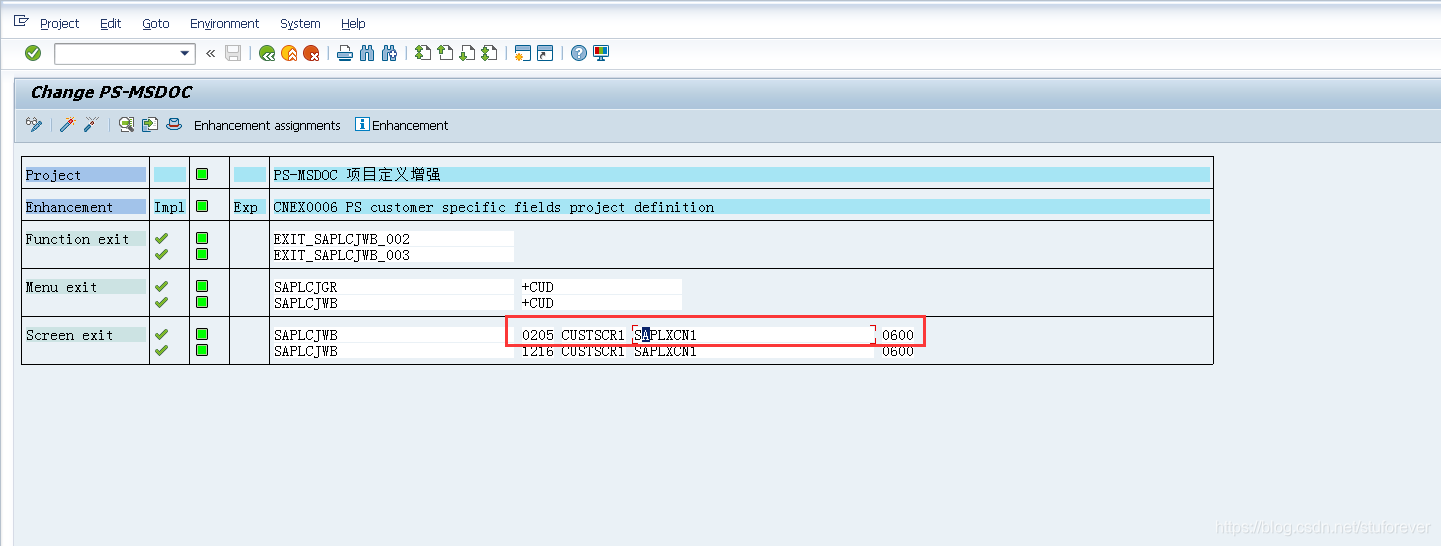

2.查找增强，工具或者小程序

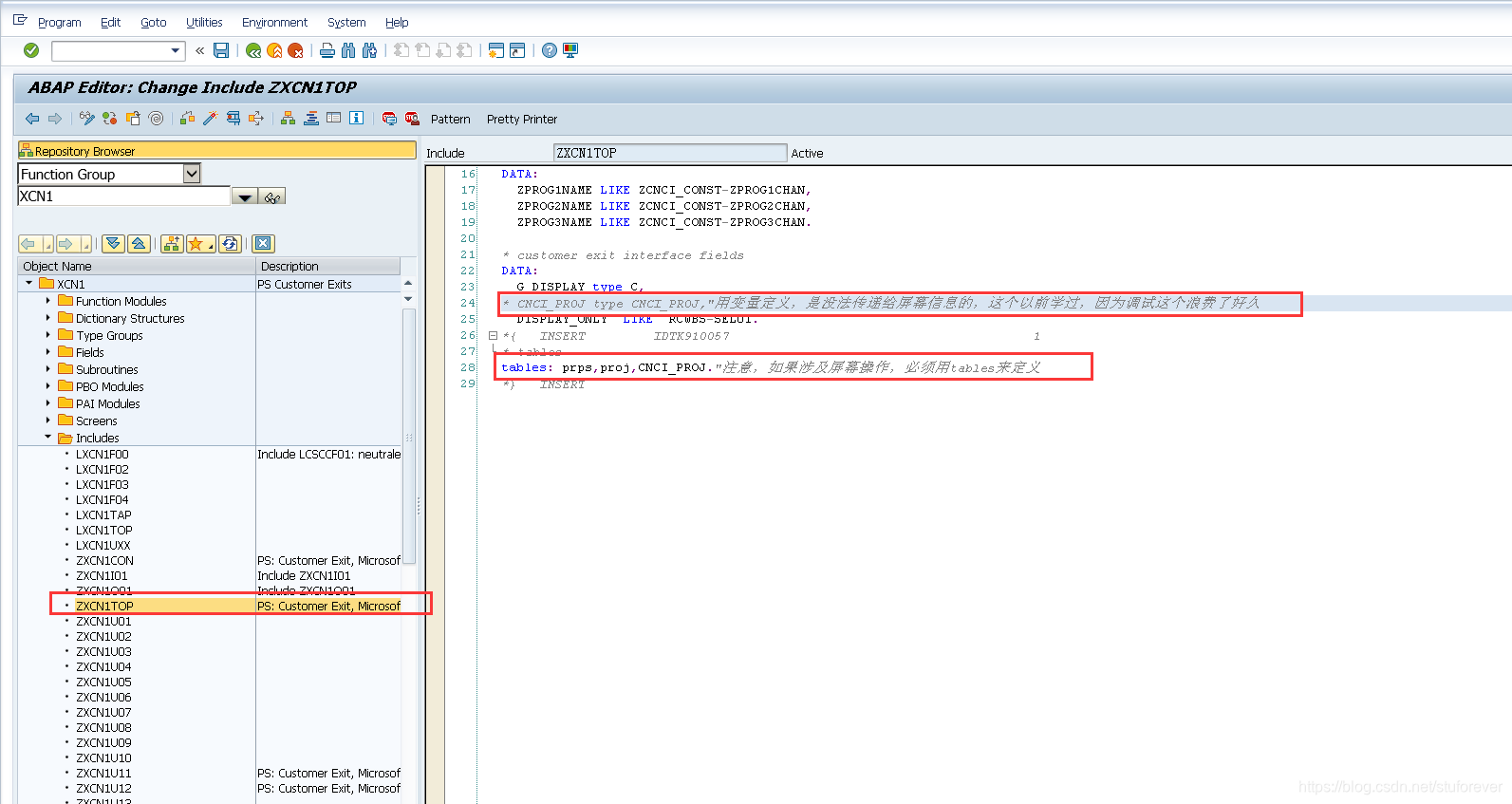

3.定义全局变量，为了方便跟CNCI_PROJ_EXP和CNCI_PROJ_IMP进行交互

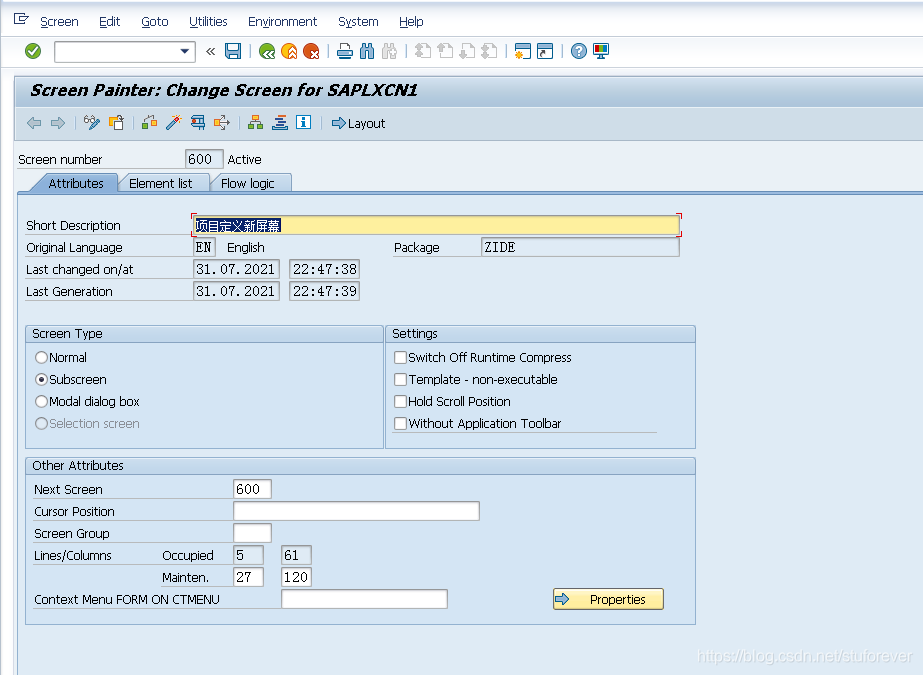

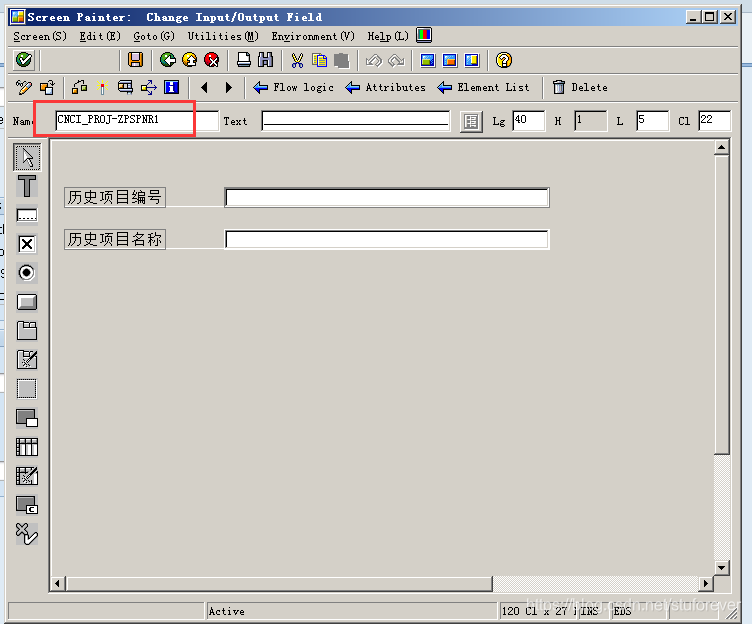

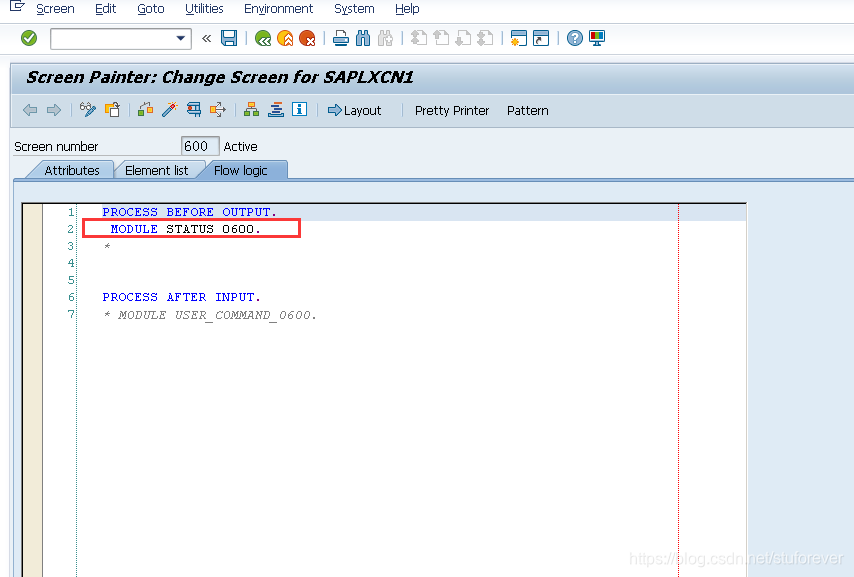

4.定义屏幕

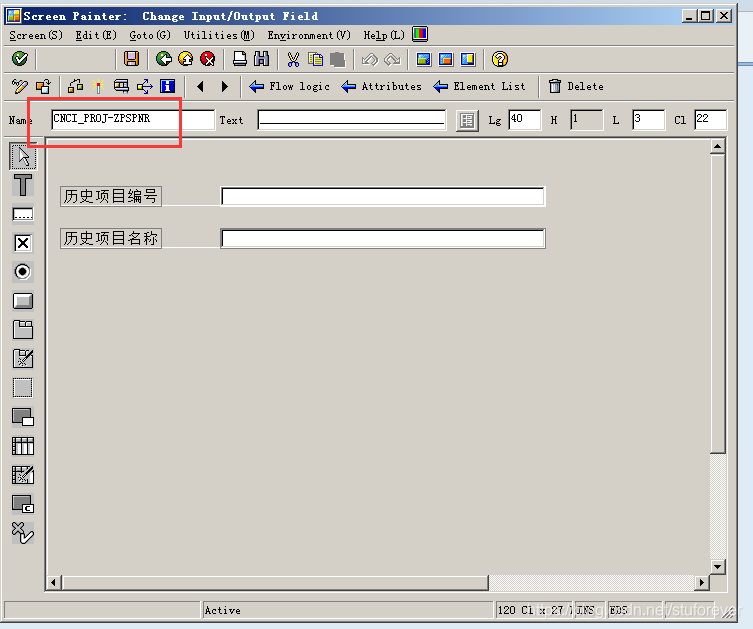

定义两个字段

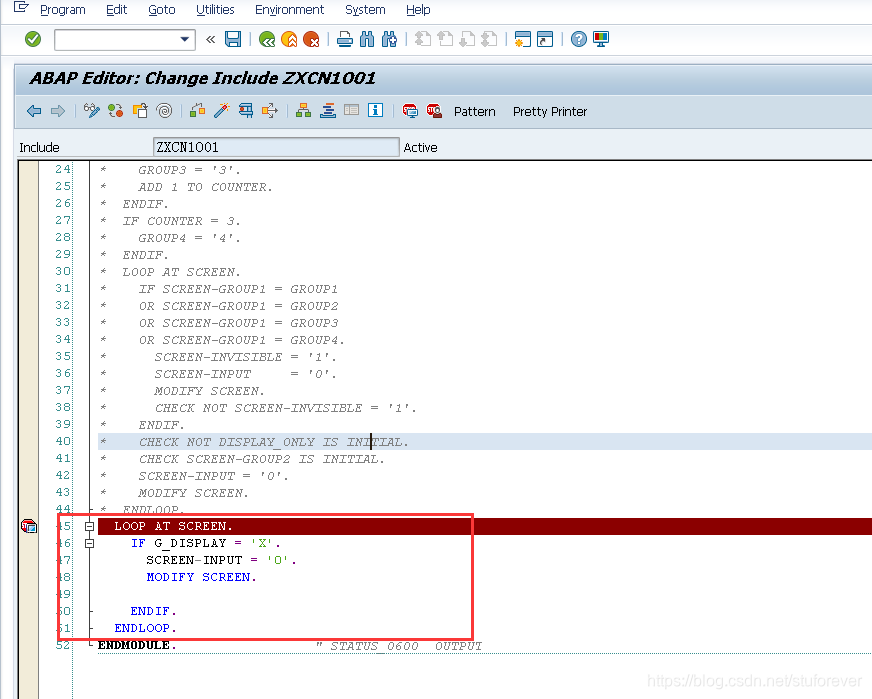

在显示之前，要和项目定义的修改按钮保持同步，如果项目可以修改，那么这两个字段才可以维护

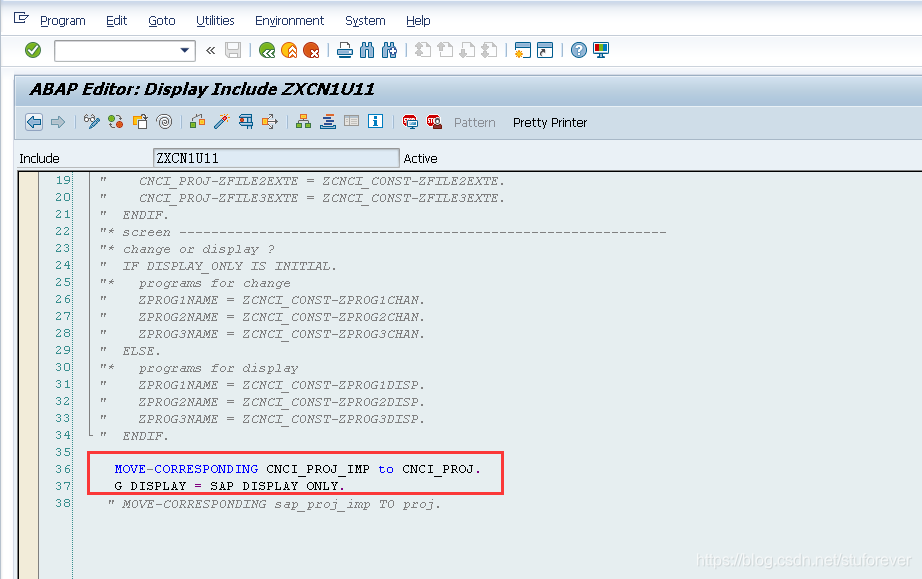

5.传递输入信息到变量中。
此处发现，EXIT_SAPLCJWB_002有3个输入变量，分别为proj、CNCI_PROJ_IMP和SAP_DISPLAY_ONLY
其中proj是把整个项目信息都可以搞过来，如果咱们只处理增强信息的话，完全可以用CNCI_PROJ_IMP变量。
SAP_DISPLAY_ONLY代表的时当前项目总的状态，可修改还是只读。
那么我们改程序，把输入的扩展字段信息放到CNCI_PROJ中，同时把是否只读的状态放到G_DISPLAY中

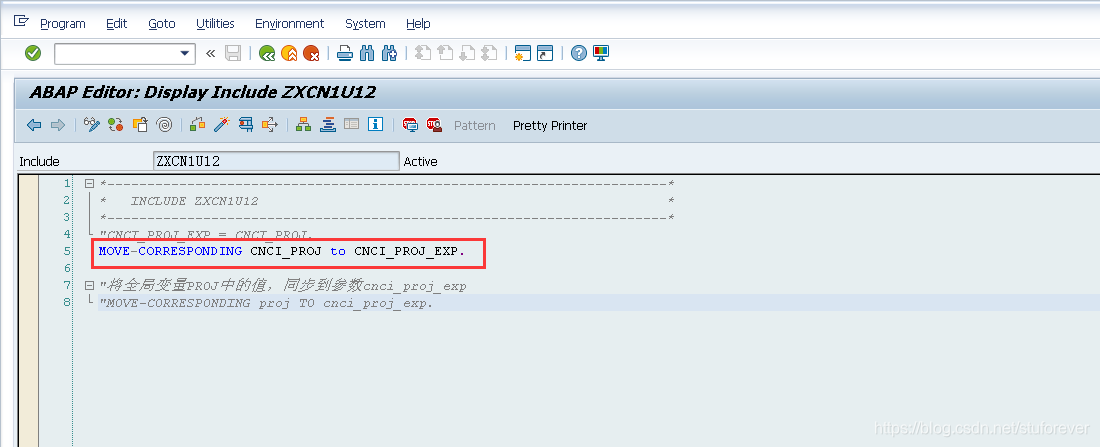

6.更新变量到输出

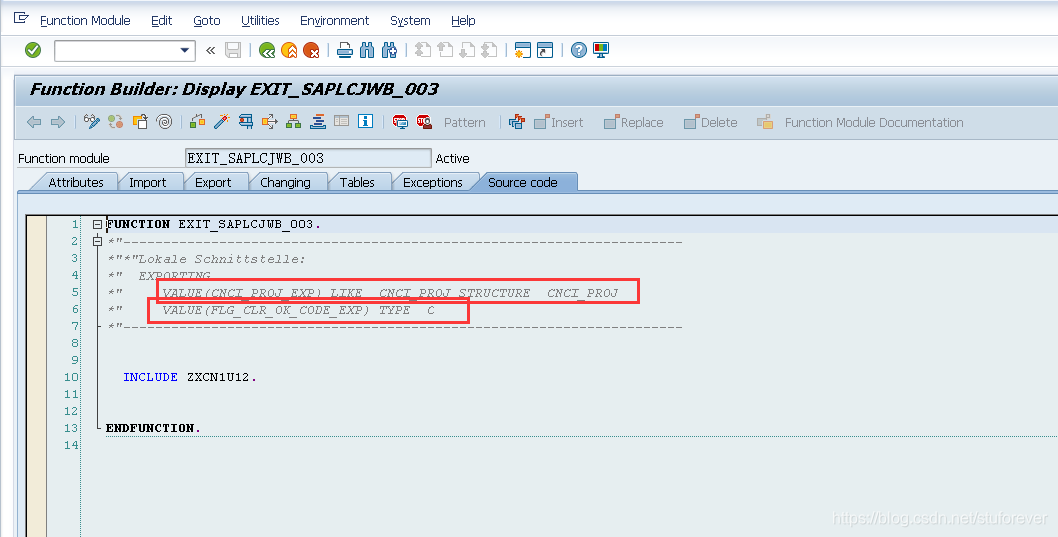

此处发现，EXIT_SAPLCJWB_003有2个输出变量，分别为CNCI_PROJ_EXP和FLG_CLR_OK_CODE_EXP（屏幕的操作对象）
把更新后的CNCI_PROJ结果传递回CNCI_PROJ_EXP，用来保存使用。

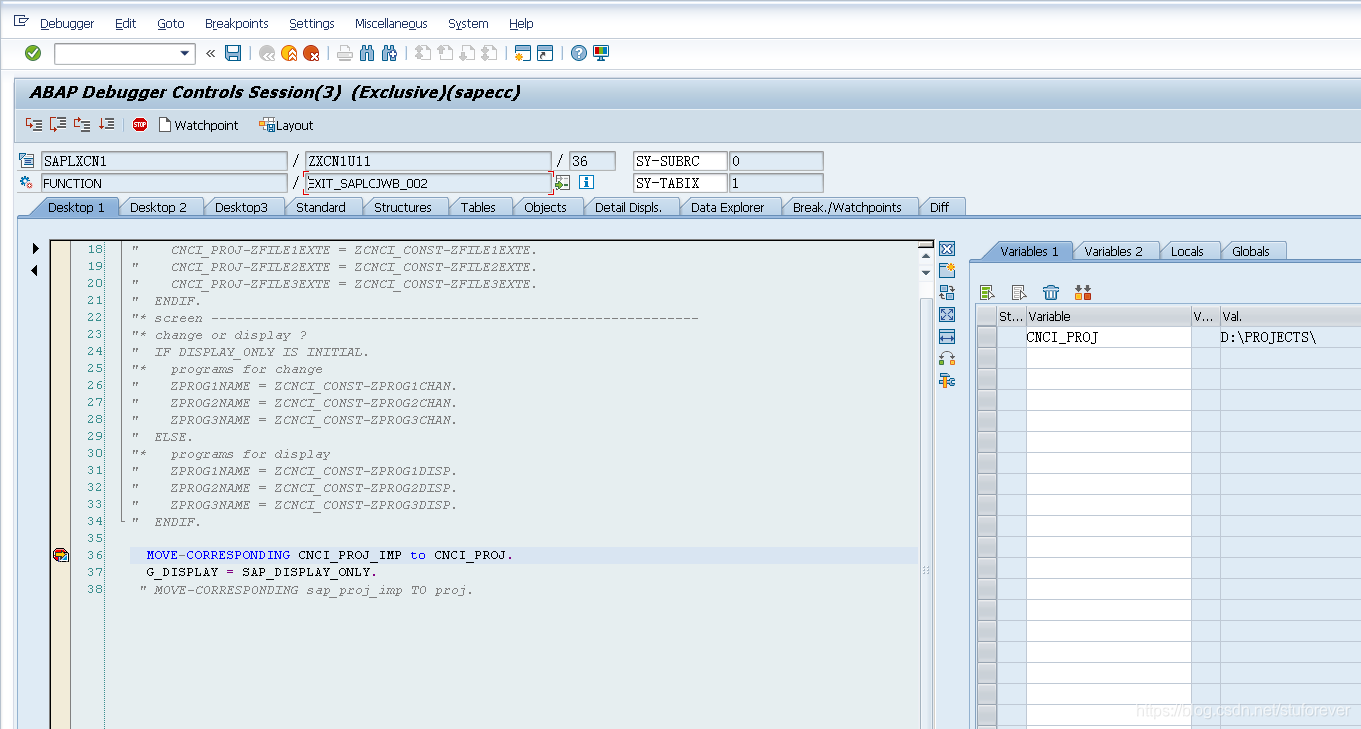

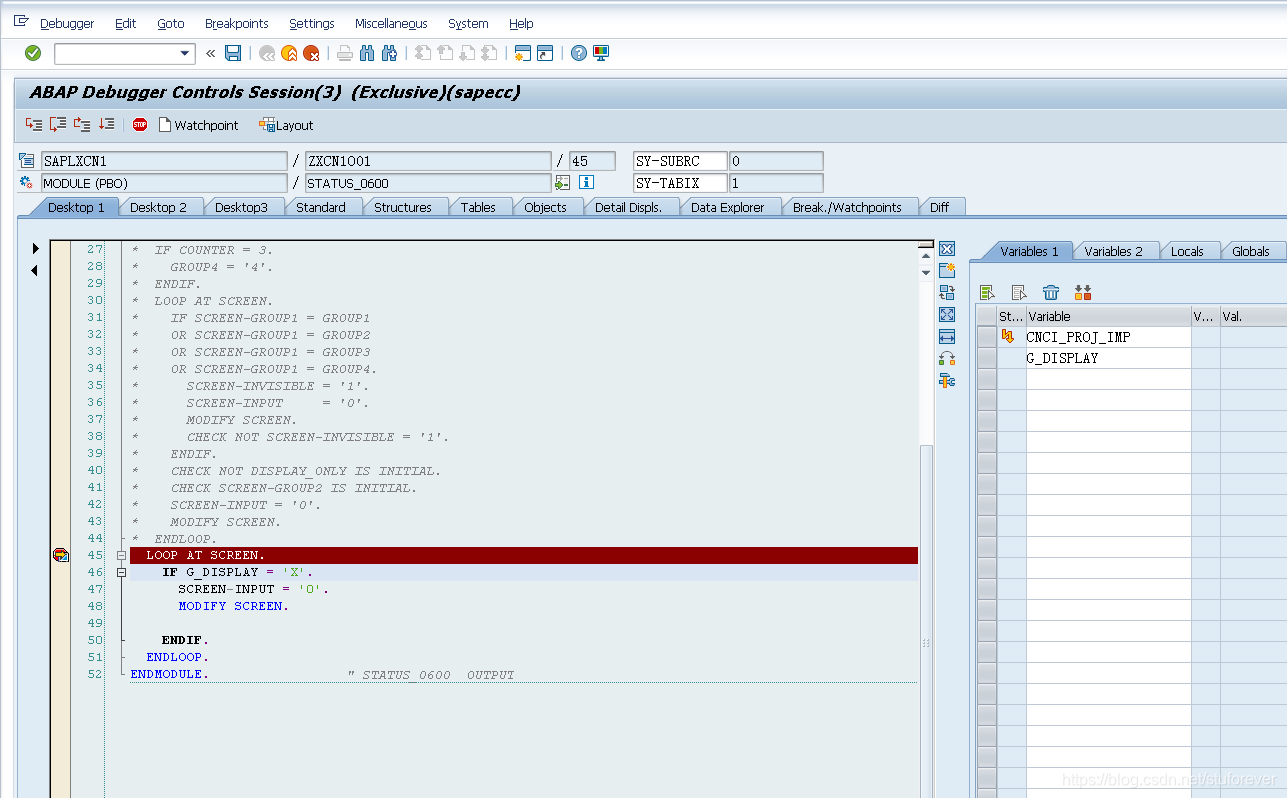

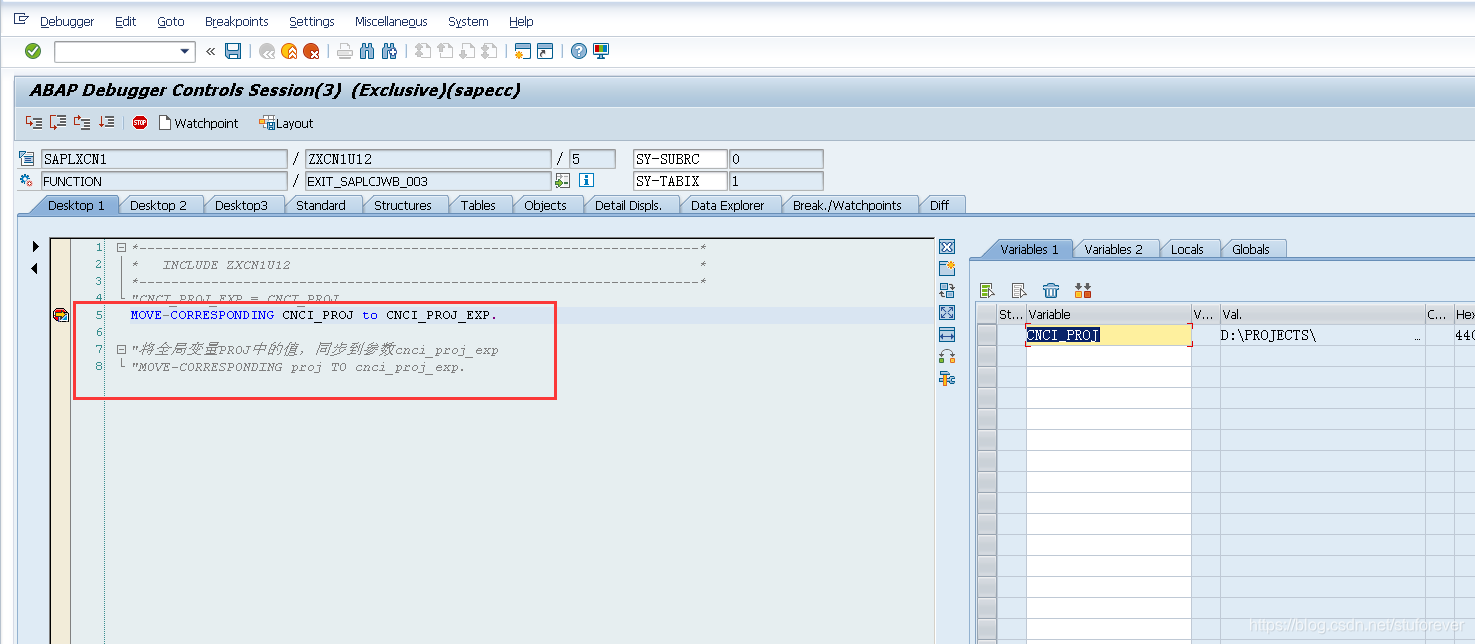

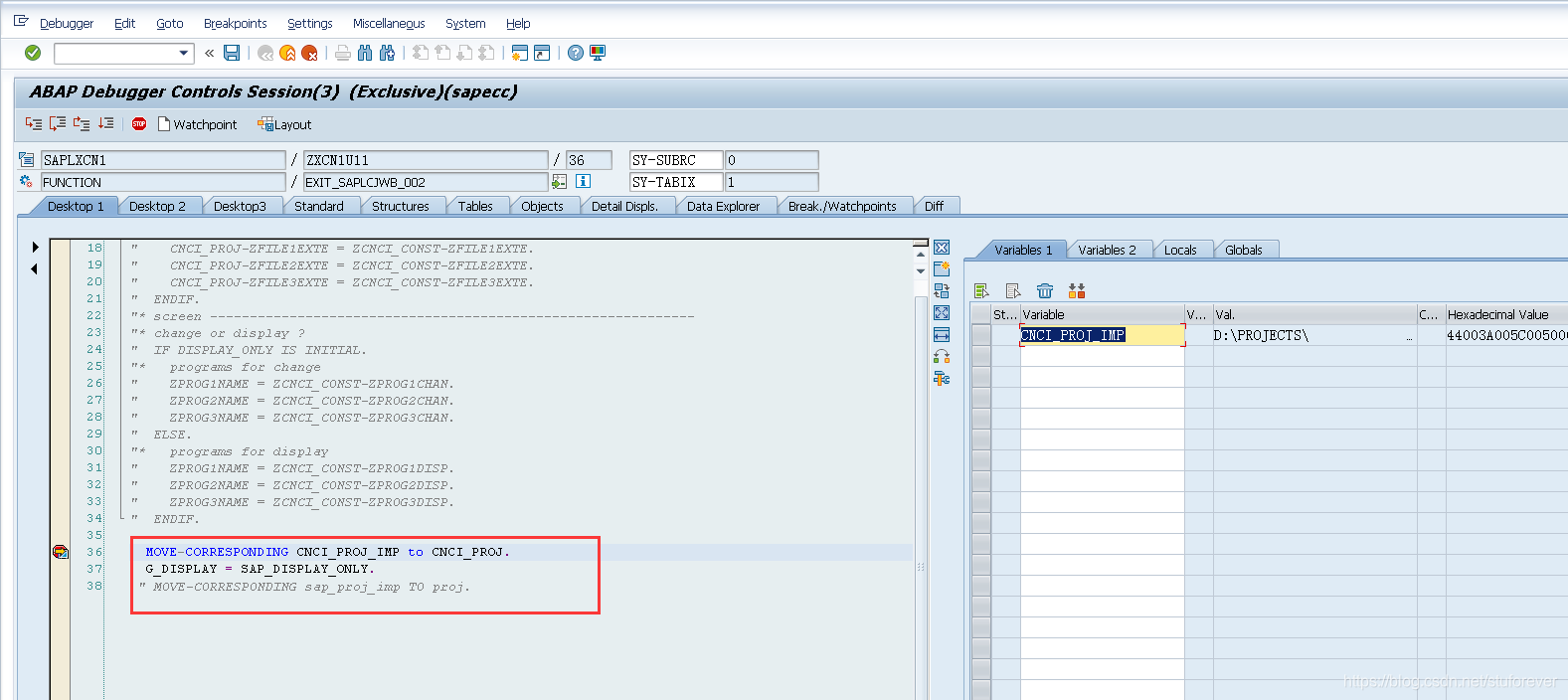

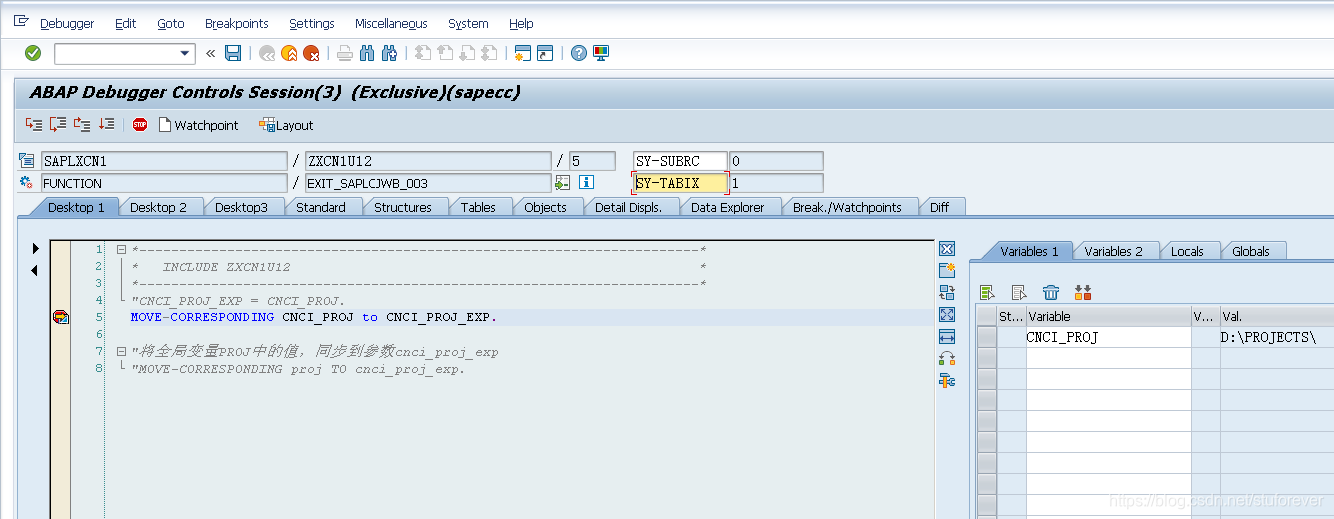

7~~~~~~设置几个断点，看一下整个添加结构的调用过程：
刚进入客户增强屏幕时，断到EXIT_SAPLCJWB_002，读取数据库的数据到屏幕
继续执行，断到屏幕显示前
已经读取到了
更改字段信息后回车，断在了EXIT_SAPLCJWB_003，将信息更新，类似于保存，但不保存
同时回车为了显示肯定也断在EXIT_SAPLCJWB_002
保存时断在EXIT_SAPLCJWB_003，执行新数据更新数据库
1.2.4 BAPI增强添加历史项目编号和历史项目名称

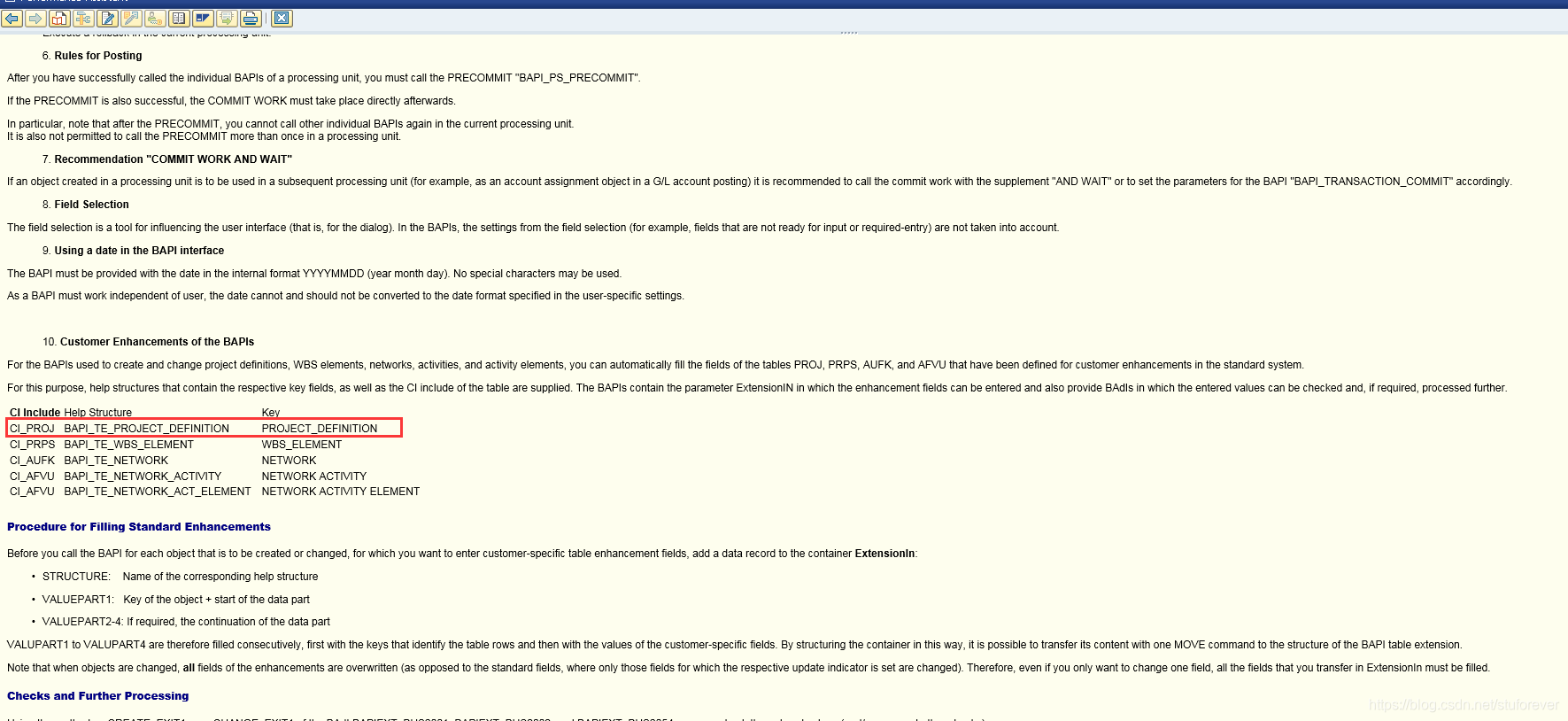

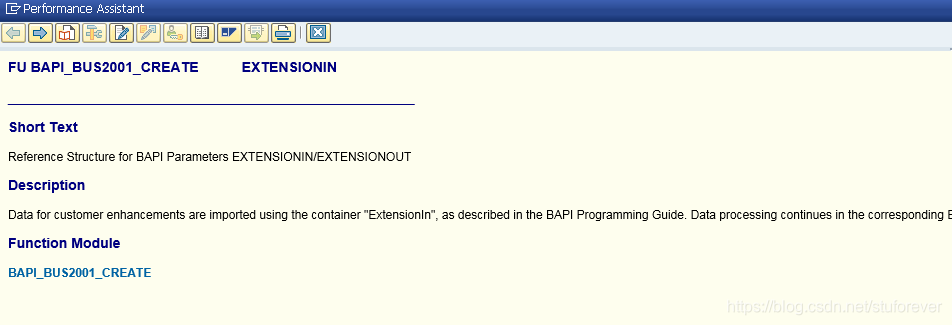

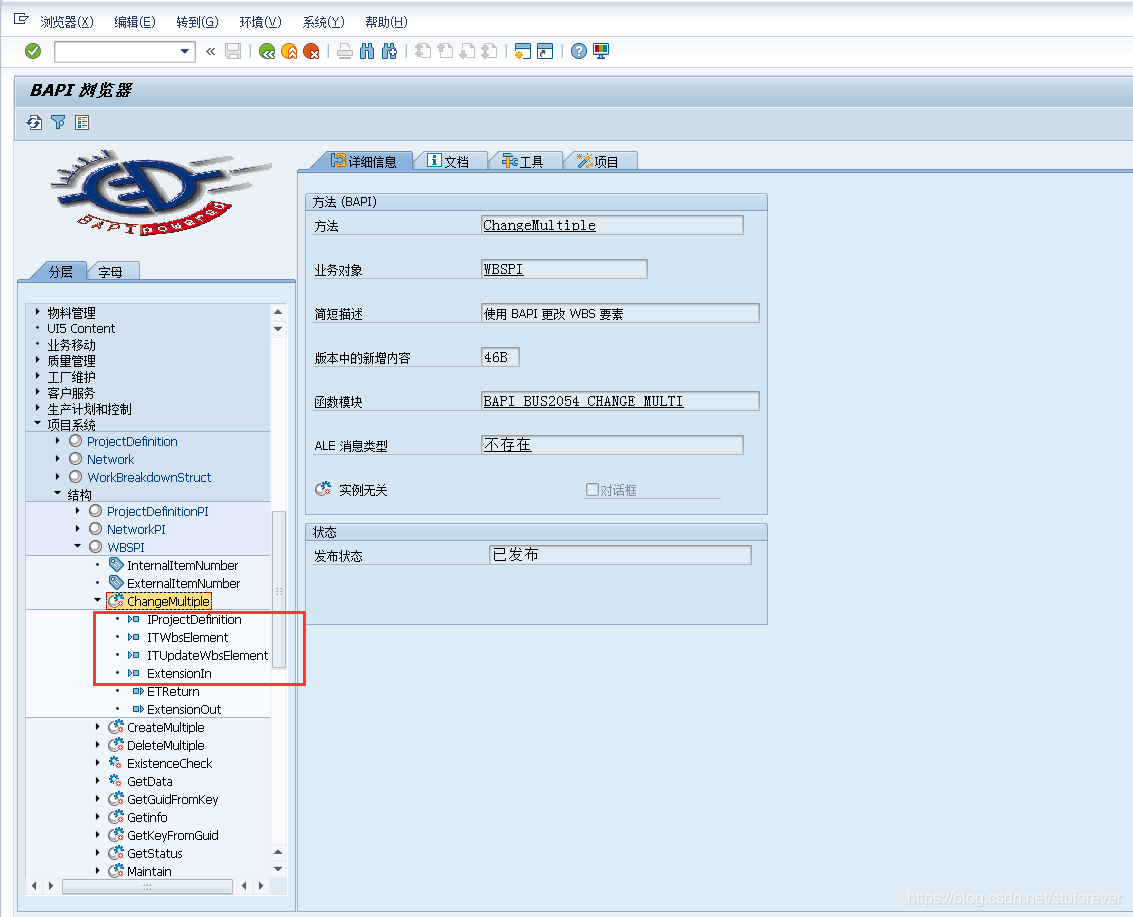

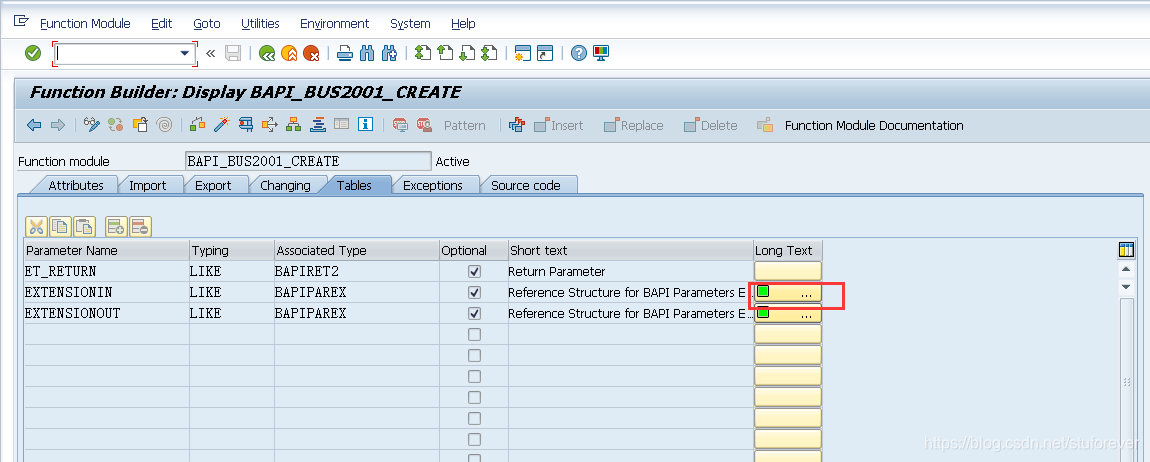

如果需要添加扩展字段，首先要找到扩展结构，项目定义的扩展结构是BAPI_TE_PROJECT_DEFINITION，一般可以通过函数找到
比原先代码多的部分，贴出来
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_BUS2001_CREATE
*&
*&---------------------------------------------------------------------*
*&
*&
*&---------------------------------------------------------------------*
REPORT ZLGZBAPI_BUS2001_CREATE.
DATA :is_proj TYPE proj.
"第一步，创建变量
DATA:
"输入参数，项目定义
lt_stru_proj_define TYPE TABLE OF bapi_bus2001_new,
wa_stru_proj_define TYPE bapi_bus2001_new,
"输入参数，扩展容器
lt_EXTENSIONIN type STANDARD TABLE OF BAPIPAREX,
wa_EXTENSIONIN type BAPIPAREX,
"输入参数，扩展字段
wa_BAPI_TE_PROJECT_DEFINITION type BAPI_TE_PROJECT_DEFINITION,"这是多出来的,要定义扩充的结构
"返回参数
ls_return TYPE bapi_meth_message,
it_BAPIRET2 TYPE TABLE OF bapiret2,
wa_bapiret2 TYPE bapiret2.
*FS上只标注了项目定义、描述、业务范围、成本控制范围、公司代码、工厂、负责人编号
"第二步，画参数
"MOVE-CORRESPONDING ld_e_project_definition TO wa_stru_proj_define.
PARAMETERS p_char1 TYPE char40 ."项目定义
PARAMETERS p_char2 TYPE char40."项目描述
PARAMETERS p_char3 TYPE proj-vbukr DEFAULT '1000'."公司代码
PARAMETERS p_char4 TYPE proj-vkokr DEFAULT '1000'."成本控制范围
PARAMETERS p_char5 TYPE proj-profl DEFAULT '2000'."项目参数文件
PARAMETERS p_char6 TYPE bapi_bus2001_new-plant DEFAULT '1300'."工厂
PARAMETERS p_char7 TYPE bapi_bus2001_new-profit_ctr DEFAULT '1300'."利润中心
PARAMETERS p_char8 TYPE bapi_bus2001_new-start DEFAULT '20210208'."开始日期
PARAMETERS p_char9 TYPE bapi_bus2001_new-finish DEFAULT '20210828'."结束日期
PARAMETERS p_char10 TYPE BAPI_TE_PROJECT_DEFINITION-ZPSPNR DEFAULT '12345'."历史项目编号，这是多出来的
PARAMETERS p_char11 TYPE BAPI_TE_PROJECT_DEFINITION-ZPSPNR1 DEFAULT '上山打老虎'."历史项目名称，这是多出来的
wa_stru_proj_define-project_definition = p_char1.
wa_stru_proj_define-description = p_char2.
wa_stru_proj_define-company_code = p_char3.
wa_stru_proj_define-controlling_area = p_char4.
wa_stru_proj_define-project_profile = p_char5.
wa_stru_proj_define-plant = p_char6.
wa_stru_proj_define-profit_ctr = p_char7 .
wa_stru_proj_define-start = p_char8 .
wa_stru_proj_define-finish = p_char9 .
wa_BAPI_TE_PROJECT_DEFINITION-PROJECT_DEFINITION = p_char1. "这是多出来的,要赋值项目定义
wa_BAPI_TE_PROJECT_DEFINITION-ZPSPNR = p_char10 ."这是多出来的,要赋值历史项目编号
wa_BAPI_TE_PROJECT_DEFINITION-ZPSPNR1 = p_char11 ."这是多出来的,要赋值历史项目名称
"wa_stru_proj_define-time_unit = ''.
CLEAR: wa_EXTENSIONIN.
wa_EXTENSIONIN-structure = 'BAPI_TE_PROJECT_DEFINITION'."这是多出来的，要把存储扩展信息的结构放到wa_EXTENSIONIN的structure
wa_EXTENSIONIN-valuepart1 = wa_BAPI_TE_PROJECT_DEFINITION."这是多出来的，要把存储扩展信息全放到wa_EXTENSIONIN的valuepart1
APPEND wa_EXTENSIONIN to lt_EXTENSIONIN.
"第三步，调用创建
CALL FUNCTION 'BAPI_PS_INITIALIZATION'.
CALL FUNCTION 'BAPI_BUS2001_CREATE'
EXPORTING
i_project_definition = wa_stru_proj_define
TABLES
et_return = it_BAPIRET2
EXTENSIONIN = lt_EXTENSIONIN
* EXTENSIONOUT =
.
"第四步：判断是否有错误消息
LOOP AT it_BAPIRET2 INTO wa_bapiret2 WHERE type CA 'AE'.
MESSAGE ID wa_bapiret2-id TYPE wa_bapiret2-type NUMBER wa_bapiret2-number
INTO wa_bapiret2-message
WITH wa_bapiret2-message_v1 wa_bapiret2-message_v2
wa_bapiret2-message_v3 wa_bapiret2-message_v4.
WRITE:/ '创建时报错:',wa_bapiret2-message.
ENDLOOP.
"第四步：如果有错误消息则退出
IF sy-subrc EQ 0.
CALL FUNCTION 'PS_FLAG_INIT_GLOBAL_FLAGS'.
CALL FUNCTION 'PS_FLAG_SET_GLOBAL_FLAGS'
EXPORTING
i_precommit_ok = 'Y'.
ENDIF.
CHECK sy-subrc NE 0.
"第四步：没有错误消息则执行预提交
CALL FUNCTION 'BAPI_PS_PRECOMMIT'
TABLES
et_return = it_BAPIRET2.
LOOP AT it_BAPIRET2 INTO wa_bapiret2 WHERE type CA 'AE'.
MESSAGE ID wa_bapiret2-id TYPE wa_bapiret2-type NUMBER wa_bapiret2-number
INTO wa_bapiret2-message
WITH wa_bapiret2-message_v1 wa_bapiret2-message_v2
wa_bapiret2-message_v3 wa_bapiret2-message_v4.
WRITE:/ '预提交时报错:',wa_bapiret2-message.
ENDLOOP.
"第五步：预提交有错误消息则执行回滚
IF sy-subrc EQ 0.
CALL FUNCTION 'BAPI_TRANSACTION_ROLLBACK'
IMPORTING
return = it_BAPIRET2.
CALL FUNCTION 'PS_FLAG_INIT_GLOBAL_FLAGS'.
CALL FUNCTION 'PS_FLAG_SET_GLOBAL_FLAGS'
EXPORTING
i_precommit_ok = 'Y'.
ELSE.
"第五步：预提交无错误消息则执行正式提交
CALL FUNCTION 'BAPI_TRANSACTION_COMMIT'
EXPORTING
wait = 'X'
IMPORTING
return = wa_BAPIRET2.
WRITE:/ '带增强字段的项目定义创建成功:',wa_bapiret2-message.
* WBS元素创建成功
ENDIF.
1.3 修改
1.4 删除
2 WBS
| 序号 | 业务分类 | 作用类别 | 名 | 主要作用 |
|---|---|---|---|---|
| 1 | WBS | 查询类 | BAPI_PROJECT_EXISTENCECHECK | 判断WBS是否存在 |
| 2 | WBS | 查询类 | BAPI_PROJECT_GETINFO | 根据项目定义，查询WBS 要素的详细数据 |

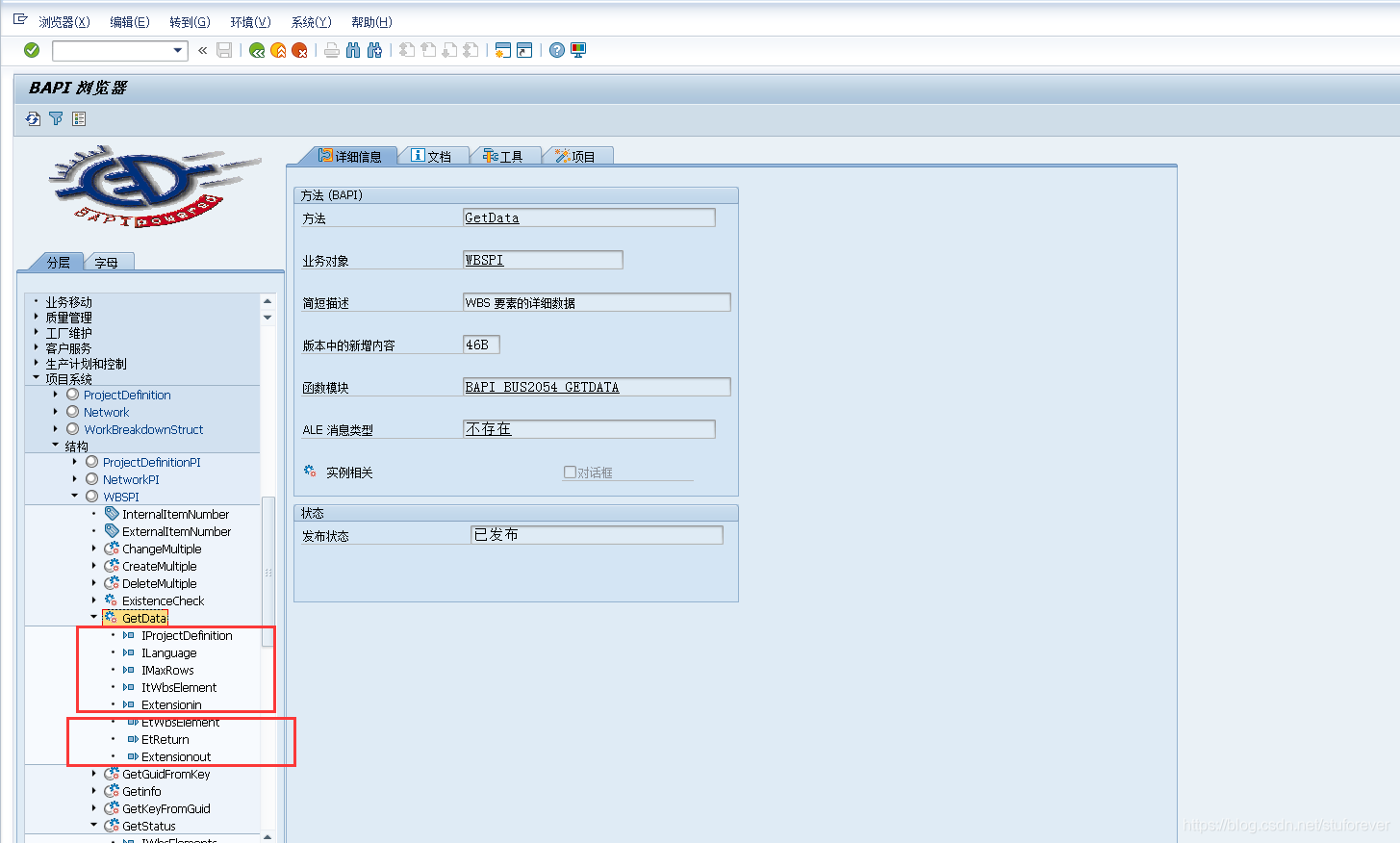

| 3 | WBS | 查询类 | BAPI_BUS2054_GETDATA | WBS 要素的详细数据，可读取到增强字段 |
| 4 | WBS | 查询类 | BAPI_BUS2054_GET_STATUS | 读取 BUS2054 状态 (工作分解结构) |
| 6 | WBS | 创建类 | BAPI_BUS2054_CREATE_MULTI | 只创建WBS，可维护增强字段 |
| 7 | WBS | 创建类 | BAPI_PROJECT_SAVEREPLICA | 复制工作分解结构 (ALE)，可增强 |
| 8 | WBS | 修改类 | BAPI_BUS2054_SET_STATUS | 设置/重置 BUS2054 状态 (工作分解结构) |
| 9 | WBS | 修改类 | BAPI_BUS2054_CHANGE_MULTI | 使用 BAPI 更改 WBS 要素 |

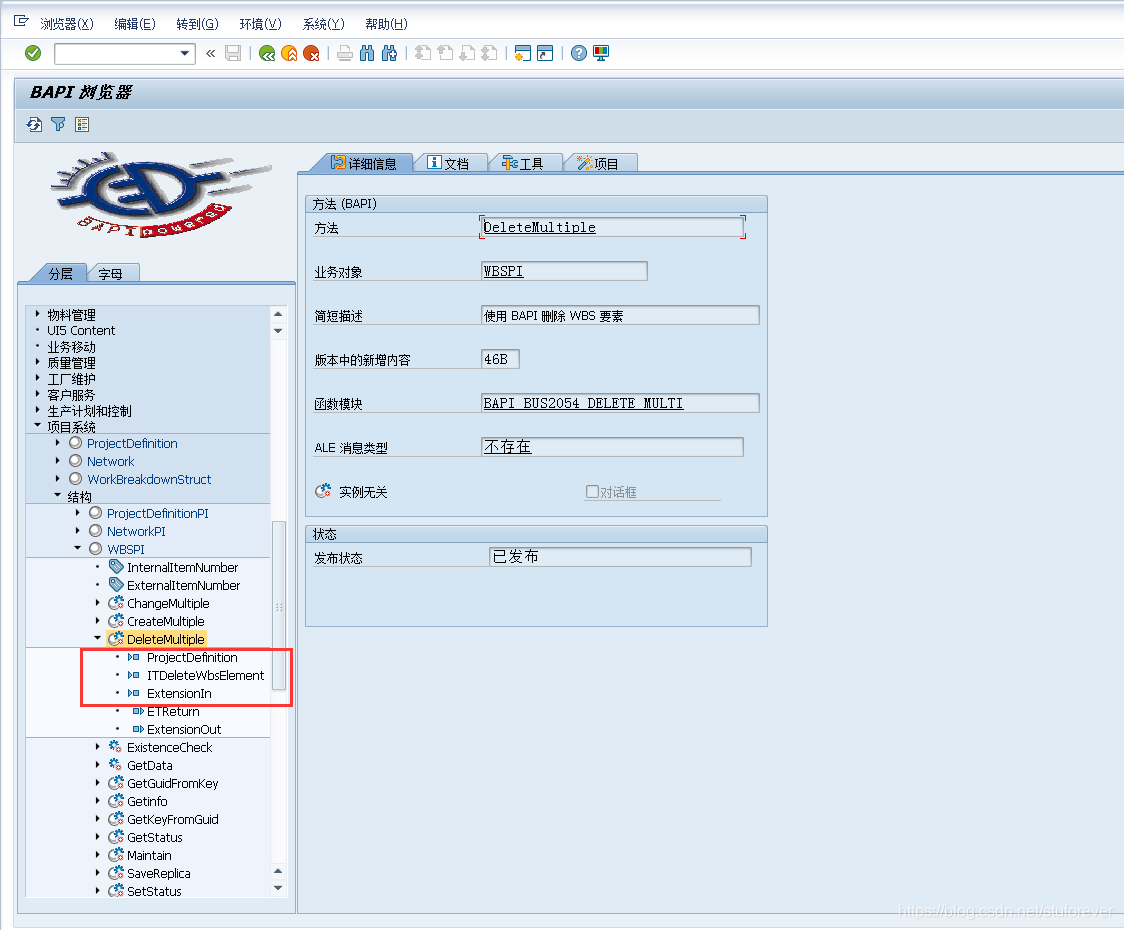

| 10 | WBS | 删除类 | BAPI_BUS2054_DELETE_MULTI | 使用 BAPI 删除 WBS 要素 |
| 11 | WBS | 创建类 | BAPI_PROJECT_MAINTAIN | 项目定义、WBS、网络和活动一起创建，修改，删除，老版本的用法 |
2.1 查询
2.1.1BAPI_PROJECT_EXISTENCECHECK判断是否存在，并查询BAPI_PROJECT_GETINFO
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_PROJECT01
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZLGZBAPI_PROJECT01.
data: iv_project type BAPIPR-PROJECT_DEFINITION.
data: lt_wbs_element_table TYPE TABLE of BAPI_WBS_ELEMENT_EXP,
lt_wbs_hierarchie_table TYPE table of BAPI_WBS_HIERARCHIE,
lt_act_table TYPE table of BAPI_NETWORK_ACTIVITY_EXP.
"iv_project = 'LGZXS002'.
PARAMETERS p_p7 TYPE proj-PSPID .
iv_project = p_p7.
CALL FUNCTION 'BAPI_PROJECT_GETINFO'
EXPORTING
project_definition = iv_project
with_activities = 'X'
TABLES
e_wbs_element_table = lt_wbs_element_table
e_wbs_hierarchie_table = lt_wbs_hierarchie_table
e_activity_table = lt_act_table.
*调用alv,根据项目定义返回WBS元素
CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY_LVC'
EXPORTING
* I_INTERFACE_CHECK = ' '
* I_BYPASSING_BUFFER =
* I_BUFFER_ACTIVE =
* I_CALLBACK_PROGRAM = ' '
* I_CALLBACK_PF_STATUS_SET = ' '
* I_CALLBACK_USER_COMMAND = ' '
* I_CALLBACK_TOP_OF_PAGE = ' '
* I_CALLBACK_HTML_TOP_OF_PAGE = ' '
* I_CALLBACK_HTML_END_OF_LIST = ' '
I_STRUCTURE_NAME = 'BAPI_WBS_ELEMENT_EXP'
* I_BACKGROUND_ID = ' '
* I_GRID_TITLE =
* I_GRID_SETTINGS =
* IS_LAYOUT_LVC =
* IT_FIELDCAT_LVC =
* IT_EXCLUDING =
* IT_SPECIAL_GROUPS_LVC =
* IT_SORT_LVC =
* IT_FILTER_LVC =
* IT_HYPERLINK =
* IS_SEL_HIDE =
* I_DEFAULT = 'X'
* I_SAVE = ' '
* IS_VARIANT =
* IT_EVENTS =
* IT_EVENT_EXIT =
* IS_PRINT_LVC =
* IS_REPREP_ID_LVC =
* I_SCREEN_START_COLUMN = 0
* I_SCREEN_START_LINE = 0
* I_SCREEN_END_COLUMN = 0
* I_SCREEN_END_LINE = 0
* I_HTML_HEIGHT_TOP =
* I_HTML_HEIGHT_END =
* IT_ALV_GRAPHICS =
* IT_EXCEPT_QINFO_LVC =
* IR_SALV_FULLSCREEN_ADAPTER =
* IMPORTING
* E_EXIT_CAUSED_BY_CALLER =
* ES_EXIT_CAUSED_BY_USER =
TABLES
t_outtab = lt_wbs_element_table
* EXCEPTIONS
* PROGRAM_ERROR = 1
* OTHERS = 2
.
IF sy-subrc <> 0.
* Implement suitable error handling here
ENDIF.
*调用alv,根据项目定义返回WBS元素的上下左右元素
CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY_LVC'
EXPORTING
* I_INTERFACE_CHECK = ' '
* I_BYPASSING_BUFFER =
* I_BUFFER_ACTIVE =
* I_CALLBACK_PROGRAM = ' '
* I_CALLBACK_PF_STATUS_SET = ' '
* I_CALLBACK_USER_COMMAND = ' '
* I_CALLBACK_TOP_OF_PAGE = ' '
* I_CALLBACK_HTML_TOP_OF_PAGE = ' '
* I_CALLBACK_HTML_END_OF_LIST = ' '
I_STRUCTURE_NAME = 'BAPI_WBS_HIERARCHIE'
* I_BACKGROUND_ID = ' '
* I_GRID_TITLE =
* I_GRID_SETTINGS =
* IS_LAYOUT_LVC =
* IT_FIELDCAT_LVC =
* IT_EXCLUDING =
* IT_SPECIAL_GROUPS_LVC =
* IT_SORT_LVC =
* IT_FILTER_LVC =
* IT_HYPERLINK =
* IS_SEL_HIDE =
* I_DEFAULT = 'X'
* I_SAVE = ' '
* IS_VARIANT =
* IT_EVENTS =
* IT_EVENT_EXIT =
* IS_PRINT_LVC =
* IS_REPREP_ID_LVC =
* I_SCREEN_START_COLUMN = 0
* I_SCREEN_START_LINE = 0
* I_SCREEN_END_COLUMN = 0
* I_SCREEN_END_LINE = 0
* I_HTML_HEIGHT_TOP =
* I_HTML_HEIGHT_END =
* IT_ALV_GRAPHICS =
* IT_EXCEPT_QINFO_LVC =
* IR_SALV_FULLSCREEN_ADAPTER =
* IMPORTING
* E_EXIT_CAUSED_BY_CALLER =
* ES_EXIT_CAUSED_BY_USER =
TABLES
t_outtab = lt_wbs_hierarchie_table
* EXCEPTIONS
* PROGRAM_ERROR = 1
* OTHERS = 2
.
IF sy-subrc <> 0.
* Implement suitable error handling here
ENDIF.
2.1.2 BAPI_BUS2054_GETDATA根据输入的WBS号查询WBS详情
输入和输出，输入是项目定义（可选）和WBS列表（可选），输出是wbs列表详细信息
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_BUS2054_GETDATA
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZLGZBAPI_BUS2054_GETDATA.
"第一步，定义变量
"输出和输入
DATA:
wa_e_project_wbs TYPE BAPI_BUS2054_DETAIL ,
lt_e_project_wbs TYPE STANDARD TABLE OF BAPI_BUS2054_DETAIL ,
"输入参数，项目定义
ld_i_project_definition TYPE BAPI_BUS2054_DETAIL-PROJECT_DEFINITION ,
"输入参数，WBS信息
wa_i_project_wbs type BAPI_WBS_LIST,
lt_i_project_wbs type STANDARD TABLE OF BAPI_WBS_LIST,
"语言
ld_i_language TYPE BAPI_BUS2054_DETAIL-LANGU_ISO ,
"最大展示行
ld_i_num type BAPIF4A-MAX_ROWS,
"返回变量
it_et_return TYPE STANDARD TABLE OF BAPIRET2 ,
wa_et_return LIKE LINE OF it_et_return,
"扩展的输入变量，扩展字段使用
it_extensionin TYPE STANDARD TABLE OF BAPIPAREX ,
wa_extensionin LIKE LINE OF it_extensionin,
"扩展的输出变量，扩展字段使用
it_extensionout TYPE STANDARD TABLE OF BAPIPAREX ,
wa_extensionout LIKE LINE OF it_extensionout.
"第二步，赋值
"如果仅指定项目定义，那么展示的WBS详细信息就是项目定义下的所有WBS
ld_i_project_definition = 'LGZXS002'.
"populate fields of struture and append to itab
append wa_et_return to it_et_return.
ld_i_language = 'ZH'.
"如果指定了具体的WBS，那么展示的是具体的WBS信息
wa_i_project_wbs-WBS_ELEMENT = 'LGZXS00212'.
APPEND wa_i_project_wbs to lt_i_project_wbs.
ld_i_num = 100.
"populate fields of struture and append to itab
append wa_extensionin to it_extensionin.
"populate fields of struture and append to itab
append wa_extensionout to it_extensionout.
.
"第三步，调用函数及lvc展示
CALL FUNCTION 'BAPI_BUS2054_GETDATA'
EXPORTING
* I_PROJECT_DEFINITION = ld_i_project_definition
I_LANGUAGE = ld_i_language
I_MAX_ROWS = ld_i_num
TABLES
IT_WBS_ELEMENT = lt_i_project_wbs
ET_WBS_ELEMENT = lt_e_project_wbs
ET_RETURN = it_et_return
* EXTENSIONIN =
* EXTENSIONOUT =
.
IF SY-SUBRC EQ 0.
CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY_LVC'
EXPORTING
* I_INTERFACE_CHECK = ' '
* I_BYPASSING_BUFFER =
* I_BUFFER_ACTIVE =
* I_CALLBACK_PROGRAM = ' '
* I_CALLBACK_PF_STATUS_SET = ' '
* I_CALLBACK_USER_COMMAND = ' '
* I_CALLBACK_TOP_OF_PAGE = ' '
* I_CALLBACK_HTML_TOP_OF_PAGE = ' '
* I_CALLBACK_HTML_END_OF_LIST = ' '
I_STRUCTURE_NAME = 'BAPI_BUS2054_DETAIL'
* I_BACKGROUND_ID = ' '
* I_GRID_TITLE =
* I_GRID_SETTINGS =
* IS_LAYOUT_LVC =
* IT_FIELDCAT_LVC =
* IT_EXCLUDING =
* IT_SPECIAL_GROUPS_LVC =
* IT_SORT_LVC =
* IT_FILTER_LVC =
* IT_HYPERLINK =
* IS_SEL_HIDE =
* I_DEFAULT = 'X'
* I_SAVE = ' '
* IS_VARIANT =
* IT_EVENTS =
* IT_EVENT_EXIT =
* IS_PRINT_LVC =
* IS_REPREP_ID_LVC =
* I_SCREEN_START_COLUMN = 0
* I_SCREEN_START_LINE = 0
* I_SCREEN_END_COLUMN = 0
* I_SCREEN_END_LINE = 0
* I_HTML_HEIGHT_TOP =
* I_HTML_HEIGHT_END =
* IT_ALV_GRAPHICS =
* IT_EXCEPT_QINFO_LVC =
* IR_SALV_FULLSCREEN_ADAPTER =
* IMPORTING
* E_EXIT_CAUSED_BY_CALLER =
* ES_EXIT_CAUSED_BY_USER =
TABLES
t_outtab = lt_e_project_wbs
* EXCEPTIONS
* PROGRAM_ERROR = 1
* OTHERS = 2
.
IF sy-subrc <> 0.
* Implement suitable error handling here
ENDIF.
ENDIF.
2.1.3 BAPI_BUS2054_GET_STATUS 获取WBS状态
输入参数是WBS列表（必输）
输出参数是系统状态、用户状态以及错误消息（可选）
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_BUS2054_GET_STATUS
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZLGZBAPI_BUS2054_GET_STATUS.
"第一步：定义变量
DATA:
lt_project_wbs TYPE STANDARD TABLE OF BAPI_WBS_ELEMENTS ,"WBS列表
wa_project_wbs like line of lt_project_wbs,
it_e_system_status TYPE STANDARD TABLE OF BAPI_WBS_SYSTEM_STATUS ,"系统状态定义
wa_e_system_status LIKE LINE OF it_e_system_status,
it_e_user_status TYPE STANDARD TABLE OF BAPI_WBS_USER_STATUS ,"用户状态定义
wa_e_user_status LIKE LINE OF it_e_user_status,
ld_return type BAPIRETURN1,"定义返回变量
it_BAPI_STATUS_RESULT type STANDARD TABLE OF BAPI_STATUS_RESULT."设置/重置状态错误消息内表，如果报错该内表会有值
"第二步：初始化变量
wa_project_wbs-WBS_ELEMENT = 'LGZXS00212'.
APPEND wa_project_wbs to lt_project_wbs.
clear ld_return.
CALL FUNCTION 'BAPI_PS_INITIALIZATION'.
CALL FUNCTION 'BAPI_BUS2054_GET_STATUS'
IMPORTING
RETURN = ld_return
TABLES
i_wbs_elements = lt_project_wbs
E_SYSTEM_STATUS = it_e_system_status
E_USER_STATUS = it_e_user_status
E_RESULT = it_BAPI_STATUS_RESULT
.
IF SY-SUBRC EQ 0.
LOOP AT it_e_system_status into wa_e_system_status.
IF wa_e_system_status is not INITIAL.
WRITE:/ '输出系统状态：',wa_e_system_status-SYSTEM_STATUS.
ENDIF.
ENDLOOP.
LOOP AT it_e_user_status into wa_e_user_status.
IF wa_e_user_status is not INITIAL.
WRITE:/ '输出用户状态：',wa_e_user_status-USER_STATUS.
ENDIF.
ENDLOOP.
ENDIF.
2.2 新增
2.2.1 BAPI_BUS2054_CREATE_MULTI只创建WBS，可维护增强字段
输入输出：输入是项目定义（必选）、项目WBS元素、WBS的up和left
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_BUS2054_CREATE_MULTI
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZLGZBAPI_BUS2054_CREATE_MULTI.
"第一步：定义变量
data:
ld_PROJECT_DEFINITION type BAPI_BUS2001_NEW-PROJECT_DEFINITION,"项目定义，要挂在哪个项目上
"定义WBS详情
it_BAPI_BUS2054_NEW type STANDARD TABLE OF BAPI_BUS2054_NEW,
wa_BAPI_BUS2054_NEW type BAPI_BUS2054_NEW,
"定义返回参数
it_BAPIRET2 type STANDARD TABLE OF BAPIRET2,
wa_BAPIRET2 type BAPIRET2.
"第二步：赋值
"项目定义
ld_PROJECT_DEFINITION = 'LGZXS002'.
"WBS
wa_BAPI_BUS2054_NEW-wbs_element = 'LGZXS00217'. "工作分解结构元素 (WBS 元素)
wa_BAPI_BUS2054_NEW-description = '结项'. "PS: 短描述 (第一行文本)
wa_BAPI_BUS2054_NEW-responsible_no = ''. "负责人编号
wa_BAPI_BUS2054_NEW-profit_ctr = 'P6888001'. "利润中心
wa_BAPI_BUS2054_NEW-proj_type = ''. "项目类型
wa_BAPI_BUS2054_NEW-WBS_PLANNING_ELEMENT = 'X'.
wa_BAPI_BUS2054_NEW-wbs_account_assignment_element = 'X'. "标志：科目分配元素
wa_BAPI_BUS2054_NEW-wbs_billing_element = 'X'. "标识符： 开票元素
wa_BAPI_BUS2054_NEW-wbs_left = 'LGZXS00215'."左侧WBS
wa_BAPI_BUS2054_NEW-wbs_up = 'LGZXS0021'. "上级WBS
" wa_BAPI_BUS2054_NEW-user_field_char20_1 = gs_wbs-usr00. "业务类别
" wa_BAPI_BUS2054_NEW-user_field_char20_2 = gs_wbs-usr01. "CRM 商机编码
" wa_BAPI_BUS2054_NEW-user_field_char10_1 = 'X'. "产品
wa_BAPI_BUS2054_NEW-statistical = ''. "统计
wa_BAPI_BUS2054_NEW-wbs_cctr_posted_actual = ''. "CCtr 过账
APPEND wa_BAPI_BUS2054_NEW TO it_BAPI_BUS2054_NEW.
"第三步：调用函数
CALL FUNCTION 'BAPI_PS_INITIALIZATION'.
CALL FUNCTION 'BAPI_BUS2054_CREATE_MULTI'
EXPORTING
i_project_definition = ld_PROJECT_DEFINITION
tables
it_wbs_element = it_BAPI_BUS2054_NEW
ET_RETURN = it_BAPIRET2
* EXTENSIONIN =
* EXTENSIONOUT =
.
"第四步：判断是否有错误消息
LOOP AT it_BAPIRET2 INTO wa_bapiret2 WHERE type CA 'AE'.
MESSAGE ID wa_bapiret2-id TYPE wa_bapiret2-type NUMBER wa_bapiret2-number
INTO wa_bapiret2-message
WITH wa_bapiret2-message_v1 wa_bapiret2-message_v2
wa_bapiret2-message_v3 wa_bapiret2-message_v4.
WRITE:/ '创建时报错:',wa_bapiret2-message.
ENDLOOP.
"第四步：如果有错误消息则退出
IF sy-subrc EQ 0.
CALL FUNCTION 'PS_FLAG_INIT_GLOBAL_FLAGS'.
CALL FUNCTION 'PS_FLAG_SET_GLOBAL_FLAGS'
EXPORTING
i_precommit_ok = 'Y'.
ENDIF.
CHECK sy-subrc NE 0.
"第四步：没有错误消息则执行预提交
CALL FUNCTION 'BAPI_PS_PRECOMMIT'
TABLES
et_return = it_BAPIRET2.
LOOP AT it_BAPIRET2 INTO wa_bapiret2 WHERE type CA 'AE'.
MESSAGE ID wa_bapiret2-id TYPE wa_bapiret2-type NUMBER wa_bapiret2-number
INTO wa_bapiret2-message
WITH wa_bapiret2-message_v1 wa_bapiret2-message_v2
wa_bapiret2-message_v3 wa_bapiret2-message_v4.
WRITE:/ '预提交时报错:',wa_bapiret2-message.
ENDLOOP.
"第五步：预提交有错误消息则执行回滚
IF sy-subrc EQ 0.
CALL FUNCTION 'BAPI_TRANSACTION_ROLLBACK'
IMPORTING
return = it_BAPIRET2.
CALL FUNCTION 'PS_FLAG_INIT_GLOBAL_FLAGS'.
CALL FUNCTION 'PS_FLAG_SET_GLOBAL_FLAGS'
EXPORTING
i_precommit_ok = 'Y'.
ELSE.
"第五步：预提交无错误消息则执行正式提交
CALL FUNCTION 'BAPI_TRANSACTION_COMMIT'
EXPORTING
wait = 'X'
IMPORTING
return = wa_BAPIRET2.
WRITE:/ 'WBS创建成功:',wa_bapiret2-message.
* WBS元素创建成功
ENDIF.
2.1.5 BAPI_PROJECT_SAVEREPLICA |复制工作分解结构 (ALE)，可增强
先略过
2.3 修改
2.3.1 BAPI_BUS2054_SET_STATUS |设置/重置 BUS2054 状态 (工作分解结构)|
输入输出：
输入是系统状态列表（可选）和用户状态列表（可选），
输出是设置是否成功
2.3.2 BAPI_BUS2054_CHANGE_MULTI |使用 BAPI 更改 WBS 要素|
输入：项目定义（必选）、WBS内容（要修改的）、修改标识（要修改的）
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_BUS2054_CHANGE_MULTI
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZLGZBAPI_BUS2054_CHANGE_MULTI.
"第一步，定义更改变量
data:
"项目定义
ld_i_project_definition type BAPI_BUS2001_NEW-PROJECT_DEFINITION,
"要更新的WBS信息
wa_e_project_wbs_chg TYPE BAPI_BUS2054_CHG ,
lt_e_project_wbs_chg TYPE STANDARD TABLE OF BAPI_BUS2054_CHG ,
"要更新那些WBS字段
wa_e_project_wbs_upd TYPE BAPI_BUS2054_UPD ,
lt_e_project_wbs_upd TYPE STANDARD TABLE OF BAPI_BUS2054_UPD,
"定义返回参数
it_BAPIRET2 type STANDARD TABLE OF BAPIRET2,
wa_BAPIRET2 type BAPIRET2.
"第二步，赋值
ld_i_project_definition = 'LGZXS002'.
"MOVE-CORRESPONDING wa_e_project_wbs to wa_e_project_wbs_chg."通过查询的WBS拷贝变量
wa_e_project_wbs_chg-WBS_ELEMENT = 'LGZXS00217'.
wa_e_project_wbs_chg-DESCRIPTION ='完工结项1'."更改描述
"设置更新标志
wa_e_project_wbs_upd-WBS_ELEMENT = wa_e_project_wbs_chg-WBS_ELEMENT.
wa_e_project_wbs_upd-DESCRIPTION = 'X'.
APPEND wa_e_project_wbs_chg to lt_e_project_wbs_chg.
APPEND wa_e_project_wbs_upd to lt_e_project_wbs_upd.
"第三步，调用
CALL FUNCTION 'BAPI_PS_INITIALIZATION'.
CALL FUNCTION 'BAPI_BUS2054_CHANGE_MULTI'
EXPORTING
i_project_definition = ld_i_project_definition
tables
it_wbs_element = lt_e_project_wbs_chg
it_update_wbs_element = lt_e_project_wbs_upd
ET_RETURN = it_BAPIRET2
* EXTENSIONIN =
* EXTENSIONOUT =
.
"第四步：判断是否有错误消息
LOOP AT it_BAPIRET2 INTO wa_bapiret2 WHERE type CA 'AE'.
MESSAGE ID wa_bapiret2-id TYPE wa_bapiret2-type NUMBER wa_bapiret2-number
INTO wa_bapiret2-message
WITH wa_bapiret2-message_v1 wa_bapiret2-message_v2
wa_bapiret2-message_v3 wa_bapiret2-message_v4.
WRITE:/ '修改时报错:',wa_bapiret2-message.
ENDLOOP.
"第四步：如果有错误消息则退出
IF sy-subrc EQ 0.
CALL FUNCTION 'PS_FLAG_INIT_GLOBAL_FLAGS'.
CALL FUNCTION 'PS_FLAG_SET_GLOBAL_FLAGS'
EXPORTING
i_precommit_ok = 'Y'.
ENDIF.
CHECK sy-subrc NE 0.
"第四步：没有错误消息则执行预提交
CALL FUNCTION 'BAPI_PS_PRECOMMIT'
TABLES
et_return = it_BAPIRET2.
LOOP AT it_BAPIRET2 INTO wa_bapiret2 WHERE type CA 'AE'.
MESSAGE ID wa_bapiret2-id TYPE wa_bapiret2-type NUMBER wa_bapiret2-number
INTO wa_bapiret2-message
WITH wa_bapiret2-message_v1 wa_bapiret2-message_v2
wa_bapiret2-message_v3 wa_bapiret2-message_v4.
WRITE:/ '预提交时报错:',wa_bapiret2-message.
ENDLOOP.
"第五步：预提交有错误消息则执行回滚
IF sy-subrc EQ 0.
CALL FUNCTION 'BAPI_TRANSACTION_ROLLBACK'
IMPORTING
return = it_BAPIRET2.
CALL FUNCTION 'PS_FLAG_INIT_GLOBAL_FLAGS'.
CALL FUNCTION 'PS_FLAG_SET_GLOBAL_FLAGS'
EXPORTING
i_precommit_ok = 'Y'.
ELSE.
"第五步：预提交无错误消息则执行正式提交
CALL FUNCTION 'BAPI_TRANSACTION_COMMIT'
EXPORTING
wait = 'X'
IMPORTING
return = wa_BAPIRET2.
WRITE:/ 'WBS修改成功:',wa_bapiret2-message.
* WBS元素创建成功
ENDIF.
2.3.3 BAPI_BUS2054_DELETE_MULTI|使用 BAPI 删除 WBS 要素|
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_BUS2054_DELETE_MULTI
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZLGZBAPI_BUS2054_DELETE_MULTI.
"第一步，定义更改变量
data:
"项目定义
ld_i_project_definition type BAPI_BUS2001_NEW-PROJECT_DEFINITION,
"要删除的WBS信息
wa_e_project_wbs_del TYPE BAPI_WBS_LIST ,
lt_e_project_wbs_del TYPE STANDARD TABLE OF BAPI_WBS_LIST,
"定义返回参数
it_BAPIRET2 type STANDARD TABLE OF BAPIRET2,
wa_BAPIRET2 type BAPIRET2.
"第二步，赋值
ld_i_project_definition = 'LGZXS002'.
"MOVE-CORRESPONDING wa_e_project_wbs to wa_e_project_wbs_chg."通过查询的WBS拷贝变量
wa_e_project_wbs_del-WBS_ELEMENT = 'LGZXS00217'.
APPEND wa_e_project_wbs_del to lt_e_project_wbs_del.
"第三步，调用
CALL FUNCTION 'BAPI_PS_INITIALIZATION'.
CALL FUNCTION 'BAPI_BUS2054_DELETE_MULTI'
EXPORTING
i_project_definition = ld_i_project_definition
tables
it_delete_wbs_element = lt_e_project_wbs_del
ET_RETURN = it_BAPIRET2
* EXTENSIONIN =
* EXTENSIONOUT =
.
"第四步：判断是否有错误消息
LOOP AT it_BAPIRET2 INTO wa_bapiret2 WHERE type CA 'AE'.
MESSAGE ID wa_bapiret2-id TYPE wa_bapiret2-type NUMBER wa_bapiret2-number
INTO wa_bapiret2-message
WITH wa_bapiret2-message_v1 wa_bapiret2-message_v2
wa_bapiret2-message_v3 wa_bapiret2-message_v4.
WRITE:/ '修改时报错:',wa_bapiret2-message.
ENDLOOP.
"第四步：如果有错误消息则退出
IF sy-subrc EQ 0.
CALL FUNCTION 'PS_FLAG_INIT_GLOBAL_FLAGS'.
CALL FUNCTION 'PS_FLAG_SET_GLOBAL_FLAGS'
EXPORTING
i_precommit_ok = 'Y'.
ENDIF.
CHECK sy-subrc NE 0.
"第四步：没有错误消息则执行预提交
CALL FUNCTION 'BAPI_PS_PRECOMMIT'
TABLES
et_return = it_BAPIRET2.
LOOP AT it_BAPIRET2 INTO wa_bapiret2 WHERE type CA 'AE'.
MESSAGE ID wa_bapiret2-id TYPE wa_bapiret2-type NUMBER wa_bapiret2-number
INTO wa_bapiret2-message
WITH wa_bapiret2-message_v1 wa_bapiret2-message_v2
wa_bapiret2-message_v3 wa_bapiret2-message_v4.
WRITE:/ '预提交时报错:',wa_bapiret2-message.
ENDLOOP.
"第五步：预提交有错误消息则执行回滚
IF sy-subrc EQ 0.
CALL FUNCTION 'BAPI_TRANSACTION_ROLLBACK'
IMPORTING
return = it_BAPIRET2.
CALL FUNCTION 'PS_FLAG_INIT_GLOBAL_FLAGS'.
CALL FUNCTION 'PS_FLAG_SET_GLOBAL_FLAGS'
EXPORTING
i_precommit_ok = 'Y'.
ELSE.
"第五步：预提交无错误消息则执行正式提交
CALL FUNCTION 'BAPI_TRANSACTION_COMMIT'
EXPORTING
wait = 'X'
IMPORTING
return = wa_BAPIRET2.
WRITE:/ 'WBS修改成功:',wa_bapiret2-message.
* WBS元素创建成功
ENDIF.
3 网络
| 序号 | 业务分类 | 作用类别 | 名 | 主要作用 |
|---|---|---|---|---|
| 1 | 网络 | 查询类 | BAPI_NETWORK_GETLIST | 生成选择标准的网络清单 |
| 2 | 网络 | 查询类 | BAPI_BUS2002_GETDATA | 网络抬头的详细数据 |
| 4 | 网络 | 查询类 | BAPI_NETWORK_GETDETAIL | 读取网络的明细信息(包括所有对象) |

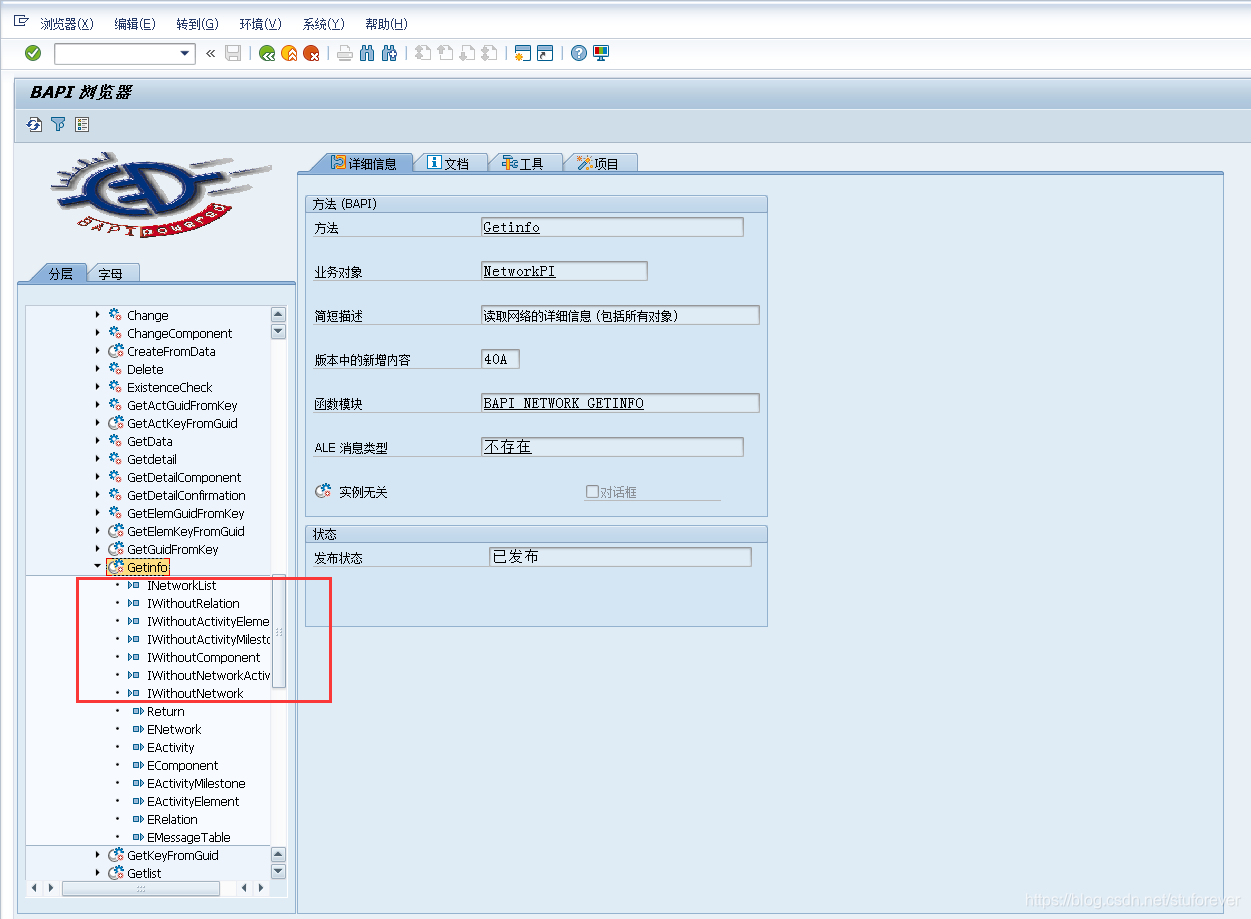

| 3 | 网络 | 查询类 | BAPI_NETWORK_GETINFO | 读取网络的详细信息 (包括所有对象) |
| 5 | 网络 | 查询类 | BAPI_NETWORK_EXISTENCECHECK | 检查对象是否存在 |
| 6 | 网络 | 新增类 | BAPI_BUS2002_CREATE | 创建网络 |
| 7 | 网络 | 删除类 | BAPI_BUS2002_DELETE | 删除网络 |
3.1 网络查询

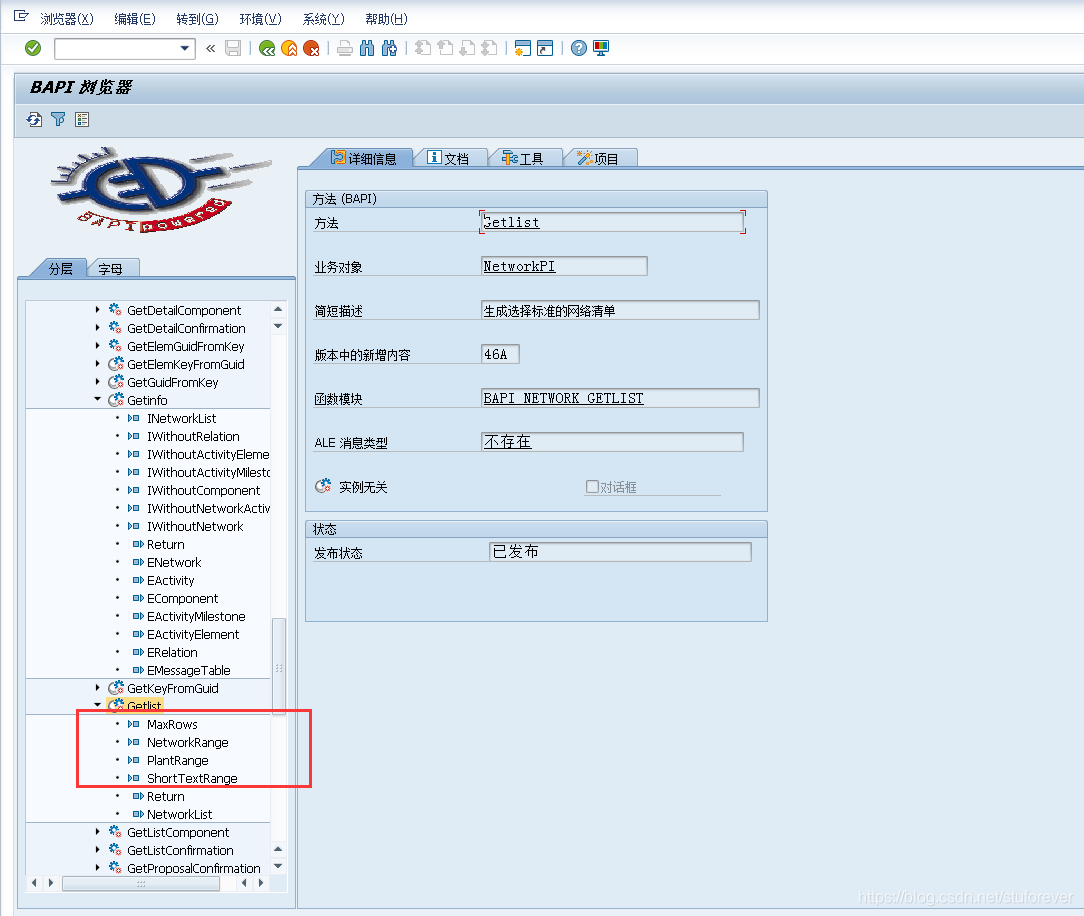

3.1.1 BAPI_NETWORK_GETLIST查询网络清单
输入：最大显示（可选）、网络编号range（可选）、工厂range（可选）、短文本range（可选）
输出：网络清单（必选）
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_NETWORK_GETLIST
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT zlgzbapi_network_getlist.
"第一步：定义变量
DATA:
ld_i_MAX_ROWS LIKE bapif4a-max_rows,"输入最大的显示行
ld_e_BAPIRET2 LIKE bapiret2,"输出执行日志
lt_BAPI_NETWORK_LIST_EXP LIKE STANDARD TABLE OF bapi_network_list_exp,"定义输出网络清单
wa_BAPI_NETWORK_LIST_EXP LIKE bapi_network_list_exp."定义输出网络清单
"第二步：变量赋值
ld_i_MAX_ROWS = 100.
"第三步：调用函数
CALL FUNCTION 'BAPI_NETWORK_GETLIST'
EXPORTING
max_rows = ld_i_MAX_ROWS
IMPORTING
return = ld_e_BAPIRET2
tables
network_list = lt_BAPI_NETWORK_LIST_EXP
* NETWORK_RANGE =
* PLANT_RANGE =
* SHORT_TEXT_RANGE =
.
"第四步：ALV显示
CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY_LVC'
EXPORTING
* I_INTERFACE_CHECK = ' '
* I_BYPASSING_BUFFER =
* I_BUFFER_ACTIVE =
* I_CALLBACK_PROGRAM = ' '
* I_CALLBACK_PF_STATUS_SET = ' '
* I_CALLBACK_USER_COMMAND = ' '
* I_CALLBACK_TOP_OF_PAGE = ' '
* I_CALLBACK_HTML_TOP_OF_PAGE = ' '
* I_CALLBACK_HTML_END_OF_LIST = ' '
I_STRUCTURE_NAME = 'bapi_network_list_exp'
* I_BACKGROUND_ID = ' '
* I_GRID_TITLE =
* I_GRID_SETTINGS =
* IS_LAYOUT_LVC =
* IT_FIELDCAT_LVC =
* IT_EXCLUDING =
* IT_SPECIAL_GROUPS_LVC =
* IT_SORT_LVC =
* IT_FILTER_LVC =
* IT_HYPERLINK =
* IS_SEL_HIDE =
* I_DEFAULT = 'X'
* I_SAVE = ' '
* IS_VARIANT =
* IT_EVENTS =
* IT_EVENT_EXIT =
* IS_PRINT_LVC =
* IS_REPREP_ID_LVC =
* I_SCREEN_START_COLUMN = 0
* I_SCREEN_START_LINE = 0
* I_SCREEN_END_COLUMN = 0
* I_SCREEN_END_LINE = 0
* I_HTML_HEIGHT_TOP =
* I_HTML_HEIGHT_END =
* IT_ALV_GRAPHICS =
* IT_EXCEPT_QINFO_LVC =
* IR_SALV_FULLSCREEN_ADAPTER =
* IMPORTING
* E_EXIT_CAUSED_BY_CALLER =
* ES_EXIT_CAUSED_BY_USER =
TABLES
t_outtab = lt_BAPI_NETWORK_LIST_EXP
* EXCEPTIONS
* PROGRAM_ERROR = 1
* OTHERS = 2
.
IF sy-subrc <> 0.
* Implement suitable error handling here
ENDIF.

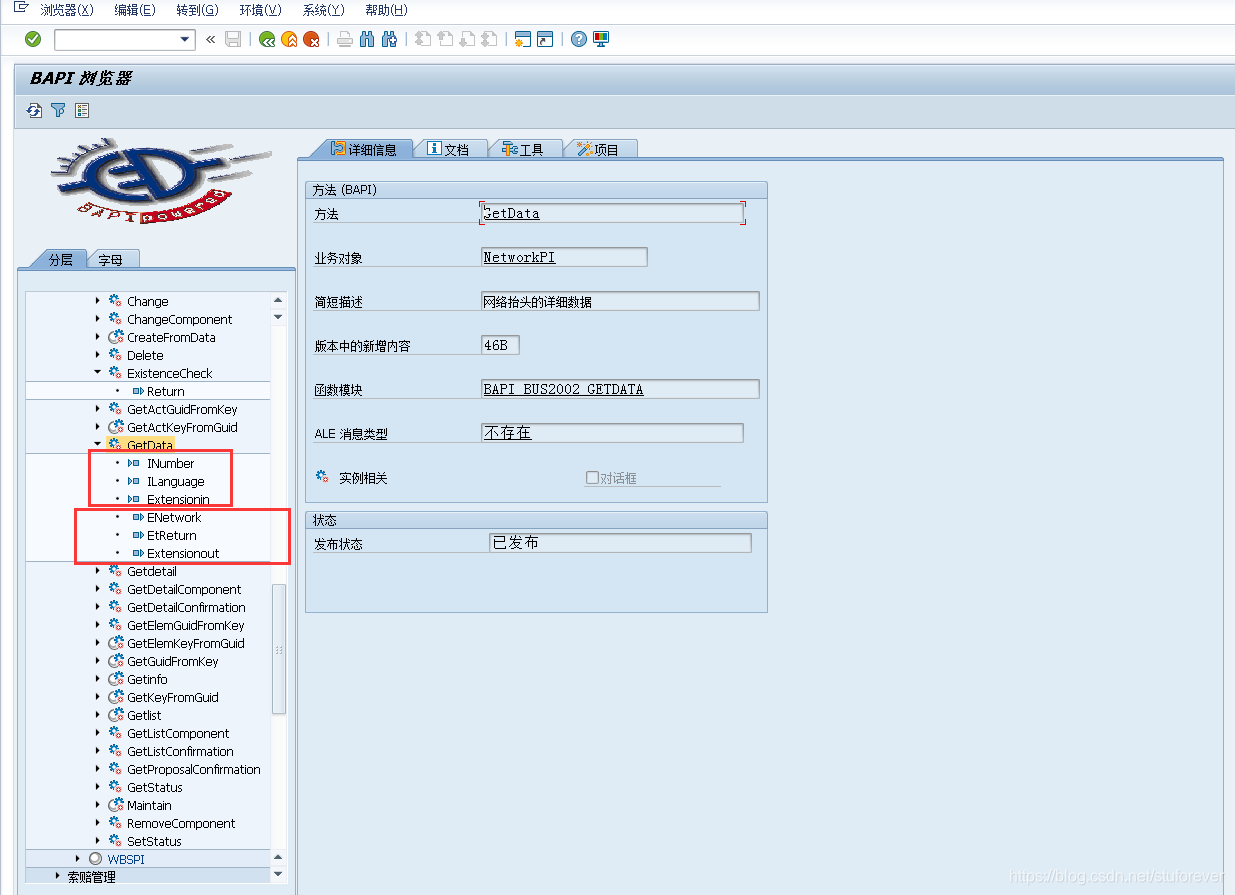

3.1.2 BAPI_BUS2002_GETDATA |网络抬头的详细数据 |
输入：网络号（必选）、语言（可选）
输出：网络详细结构（必选）
先读取网络清单，根据网络清单形成alv
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_BUS2002_GETDATA
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZLGZBAPI_BUS2002_GETDATA.
"第一步：定义变量
DATA:
ld_i_MAX_ROWS LIKE bapif4a-max_rows,"输入最大的显示行
ld_e_BAPIRET2 LIKE bapiret2,
lt_e_BAPIRET2 like STANDARD TABLE OF BAPIRET2,
lt_BAPI_NETWORK_LIST_EXP LIKE STANDARD TABLE OF bapi_network_list_exp,"定义输出网络清单
wa_BAPI_NETWORK_LIST_EXP LIKE bapi_network_list_exp."定义输出网络清单
"详细网络信息对象,不是简单的清单那么少的信息
data:
wa_BAPI_BUS2002_DETAIL type BAPI_BUS2002_DETAIL,
it_BAPI_BUS2002_DETAIL type STANDARD TABLE OF BAPI_BUS2002_DETAIL.
"定义
"第二步：变量赋值
ld_i_MAX_ROWS = 100.
"第三步：调用函数
CALL FUNCTION 'BAPI_NETWORK_GETLIST'
EXPORTING
max_rows = ld_i_MAX_ROWS
IMPORTING
return = ld_e_BAPIRET2
tables
network_list = lt_BAPI_NETWORK_LIST_EXP
* NETWORK_RANGE =
* PLANT_RANGE =
* SHORT_TEXT_RANGE =
.
"第四步：根据网络清单，调用具体网络信息
IF sy-subrc = 0.
LOOP AT lt_BAPI_NETWORK_LIST_EXP INTO wa_BAPI_NETWORK_LIST_EXP.
"调用获取数据
CALL FUNCTION 'BAPI_BUS2002_GETDATA'
EXPORTING
i_number = wa_BAPI_NETWORK_LIST_EXP-NETWORK
* I_LANGUAGE =
IMPORTING
E_NETWORK = wa_BAPI_BUS2002_DETAIL
TABLES
ET_RETURN = lt_e_BAPIRET2
* EXTENSIONIN =
* EXTENSIONOUT =
.
APPEND wa_BAPI_BUS2002_DETAIL to it_BAPI_BUS2002_DETAIL.
clear wa_BAPI_NETWORK_LIST_EXP.
ENDLOOP.
ENDIF.
"第五步：ALV显示
CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY_LVC'
EXPORTING
* I_INTERFACE_CHECK = ' '
* I_BYPASSING_BUFFER =
* I_BUFFER_ACTIVE =
* I_CALLBACK_PROGRAM = ' '
* I_CALLBACK_PF_STATUS_SET = ' '
* I_CALLBACK_USER_COMMAND = ' '
* I_CALLBACK_TOP_OF_PAGE = ' '
* I_CALLBACK_HTML_TOP_OF_PAGE = ' '
* I_CALLBACK_HTML_END_OF_LIST = ' '
I_STRUCTURE_NAME = 'BAPI_BUS2002_DETAIL'
* I_BACKGROUND_ID = ' '
* I_GRID_TITLE =
* I_GRID_SETTINGS =
* IS_LAYOUT_LVC =
* IT_FIELDCAT_LVC =
* IT_EXCLUDING =
* IT_SPECIAL_GROUPS_LVC =
* IT_SORT_LVC =
* IT_FILTER_LVC =
* IT_HYPERLINK =
* IS_SEL_HIDE =
* I_DEFAULT = 'X'
* I_SAVE = ' '
* IS_VARIANT =
* IT_EVENTS =
* IT_EVENT_EXIT =
* IS_PRINT_LVC =
* IS_REPREP_ID_LVC =
* I_SCREEN_START_COLUMN = 0
* I_SCREEN_START_LINE = 0
* I_SCREEN_END_COLUMN = 0
* I_SCREEN_END_LINE = 0
* I_HTML_HEIGHT_TOP =
* I_HTML_HEIGHT_END =
* IT_ALV_GRAPHICS =
* IT_EXCEPT_QINFO_LVC =
* IR_SALV_FULLSCREEN_ADAPTER =
* IMPORTING
* E_EXIT_CAUSED_BY_CALLER =
* ES_EXIT_CAUSED_BY_USER =
TABLES
t_outtab = it_BAPI_BUS2002_DETAIL
* EXCEPTIONS
* PROGRAM_ERROR = 1
* OTHERS = 2
.
IF sy-subrc <> 0.
* Implement suitable error handling here
ENDIF.
.

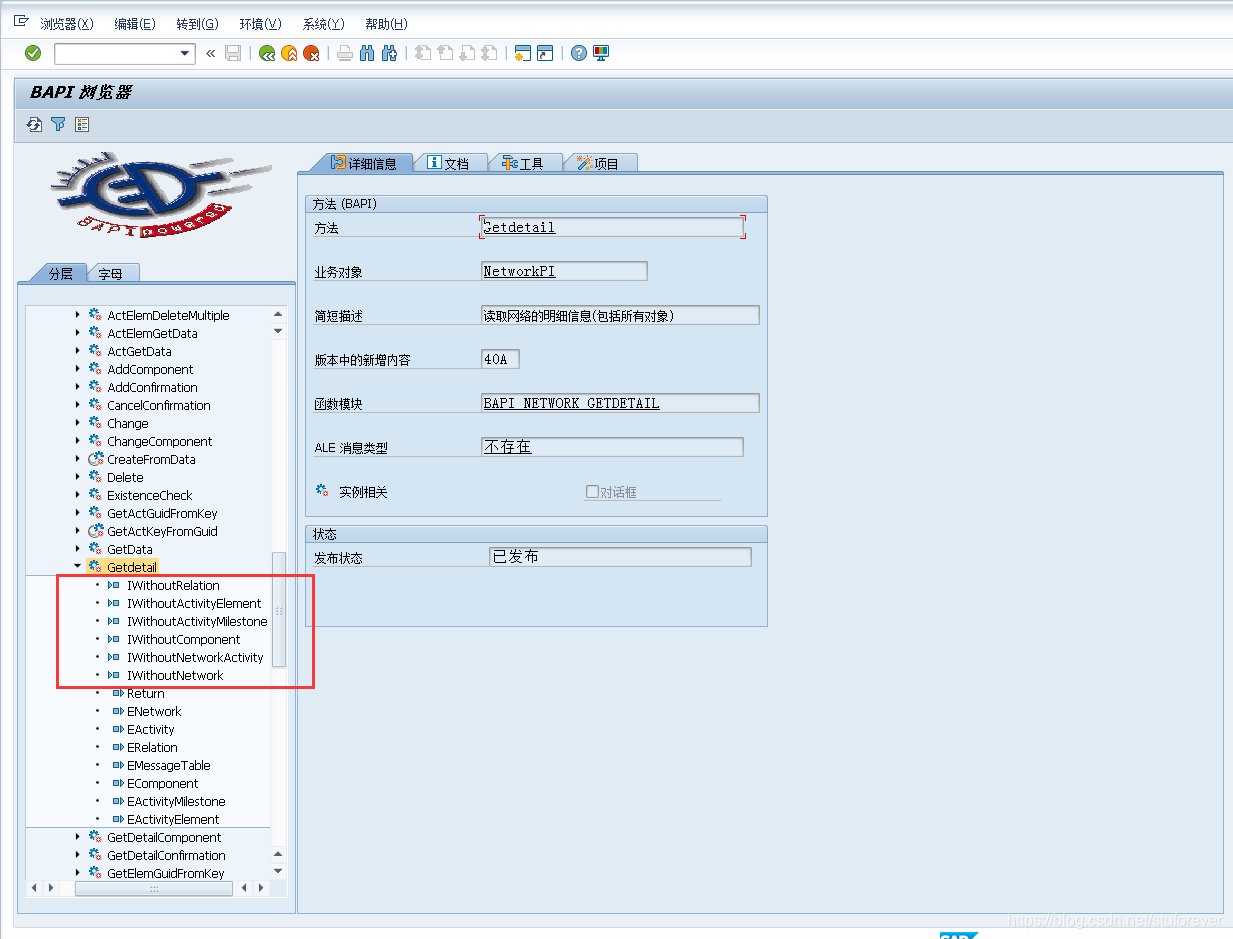

3.1.3 BAPI_NETWORK_GETDETAIL |读取网络的明细信息(包括所有对象),只能查询一个网络
输入：网络号（必选）、不返回网络（可选）、不返回活动（可选）、不返回关系（可选）、不返回活动元素（可选）、不返回活动里程碑（可选）、不返回物料组件（可选）
输出：网络、活动、关系、活动元素、里程碑、物料组件
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_NETWORK_GETDETAIL
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZLGZBAPI_NETWORK_GETDETAIL.
DATA:
"返回参数
ld_return TYPE BAPIRETURN1 ,
"网络号
ld_number TYPE BAPI_NETWORK_LIST-NETWORK ,
"是否返回网络
ld_i_without_network TYPE BAPINWGI-WO_NETWORK ,
"是否返回作业
ld_i_without_network_activity TYPE BAPINWGI-WO_NETWORK_ACT ,
"是否返回活动关系
ld_i_without_relation TYPE BAPINWGI-WO_RELATION ,
"是否返回作业元素
ld_i_without_activity_element TYPE BAPINWGI-WO_ACT_ELEMENT ,
"是否返回里程碑信息
ld_i_without_activity_mistone TYPE BAPINWGI-WO_ACT_MILESTONE ,
"是否返回物料组件信息
ld_i_without_component TYPE BAPINWGI-WO_COMPONENT ,
"返回的网络信息
it_e_network TYPE STANDARD TABLE OF BAPI_NETWORK_EXP ,
wa_e_network LIKE LINE OF it_e_network,
"返回的作业信息
it_e_activity TYPE STANDARD TABLE OF BAPI_NETWORK_ACTIVITY_EXP ,
wa_e_activity LIKE LINE OF it_e_activity,
"返回的活动关系
it_e_relation TYPE STANDARD TABLE OF BAPI_NETWORK_RELATION_EXP ,
wa_e_relation LIKE LINE OF it_e_relation,
"返回的里程碑信息
it_e_message_table TYPE STANDARD TABLE OF BAPI_METH_MESSAGE ,
wa_e_message_table LIKE LINE OF it_e_message_table,
"返回的作业元素信息
it_e_activity_element TYPE STANDARD TABLE OF BAPI_ACT_ELEMENT_EXP ,
wa_e_activity_element LIKE LINE OF it_e_activity_element,
"返回的里程碑信息信息
it_e_activity_milestone TYPE STANDARD TABLE OF BAPI_ACT_MILESTONE_EXP ,
wa_e_activity_milestone LIKE LINE OF it_e_activity_milestone,
"返回的物料组件信息
it_e_component TYPE STANDARD TABLE OF BAPI_COMPONENT_EXP ,
wa_e_component LIKE LINE OF it_e_component.
ld_number = '4500245'.
"populate fields of struture and append to itab
append wa_e_network to it_e_network.
ld_i_without_network = 'X'.
"populate fields of struture and append to itab
append wa_e_activity to it_e_activity.
ld_i_without_network_activity = 'X'.
"populate fields of struture and append to itab
append wa_e_relation to it_e_relation.
ld_i_without_relation = ''.
"populate fields of struture and append to itab
append wa_e_message_table to it_e_message_table.
ld_i_without_activity_element = ''.
"populate fields of struture and append to itab
append wa_e_activity_element to it_e_activity_element.
ld_i_without_activity_mistone = ''.
"populate fields of struture and append to itab
append wa_e_activity_milestone to it_e_activity_milestone.
ld_i_without_component = ''.
"populate fields of struture and append to itab
append wa_e_component to it_e_component.
.
CALL FUNCTION 'BAPI_NETWORK_GETDETAIL'
EXPORTING
number = ld_number
i_without_network = ld_i_without_network
i_without_network_activity = ld_i_without_network_activity
* i_without_relation = ld_i_without_relation
* i_without_activity_element = ld_i_without_activity_element
* i_without_activity_milestone = ld_i_without_activity_milestone
* i_without_component = ld_i_without_component
IMPORTING
return = ld_return
TABLES
e_network = it_e_network
e_activity = it_e_activity
e_relation = it_e_relation
e_message_table = it_e_message_table
e_activity_element = it_e_activity_element
e_activity_milestone = it_e_activity_milestone
e_component = it_e_component
. " BAPI_NETWORK_GETDETAIL
IF SY-SUBRC EQ 0.
"All OK
ENDIF.
BREAK-POINT.
3.1.4 BAPI_NETWORK_GETINFO |读取网络的详细信息 (包括所有对象) |可以查询多个网络
输入：网络号列表（必选）、不返回网络（可选）、不返回活动（可选）、不返回关系（可选）、不返回活动元素（可选）、不返回活动里程碑（可选）、不返回物料组件（可选）
输出：网络、活动、关系、活动元素、里程碑、物料组件
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_NETWORK_GETINFO
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZLGZBAPI_NETWORK_GETINFO.
DATA:
"返回参数
ld_return TYPE BAPIRETURN1 ,
"网络号内表
it_BAPI_NETWORK_LIST type STANDARD TABLE OF BAPI_NETWORK_LIST,
wa_BAPI_NETWORK_LIST type BAPI_NETWORK_LIST,
"是否返回网络
ld_i_without_network TYPE BAPINWGI-WO_NETWORK ,
"是否返回作业
ld_i_without_network_activity TYPE BAPINWGI-WO_NETWORK_ACT ,
"是否返回活动关系
ld_i_without_relation TYPE BAPINWGI-WO_RELATION ,
"是否返回作业元素
ld_i_without_activity_element TYPE BAPINWGI-WO_ACT_ELEMENT ,
"是否返回里程碑信息
ld_i_without_activity_mistone TYPE BAPINWGI-WO_ACT_MILESTONE ,
"是否返回物料组件信息
ld_i_without_component TYPE BAPINWGI-WO_COMPONENT ,
"返回的网络信息
it_e_network TYPE STANDARD TABLE OF BAPI_NETWORK_EXP ,
wa_e_network LIKE LINE OF it_e_network,
"返回的作业信息
it_e_activity TYPE STANDARD TABLE OF BAPI_NETWORK_ACTIVITY_EXP ,
wa_e_activity LIKE LINE OF it_e_activity,
"返回的活动关系
it_e_relation TYPE STANDARD TABLE OF BAPI_NETWORK_RELATION_EXP ,
wa_e_relation LIKE LINE OF it_e_relation,
"返回的里程碑信息
it_e_message_table TYPE STANDARD TABLE OF BAPI_METH_MESSAGE ,
wa_e_message_table LIKE LINE OF it_e_message_table,
"返回的作业元素信息
it_e_activity_element TYPE STANDARD TABLE OF BAPI_ACT_ELEMENT_EXP ,
wa_e_activity_element LIKE LINE OF it_e_activity_element,
"返回的里程碑信息信息
it_e_activity_milestone TYPE STANDARD TABLE OF BAPI_ACT_MILESTONE_EXP ,
wa_e_activity_milestone LIKE LINE OF it_e_activity_milestone,
"返回的物料组件信息
it_e_component TYPE STANDARD TABLE OF BAPI_COMPONENT_EXP ,
wa_e_component LIKE LINE OF it_e_component.
wa_BAPI_NETWORK_LIST-NETWORK = '4500245'.
APPEND wa_BAPI_NETWORK_LIST to it_BAPI_NETWORK_LIST.
wa_BAPI_NETWORK_LIST-NETWORK = '4500249'.
APPEND wa_BAPI_NETWORK_LIST to it_BAPI_NETWORK_LIST.
"populate fields of struture and append to itab
append wa_e_network to it_e_network.
ld_i_without_network = 'X'.
"populate fields of struture and append to itab
append wa_e_activity to it_e_activity.
ld_i_without_network_activity = 'X'.
"populate fields of struture and append to itab
append wa_e_relation to it_e_relation.
ld_i_without_relation = ''.
"populate fields of struture and append to itab
append wa_e_message_table to it_e_message_table.
ld_i_without_activity_element = ''.
"populate fields of struture and append to itab
append wa_e_activity_element to it_e_activity_element.
ld_i_without_activity_mistone = ''.
"populate fields of struture and append to itab
append wa_e_activity_milestone to it_e_activity_milestone.
ld_i_without_component = ''.
"populate fields of struture and append to itab
append wa_e_component to it_e_component.
.
CALL FUNCTION 'BAPI_NETWORK_GETINFO'
* EXPORTING
* I_WITHOUT_NETWORK = ld_i_without_network
* I_WITHOUT_NETWORK_ACTIVITY = ld_i_without_network_activity
* I_WITHOUT_RELATION =
* I_WITHOUT_ACTIVITY_ELEMENT =
* I_WITHOUT_ACTIVITY_MILESTONE =
* I_WITHOUT_COMPONENT =
IMPORTING
RETURN = ld_return
TABLES
i_network_list = it_BAPI_NETWORK_LIST "输入网络号的清单列表
E_NETWORK = it_e_network
E_ACTIVITY = it_e_activity
E_RELATION = it_e_relation
E_MESSAGE_TABLE = it_e_message_table
E_ACTIVITY_ELEMENT = it_e_activity_element
E_ACTIVITY_MILESTONE = it_e_activity_milestone
E_COMPONENT = it_e_component
.
IF SY-SUBRC EQ 0.
"All OK
ENDIF.
BREAK-POINT.
3.2 网络新增
3.2.1 BAPI_BUS2002_CREATE |创建网络 |
输入：网络对象信息
输出：
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_BUS2002_CREATE
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZLGZBAPI_BUS2002_CREATE.
"定义返回参数
data:
it_BAPI_BUS2002_NEW type STANDARD TABLE OF BAPI_BUS2002_NEW,
wa_BAPI_BUS2002_NEW type BAPI_BUS2002_NEW,
it_BAPIRET2 type STANDARD TABLE OF BAPIRET2,
wa_BAPIRET2 type BAPIRET2.
CLEAR : wa_BAPI_BUS2002_NEW.
wa_BAPI_BUS2002_NEW-project_definition = 'LGZXS002'. "项目定义
wa_BAPI_BUS2002_NEW-wbs_element = 'LGZXS00212'. "工作分解结构元素 (WBS 元素)
wa_BAPI_BUS2002_NEW-short_text = 'BAPI测试创建网络'. "描述
wa_BAPI_BUS2002_NEW-NETWORK_TYPE ='ZP68'."网络类型
wa_BAPI_BUS2002_NEW-plant = '8810'. "工厂
wa_BAPI_BUS2002_NEW-mrp_controller = '881'. "MRP控制者
CALL FUNCTION 'BAPI_PS_INITIALIZATION'.
CALL FUNCTION 'BAPI_BUS2002_CREATE'
EXPORTING
i_network = wa_BAPI_BUS2002_NEW
TABLES
et_return = it_BAPIRET2.
"第四步：判断是否有错误消息
LOOP AT it_BAPIRET2 INTO wa_bapiret2 WHERE type CA 'AE'.
MESSAGE ID wa_bapiret2-id TYPE wa_bapiret2-type NUMBER wa_bapiret2-number
INTO wa_bapiret2-message
WITH wa_bapiret2-message_v1 wa_bapiret2-message_v2
wa_bapiret2-message_v3 wa_bapiret2-message_v4.
WRITE:/ '创建时报错:',wa_bapiret2-message.
ENDLOOP.
"第四步：如果有错误消息则退出
IF sy-subrc EQ 0.
CALL FUNCTION 'PS_FLAG_INIT_GLOBAL_FLAGS'.
CALL FUNCTION 'PS_FLAG_SET_GLOBAL_FLAGS'
EXPORTING
i_precommit_ok = 'Y'.
ENDIF.
CHECK sy-subrc NE 0.
"第四步：没有错误消息则执行预提交
CALL FUNCTION 'BAPI_PS_PRECOMMIT'
TABLES
et_return = it_BAPIRET2.
LOOP AT it_BAPIRET2 INTO wa_bapiret2 WHERE type CA 'AE'.
MESSAGE ID wa_bapiret2-id TYPE wa_bapiret2-type NUMBER wa_bapiret2-number
INTO wa_bapiret2-message
WITH wa_bapiret2-message_v1 wa_bapiret2-message_v2
wa_bapiret2-message_v3 wa_bapiret2-message_v4.
WRITE:/ '预提交时报错:',wa_bapiret2-message.
ENDLOOP.
"第五步：预提交有错误消息则执行回滚
IF sy-subrc EQ 0.
CALL FUNCTION 'BAPI_TRANSACTION_ROLLBACK'
IMPORTING
return = it_BAPIRET2.
CALL FUNCTION 'PS_FLAG_INIT_GLOBAL_FLAGS'.
CALL FUNCTION 'PS_FLAG_SET_GLOBAL_FLAGS'
EXPORTING
i_precommit_ok = 'Y'.
ELSE.
"第五步：预提交无错误消息则执行正式提交
CALL FUNCTION 'BAPI_TRANSACTION_COMMIT'
EXPORTING
wait = 'X'
IMPORTING
return = wa_BAPIRET2.
WRITE:/ '网络创建成功:',wa_bapiret2-message.
* WBS元素创建成功
ENDIF.
3.3 网络删除
3.3.1 BAPI_BUS2002_DELETE|删除网络 |
输入：网络号
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_BUS2002_DELETE
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZLGZBAPI_BUS2002_DELETE.
"第一步，判断网络是否存在
data:
is_network_exist type BAPI_NETWORK_LIST-NETWORK,
it_BAPIRETURN1 type STANDARD TABLE OF BAPIRETURN1,
wa_BAPIRETURN1 type BAPIRETURN1,
it_BAPIRET2 type STANDARD TABLE OF BAPIRET2,
wa_BAPIRET2 type BAPIRET2.
is_network_exist = '4500300'.
CALL FUNCTION 'BAPI_NETWORK_EXISTENCECHECK'
EXPORTING
number = is_network_exist
IMPORTING
RETURN = wa_BAPIRETURN1
.
IF wa_BAPIRETURN1-TYPE = 'E'.
WRITE:/ '网络不存在:',is_network_exist.
ENDIF.
CALL FUNCTION 'BAPI_PS_INITIALIZATION'.
CALL FUNCTION 'BAPI_BUS2002_DELETE'
EXPORTING
i_number = is_network_exist
TABLES
ET_RETURN = it_BAPIRET2
* EXTENSIONIN =
* EXTENSIONOUT =
.
"第四步：判断是否有错误消息
LOOP AT it_BAPIRET2 INTO wa_bapiret2 WHERE type CA 'AE'.
MESSAGE ID wa_bapiret2-id TYPE wa_bapiret2-type NUMBER wa_bapiret2-number
INTO wa_bapiret2-message
WITH wa_bapiret2-message_v1 wa_bapiret2-message_v2
wa_bapiret2-message_v3 wa_bapiret2-message_v4.
WRITE:/ '创建时报错:',wa_bapiret2-message.
ENDLOOP.
"第四步：如果有错误消息则退出
IF sy-subrc EQ 0.
CALL FUNCTION 'PS_FLAG_INIT_GLOBAL_FLAGS'.
CALL FUNCTION 'PS_FLAG_SET_GLOBAL_FLAGS'
EXPORTING
i_precommit_ok = 'Y'.
ENDIF.
CHECK sy-subrc NE 0.
"第四步：没有错误消息则执行预提交
CALL FUNCTION 'BAPI_PS_PRECOMMIT'
TABLES
et_return = it_BAPIRET2.
LOOP AT it_BAPIRET2 INTO wa_bapiret2 WHERE type CA 'AE'.
MESSAGE ID wa_bapiret2-id TYPE wa_bapiret2-type NUMBER wa_bapiret2-number
INTO wa_bapiret2-message
WITH wa_bapiret2-message_v1 wa_bapiret2-message_v2
wa_bapiret2-message_v3 wa_bapiret2-message_v4.
WRITE:/ '预提交时报错:',wa_bapiret2-message.
ENDLOOP.
"第五步：预提交有错误消息则执行回滚
IF sy-subrc EQ 0.
CALL FUNCTION 'BAPI_TRANSACTION_ROLLBACK'
IMPORTING
return = it_BAPIRET2.
CALL FUNCTION 'PS_FLAG_INIT_GLOBAL_FLAGS'.
CALL FUNCTION 'PS_FLAG_SET_GLOBAL_FLAGS'
EXPORTING
i_precommit_ok = 'Y'.
ELSE.
"第五步：预提交无错误消息则执行正式提交
CALL FUNCTION 'BAPI_TRANSACTION_COMMIT'
EXPORTING
wait = 'X'
IMPORTING
return = wa_BAPIRET2.
WRITE:/ '网络删除成功:',wa_bapiret2-message.
* WBS元素创建成功
ENDIF.
BREAK-POINT.
4 活动（作业）
| 序号 | 业务分类 | 作用类别 | 名 | 主要作用 |
|---|---|---|---|---|
| 1 | 活动 | 查询类 | BAPI_BUS2002_ACT_GETDATA | 活动的详细数据 |
| 2 | 活动 | 新增类 | BAPI_BUS2002_ACT_CREATE_MULTI | 清单: 创建网络活动 |
| 3 | 活动 | 更改类 | BAPI_BUS2002_ACT_CHANGE_MULTI | 清单: 更改网络活动 |
| 4 | 活动 | 删除类 | BAPI_BUS2002_ACT_DELETE_MULTI | 清单: 删除网络活动 |
4.1 BAPI_BUS2002_ACT_GETDATA |活动的详细数据 |
输入：网络号（必选）、活动列表（可选）、语言（可选）、最大显示行（可选）等信息
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_BUS2002_ACT_GETDATA
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZLGZBAPI_BUS2002_ACT_GETDATA.
"第一步，数据定义
DATA:
"输入
it_it_activity_list TYPE STANDARD TABLE OF BAPI_ACTIVITY_LIST,"活动（作业）列表定义
wa_it_activity_list LIKE LINE OF it_it_activity_list ,
ld_i_network_number TYPE BAPI_BUS2002_ACT_DETAIL-NETWORK ,
ld_i_max_rows TYPE BAPIF4A-MAX_ROWS ,
ld_i_language TYPE BAPI_BUS2002_ACT_DETAIL-LANGU_ISO ,
"输出
it_et_activities TYPE STANDARD TABLE OF BAPI_BUS2002_ACT_DETAIL,"TABLES PARAM
wa_et_activities LIKE LINE OF it_et_activities ,
it_et_return TYPE STANDARD TABLE OF BAPIRET2,"TABLES PARAM
wa_et_return LIKE LINE OF it_et_return ,
it_extensionin TYPE STANDARD TABLE OF BAPIPAREX,"TABLES PARAM
wa_extensionin LIKE LINE OF it_extensionin ,
it_extensionout TYPE STANDARD TABLE OF BAPIPAREX,"TABLES PARAM
wa_extensionout LIKE LINE OF it_extensionout .
"第二步，数据赋值
ld_i_network_number = '4500245'."网络号
ld_i_language = 'ZH'."语言
ld_i_max_rows = 123 ."最大显示行
"输入，将活动结构放到内表
"populate fields of struture and append to itab
append wa_it_activity_list to it_it_activity_list.
CALL FUNCTION 'BAPI_BUS2002_ACT_GETDATA'
EXPORTING
i_network_number = ld_i_network_number
i_language = ld_i_language
i_max_rows = ld_i_max_rows
TABLES
* it_activity_list = it_it_activity_list
et_activities = it_et_activities
et_return = it_et_return
* extensionin = it_extensionin
* extensionout = it_extensionout
. " BAPI_BUS2002_ACT_GETDATA
IF SY-SUBRC EQ 0.
CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY_LVC'
EXPORTING
* I_INTERFACE_CHECK = ' '
* I_BYPASSING_BUFFER =
* I_BUFFER_ACTIVE =
* I_CALLBACK_PROGRAM = ' '
* I_CALLBACK_PF_STATUS_SET = ' '
* I_CALLBACK_USER_COMMAND = ' '
* I_CALLBACK_TOP_OF_PAGE = ' '
* I_CALLBACK_HTML_TOP_OF_PAGE = ' '
* I_CALLBACK_HTML_END_OF_LIST = ' '
I_STRUCTURE_NAME = 'BAPI_BUS2002_ACT_DETAIL'
* I_BACKGROUND_ID = ' '
* I_GRID_TITLE =
* I_GRID_SETTINGS =
* IS_LAYOUT_LVC =
* IT_FIELDCAT_LVC =
* IT_EXCLUDING =
* IT_SPECIAL_GROUPS_LVC =
* IT_SORT_LVC =
* IT_FILTER_LVC =
* IT_HYPERLINK =
* IS_SEL_HIDE =
* I_DEFAULT = 'X'
* I_SAVE = ' '
* IS_VARIANT =
* IT_EVENTS =
* IT_EVENT_EXIT =
* IS_PRINT_LVC =
* IS_REPREP_ID_LVC =
* I_SCREEN_START_COLUMN = 0
* I_SCREEN_START_LINE = 0
* I_SCREEN_END_COLUMN = 0
* I_SCREEN_END_LINE = 0
* I_HTML_HEIGHT_TOP =
* I_HTML_HEIGHT_END =
* IT_ALV_GRAPHICS =
* IT_EXCEPT_QINFO_LVC =
* IR_SALV_FULLSCREEN_ADAPTER =
* IMPORTING
* E_EXIT_CAUSED_BY_CALLER =
* ES_EXIT_CAUSED_BY_USER =
TABLES
t_outtab = it_et_activities
* EXCEPTIONS
* PROGRAM_ERROR = 1
* OTHERS = 2
.
ENDIF.
4.2 BAPI_BUS2002_ACT_CREATE_MULTI |清单: 创建网络活动 |
输入：网络号（必选）、活动信息（必选）
输出：
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_BUS2002_ACT_CREATE_MU
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZLGZBAPI_BUS2002_ACT_CREATE_MU.
"第一步：定义变量
data:
"定义网络号
I_NUMBER type BAPI_NETWORK_LIST-NETWORK,
"定义输入活动
it_BAPI_BUS2002_ACT_NEW type STANDARD TABLE OF BAPI_BUS2002_ACT_NEW,
wa_BAPI_BUS2002_ACT_NEW type BAPI_BUS2002_ACT_NEW,
"定义返回参数
it_BAPIRET2 type STANDARD TABLE OF BAPIRET2,
wa_BAPIRET2 type BAPIRET2.
"第二步：赋值
""网络号
I_NUMBER = '4500245'.
"作业赋值
wa_BAPI_BUS2002_ACT_NEW-activity = '0020'. "在网络和库网络中的作业编号
wa_BAPI_BUS2002_ACT_NEW-description = 'BAPI创建活动测试'. "工序短文本
wa_BAPI_BUS2002_ACT_NEW-control_key = 'LG01'. "控制码-内协(ZPS1)和成本（ZPS3）
wa_BAPI_BUS2002_ACT_NEW-wbs_element = 'LGZXS00212'. "工作分解结构元素 (WBS 元素)
wa_BAPI_BUS2002_ACT_NEW-work_cntr = ''. "工作中心
wa_BAPI_BUS2002_ACT_NEW-work_activity = ''. "工作（时间单位H）
wa_BAPI_BUS2002_ACT_NEW-calculation_key = 0. "用于计算的码
wa_BAPI_BUS2002_ACT_NEW-acttype = ''. "活动类型
wa_BAPI_BUS2002_ACT_NEW-cost_elem = ''. "成本要素编码
wa_BAPI_BUS2002_ACT_NEW-profit_ctr = ''. "利润中心
wa_BAPI_BUS2002_ACT_NEW-activity_costs = ''. "作业中的成本
APPEND wa_BAPI_BUS2002_ACT_NEW to it_BAPI_BUS2002_ACT_NEW.
"第三步：调用函数
CALL FUNCTION 'BAPI_PS_INITIALIZATION'.
CALL FUNCTION 'BAPI_BUS2002_ACT_CREATE_MULTI'
EXPORTING
i_number = I_NUMBER
TABLES
it_activity = it_BAPI_BUS2002_ACT_NEW
et_return = it_BAPIRET2.
"第四步：判断是否有错误消息
LOOP AT it_BAPIRET2 INTO wa_bapiret2 WHERE type CA 'AE'.
MESSAGE ID wa_bapiret2-id TYPE wa_bapiret2-type NUMBER wa_bapiret2-number
INTO wa_bapiret2-message
WITH wa_bapiret2-message_v1 wa_bapiret2-message_v2
wa_bapiret2-message_v3 wa_bapiret2-message_v4.
WRITE:/ '创建时报错:',wa_bapiret2-message.
ENDLOOP.
"第四步：如果有错误消息则退出
IF sy-subrc EQ 0.
CALL FUNCTION 'PS_FLAG_INIT_GLOBAL_FLAGS'.
CALL FUNCTION 'PS_FLAG_SET_GLOBAL_FLAGS'
EXPORTING
i_precommit_ok = 'Y'.
ENDIF.
CHECK sy-subrc NE 0.
"第四步：没有错误消息则执行预提交
CALL FUNCTION 'BAPI_PS_PRECOMMIT'
TABLES
et_return = it_BAPIRET2.
LOOP AT it_BAPIRET2 INTO wa_bapiret2 WHERE type CA 'AE'.
MESSAGE ID wa_bapiret2-id TYPE wa_bapiret2-type NUMBER wa_bapiret2-number
INTO wa_bapiret2-message
WITH wa_bapiret2-message_v1 wa_bapiret2-message_v2
wa_bapiret2-message_v3 wa_bapiret2-message_v4.
WRITE:/ '预提交时报错:',wa_bapiret2-message.
ENDLOOP.
"第五步：预提交有错误消息则执行回滚
IF sy-subrc EQ 0.
CALL FUNCTION 'BAPI_TRANSACTION_ROLLBACK'
IMPORTING
return = it_BAPIRET2.
CALL FUNCTION 'PS_FLAG_INIT_GLOBAL_FLAGS'.
CALL FUNCTION 'PS_FLAG_SET_GLOBAL_FLAGS'
EXPORTING
i_precommit_ok = 'Y'.
ELSE.
"第五步：预提交无错误消息则执行正式提交
CALL FUNCTION 'BAPI_TRANSACTION_COMMIT'
EXPORTING
wait = 'X'
IMPORTING
return = wa_BAPIRET2.
WRITE:/ '活动（作业）创建成功:',wa_bapiret2-message.
* WBS元素创建成功
ENDIF.
4.3 BAPI_BUS2002_ACT_CHANGE_MULTI|清单: 更改网络活动
5 物料组件
| 序号 | 业务分类 | 作用类别 | 名 | 主要作用 |
|---|---|---|---|---|
| 1 | 活动 | 查询类 | BAPI_NETWORK_COMP_GETLIST | 网络所有组件的清单 |
| 2 | 活动 | 查询类 | BAPI_NETWORK_COMP_GETDETAIL | 网络作业物料组件的详述数据 |
| 3 | 活动 | 更改类 | BAPI_NETWORK_COMP_ADD | 为网络填加物料组件 |
| 3 | 活动 | 更改类 | BAPI_NETWORK_COMP_CHANGE | 为网络更改物料组件 |
| 4 | 活动 | 删除类 | BAPI_NETWORK_COMP_REMOVE | 从网络中删除物料组件 |
5.1 BAPI_NETWORK_COMP_GETLIST |网络所有组件的清单 |
输入：网络号（必输）、显示内容（可选）、range
输出：物料组件列表（必选）
注意前导零。
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_NETWORK_COMP_GETLIST
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZLGZBAPI_NETWORK_COMP_GETLIST.
"第一步，定义变量
DATA:
"输入
ld_number TYPE BAPI_NETWORK_LIST-NETWORK ,"网络号
"活动的范围range
it_i_activity_range TYPE STANDARD TABLE OF BAPI_NETWORK_COMP_ACT_RNG ,
wa_i_activity_range LIKE LINE OF it_i_activity_range,
"最大显示行
ld_max_rows TYPE BAPIF4A-MAX_ROWS ,
it_e_components_list TYPE STANDARD TABLE OF BAPI_NETWORK_COMP_LIST ,
wa_e_components_list LIKE LINE OF it_e_components_list,
"返回值
ld_return TYPE BAPIRET2 .
ld_number = '000004500249'.
"populate fields of struture and append to itab
append wa_i_activity_range to it_i_activity_range.
ld_max_rows = 123 .
"populate fields of struture and append to itab
append wa_e_components_list to it_e_components_list.
.
CALL FUNCTION 'BAPI_NETWORK_COMP_GETLIST'
EXPORTING
number = ld_number
max_rows = ld_max_rows
IMPORTING
return = ld_return
TABLES
* i_activity_range = it_i_activity_range
e_components_list = it_e_components_list
. " BAPI_NETWORK_COMP_GETLIST
IF SY-SUBRC EQ 0.
"All OK
ENDIF.
BREAK-POINT.
5.2 BAPI_NETWORK_COMP_GETDETAIL|网络作业物料组件的详述数据
只比上个查询多一个物料号的条件，但是详细信息很丰富，只有这个详细信息才能达到创建的条件的哦
输入：网络号（必输）、显示内容range（可选）、物料组件唯一编号（预留+流水）
输出：组件信息，非常详细。
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_NETWORK_COMP_GETLIST
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZLGZBAPI_NETWORK_COMP_GETLIST.
"第一步，定义变量
DATA:
"输入
ld_number TYPE BAPI_NETWORK_LIST-NETWORK ,"网络号
"活动的范围range
it_i_activity_range TYPE STANDARD TABLE OF BAPI_NETWORK_COMP_ACT_RNG ,
wa_i_activity_range LIKE LINE OF it_i_activity_range,
"最大显示行
ld_max_rows TYPE BAPIF4A-MAX_ROWS ,
"组件ID
ld_BAPI_NETWORK_COMP_ID like BAPI_NETWORK_COMP_ID,
it_BAPI_NETWORK_COMP_ID like TABLE OF BAPI_NETWORK_COMP_ID,
"输出物料组件列表信息
it_e_components_list TYPE STANDARD TABLE OF BAPI_NETWORK_COMP_LIST ,
wa_e_components_list LIKE LINE OF it_e_components_list,
"输出物料组件详细信息
it_BAPI_NETWORK_COMP_DETAIL TYPE STANDARD TABLE OF BAPI_NETWORK_COMP_DETAIL,
wa_BAPI_NETWORK_COMP_DETAIL LIKE LINE OF it_BAPI_NETWORK_COMP_DETAIL,
"返回值
ld_return TYPE BAPIRET2 .
ld_number = '000004500249'.
ld_BAPI_NETWORK_COMP_ID-COMPONENT = '00005018220001'."这儿不是物料编号，是预留的唯一编号+预留序号
APPEND ld_BAPI_NETWORK_COMP_ID to it_BAPI_NETWORK_COMP_ID.
"populate fields of struture and append to itab
append wa_i_activity_range to it_i_activity_range.
ld_max_rows = 123 .
"populate fields of struture and append to itab
append wa_e_components_list to it_e_components_list.
.
CALL FUNCTION 'BAPI_NETWORK_COMP_GETLIST'
EXPORTING
number = ld_number
max_rows = ld_max_rows
IMPORTING
return = ld_return
TABLES
* i_activity_range = it_i_activity_range
e_components_list = it_e_components_list
. " BAPI_NETWORK_COMP_GETLIST
IF SY-SUBRC EQ 0.
"All OK
ENDIF.
CALL FUNCTION 'BAPI_NETWORK_COMP_GETDETAIL'
EXPORTING
number = ld_number
* MAX_ROWS = 0
IMPORTING
RETURN = ld_return
tables
* I_ACTIVITY_RANGE =
I_COMPONENTS_ID = it_BAPI_NETWORK_COMP_ID
e_components_detail = it_BAPI_NETWORK_COMP_DETAIL
.
BREAK-POINT.
5.3 BAPI_NETWORK_COMP_ADD|为网络填加物料组件 |
输入：网络号（必选）以及组件信息（必选）
输出：日志
注意：决定采购类型的是TYPE_OF_PUR_RESV字段，一般会将TYPE_OF_PUR_RESV与采购标识符做个影射，前台选择采购标识符，具体可参见团子大神文章。《跟着团子学SAP PS—项目中的物料需求逻辑及导入程序设计要点（采购标识符/BAPI_NETWORK_COMP_ADD）》
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_NETWORK_COMP_ADD
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT zlgzbapi_network_comp_add.
"第一步，定义变量
"输入，网络号
DATA:
i_NUMBER TYPE bapi_network_list-network,
"输入的组件信息
wa_I_COMPONENTS_ADD TYPE BAPI_NETWORK_COMP_ADD,
it_I_COMPONENTS_ADD TYPE STANDARD TABLE OF BAPI_NETWORK_COMP_ADD,
"输出
wa_BAPIRET2 TYPE bapiret2,
it_BAPIRET2 TYPE STANDARD TABLE OF bapiret2,
"输出的消息信息
wa_E_MESSAGE_TABLE TYPE bapi_meth_message,
it_E_MESSAGE_TABLE TYPE STANDARD TABLE OF bapi_meth_message.
"第二步，变量赋值
"网络编号
i_NUMBER = '000004500249'.
"物料组件
wa_I_COMPONENTS_ADD-activity = '0010'. "活动编号
wa_I_COMPONENTS_ADD-TYPE_OF_PUR_RESV = '5'. "采购类型
wa_I_COMPONENTS_ADD-material = '000000000068100001'."物料号
wa_I_COMPONENTS_ADD-entry_quantity = '188'. "数量
wa_I_COMPONENTS_ADD-PUR_GROUP = '881'."采购组
wa_I_COMPONENTS_ADD-req_date = '20210830'."需求日期
wa_I_COMPONENTS_ADD-item_text = '测试bapi物料挂载'. "项目文本行
wa_I_COMPONENTS_ADD-item_cat = 'L'.
wa_I_COMPONENTS_ADD-base_uom = 'BT'. "基本计量单位
APPEND wa_I_COMPONENTS_ADD to it_I_COMPONENTS_ADD.
"第三步：调用函数
CALL FUNCTION 'BAPI_PS_INITIALIZATION'.
CALL FUNCTION 'BAPI_NETWORK_COMP_ADD'
EXPORTING
number = i_NUMBER
IMPORTING
RETURN = wa_BAPIRET2
tables
i_components_add = it_I_COMPONENTS_ADD
e_message_table = it_E_MESSAGE_TABLE
.
APPEND wa_BAPIRET2 to it_BAPIRET2.
"第四步：判断是否有错误消息
LOOP AT it_BAPIRET2 INTO wa_bapiret2 WHERE type CA 'AE'.
MESSAGE ID wa_bapiret2-id TYPE wa_bapiret2-type NUMBER wa_bapiret2-number
INTO wa_bapiret2-message
WITH wa_bapiret2-message_v1 wa_bapiret2-message_v2
wa_bapiret2-message_v3 wa_bapiret2-message_v4.
WRITE:/ '创建时报错:',wa_bapiret2-message.
ENDLOOP.
"第四步：如果有错误消息则退出
IF sy-subrc EQ 0.
CALL FUNCTION 'PS_FLAG_INIT_GLOBAL_FLAGS'.
CALL FUNCTION 'PS_FLAG_SET_GLOBAL_FLAGS'
EXPORTING
i_precommit_ok = 'Y'.
ENDIF.
CHECK sy-subrc NE 0.
"第四步：没有错误消息则执行预提交
CALL FUNCTION 'BAPI_PS_PRECOMMIT'
TABLES
et_return = it_BAPIRET2.
LOOP AT it_BAPIRET2 INTO wa_bapiret2 WHERE type CA 'AE'.
MESSAGE ID wa_bapiret2-id TYPE wa_bapiret2-type NUMBER wa_bapiret2-number
INTO wa_bapiret2-message
WITH wa_bapiret2-message_v1 wa_bapiret2-message_v2
wa_bapiret2-message_v3 wa_bapiret2-message_v4.
WRITE:/ '预提交时报错:',wa_bapiret2-message.
ENDLOOP.
"第五步：预提交有错误消息则执行回滚
IF sy-subrc EQ 0.
CALL FUNCTION 'BAPI_TRANSACTION_ROLLBACK'
IMPORTING
return = it_BAPIRET2.
CALL FUNCTION 'PS_FLAG_INIT_GLOBAL_FLAGS'.
CALL FUNCTION 'PS_FLAG_SET_GLOBAL_FLAGS'
EXPORTING
i_precommit_ok = 'Y'.
ELSE.
"第五步：预提交无错误消息则执行正式提交
CALL FUNCTION 'BAPI_TRANSACTION_COMMIT'
EXPORTING
wait = 'X'
IMPORTING
return = wa_BAPIRET2.
WRITE:/ '活动（作业）创建成功:',wa_bapiret2-message.
* WBS元素创建成功
ENDIF.
5.4 BAPI_NETWORK_COMP_CHANGE|为网络更改物料组件 |
5.5 BAPI_NETWORK_COMP_REMOVE|从网络中删除物料组件 |
6 项目预算BAPI
KBPP_EXTERN_UPDATE_CO
1、一定要先修改顶层WBS，再一层一层往下修改，不然的话，检查上层预算不够，就会报错
2、i_delta_amounts这个参数等于’X’的话，就是追加，等于’’，就是修改
3、i_rollup_data这个参数等于’X’的话，就会自动往上层的WBS上加预算，等于’’，就不会自动加
REPORT ZLGZKBPP_EXTERN_UPDATE_CO.
tables: prps.
DATA: lt_bpak TYPE STANDARD TABLE OF bpak WITH HEADER LINE."预算/计划更新
DATA:lt_bpak_n TYPE STANDARD TABLE OF bpak WITH HEADER LINE. "预算/计划更新，年度预算
DATA: lt_retturn TYPE STANDARD TABLE OF bapiret2 WITH HEADER LINE. "返回参数
DATA: l_wtjhr like bpak-wert. " 预算金额
*select-options l_pspnr for prps-pspnr.
PARAMETER: l_pspnr like prps-pspnr. "WBS编号
PARAMETER: l_bpwert like bpak-wert." 预算金额
PARAMETER: P_vorga LIKE BPIN-VORGA. "应用类型 cj30 using KBUD; cj32 using KBFR;cj40 using KBN0
start-of-selection.
* "转换内码
* DATA: l_pspnr LIKE prps-pspnr.
* CALL FUNCTION 'CONVERSION_EXIT_ABPSP_INPUT'
* EXPORTING
* input = l_pspnri
* IMPORTING
* output = l_pspnr
* EXCEPTIONS
* not_found = 1
* OTHERS = 2.
* IF sy-subrc <> 0.
* MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
* WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
* ENDIF.
clear: l_wtjhr. " 清空预算金额
SELECT SINGLE objnr INTO lt_bpak-e_objnr FROM prps WHERE pspnr = l_pspnr. "根据输入的WBS，把WBS的对象号放到 内表中
IF sy-subrc EQ 0.
"找到WBS以后做以下赋值
lt_bpak-e_vorga = 'KBFR'. "预算类型预算/计划
lt_bpak-twaer = 'CNY'. "币种
lt_bpak-wert = l_bpwert. "预算金额
APPEND lt_bpak.
SELECT wtjhr INTO l_wtjhr FROM bpja
WHERE objnr = lt_bpak-e_objnr "根据对象编号，去BPJA年度预算表查询年度预算金额，放到l_wtjhr中
AND wrttp = '41'
AND vorga = 'KBUD'
AND twaer = 'CNY'
AND gjahr = '2021'.
lt_bpak-wert = lt_bpak-wert + l_wtjhr.
CLEAR l_wtjhr.
ENDSELECT.
"也把金额同步拷贝到lt_bpak_n内表一份，为年度预算使用
MOVE-CORRESPONDING lt_bpak TO lt_bpak_n.
lt_bpak_n-wert = l_bpwert.
lt_bpak_n-S_GJAHR = '2021'. " add year to change data belong this year 发送方年度
lt_bpak_n-E_GJAHR = '2021'. "if not add ; change total budget ，接收方年度
APPEND lt_bpak_n.
ENDIF.
CLEAR: lt_bpak,lt_bpak_n.
*i_delta_amounts这个参数等于'X'的话，就是追加，等于''，就是修改
*i_rollup_data这个参数等于'X'的话，就会自动往上层的WBS上加预算，等于''，就不会自动加
*一定要先修改顶层WBS，再一层一层往下修改，不然的话，检查上层预算不够，就会报错
CALL FUNCTION 'KBPP_EXTERN_UPDATE_CO'
EXPORTING
i_budget_activity = 'KBUD'
* i_budget_activ_sup_ret = 'X'
* I_COMMIT_DATA = 'X'
i_delta_amounts = ''
i_rollup_data = ''
* I_CHECK_PLAN_DATA = 'X'
* i_application = 'P'
i_commit_all = 'X'
* IMPORTING
* E_ERRORS_FOUND =
TABLES
it_bpak = lt_bpak[]
it_return = lt_retturn[]
EXCEPTIONS
no_update = 1
OTHERS = 2
.
IF sy-subrc <> 0.
MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
ENDIF.
**修改年度预算
REFRESH lt_retturn.
CALL FUNCTION 'KBPP_EXTERN_UPDATE_CO'
EXPORTING
i_budget_activity = 'KBUD'
* i_budget_activ_sup_ret = 'X'
* I_COMMIT_DATA = 'X'
i_delta_amounts = ''
i_rollup_data = ''
* I_CHECK_PLAN_DATA = 'X'
i_application = 'P'
i_commit_all = 'X'
* IMPORTING
* E_ERRORS_FOUND =
TABLES
it_bpak = lt_bpak_n[]
it_return = lt_retturn[]
EXCEPTIONS
no_update = 1
OTHERS = 2
.
IF sy-subrc <> 0.
MESSAGE ID sy-msgid TYPE sy-msgty NUMBER sy-msgno
WITH sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
ENDIF.
7 服务主数据类采购申请创建
7.1 外部活动创建
*&---------------------------------------------------------------------*
*& Report ZLGZBAPI_BUS2002_ACT_CREATE_M1
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZLGZBAPI_BUS2002_ACT_CREATE_M1.
"第一步：定义变量
data:
"定义网络号
I_NUMBER type BAPI_NETWORK_LIST-NETWORK,
"定义输入活动
it_BAPI_BUS2002_ACT_NEW type STANDARD TABLE OF BAPI_BUS2002_ACT_NEW,
wa_BAPI_BUS2002_ACT_NEW type BAPI_BUS2002_ACT_NEW,
"定义返回参数
it_BAPIRET2 type STANDARD TABLE OF BAPIRET2,
wa_BAPIRET2 type BAPIRET2.
"第二步：赋值
""网络号
I_NUMBER = '4500245'.
"作业赋值
wa_BAPI_BUS2002_ACT_NEW-activity = '0030'. "在网络和库网络中的作业编号
wa_BAPI_BUS2002_ACT_NEW-description = 'BAPI创建外部活动测试'. "工序短文本
wa_BAPI_BUS2002_ACT_NEW-control_key = 'LG02'. "控制码-内协(ZPS1)和成本（ZPS3）
wa_BAPI_BUS2002_ACT_NEW-wbs_element = 'LGZXS00212'. "工作分解结构元素 (WBS 元素)
wa_BAPI_BUS2002_ACT_NEW-work_cntr = ''. "工作中心
wa_BAPI_BUS2002_ACT_NEW-work_activity = ''. "工作（时间单位H）
wa_BAPI_BUS2002_ACT_NEW-calculation_key = 0. "用于计算的码
wa_BAPI_BUS2002_ACT_NEW-acttype = ''. "活动类型
wa_BAPI_BUS2002_ACT_NEW-cost_elem = ''. "成本要素编码
wa_BAPI_BUS2002_ACT_NEW-profit_ctr = ''. "利润中心
wa_BAPI_BUS2002_ACT_NEW-activity_costs = ''. "作业中的成本
wa_BAPI_BUS2002_ACT_NEW-PLANT = '8810'."工厂
wa_BAPI_BUS2002_ACT_NEW-PURCH_ORG = '6888'."采购组织
wa_BAPI_BUS2002_ACT_NEW-MATL_GROUP = '001'."物料组
wa_BAPI_BUS2002_ACT_NEW-PUR_GROUP = '881'."采购组
wa_BAPI_BUS2002_ACT_NEW-PRICE = '881'."价格
wa_BAPI_BUS2002_ACT_NEW-PRICE_UNIT = '881'."价格单位
wa_BAPI_BUS2002_ACT_NEW-OPERATION_QTY = '2'."数量
wa_BAPI_BUS2002_ACT_NEW-OPERATION_MEASURE_UNIT = 'H'."数量单位
wa_BAPI_BUS2002_ACT_NEW-COST_ELEM = '13100000'."成本要素
APPEND wa_BAPI_BUS2002_ACT_NEW to it_BAPI_BUS2002_ACT_NEW.
"第三步：调用函数
CALL FUNCTION 'BAPI_PS_INITIALIZATION'.
CALL FUNCTION 'BAPI_BUS2002_ACT_CREATE_MULTI'
EXPORTING
i_number = I_NUMBER
TABLES
it_activity = it_BAPI_BUS2002_ACT_NEW
et_return = it_BAPIRET2.
"第四步：判断是否有错误消息
LOOP AT it_BAPIRET2 INTO wa_bapiret2 WHERE type CA 'AE'.
MESSAGE ID wa_bapiret2-id TYPE wa_bapiret2-type NUMBER wa_bapiret2-number
INTO wa_bapiret2-message
WITH wa_bapiret2-message_v1 wa_bapiret2-message_v2
wa_bapiret2-message_v3 wa_bapiret2-message_v4.
WRITE:/ '创建时报错:',wa_bapiret2-message.
ENDLOOP.
"第四步：如果有错误消息则退出
IF sy-subrc EQ 0.
CALL FUNCTION 'PS_FLAG_INIT_GLOBAL_FLAGS'.
CALL FUNCTION 'PS_FLAG_SET_GLOBAL_FLAGS'
EXPORTING
i_precommit_ok = 'Y'.
ENDIF.
CHECK sy-subrc NE 0.
"第四步：没有错误消息则执行预提交
CALL FUNCTION 'BAPI_PS_PRECOMMIT'
TABLES
et_return = it_BAPIRET2.
LOOP AT it_BAPIRET2 INTO wa_bapiret2 WHERE type CA 'AE'.
MESSAGE ID wa_bapiret2-id TYPE wa_bapiret2-type NUMBER wa_bapiret2-number
INTO wa_bapiret2-message
WITH wa_bapiret2-message_v1 wa_bapiret2-message_v2
wa_bapiret2-message_v3 wa_bapiret2-message_v4.
WRITE:/ '预提交时报错:',wa_bapiret2-message.
ENDLOOP.
"第五步：预提交有错误消息则执行回滚
IF sy-subrc EQ 0.
CALL FUNCTION 'BAPI_TRANSACTION_ROLLBACK'
IMPORTING
return = it_BAPIRET2.
CALL FUNCTION 'PS_FLAG_INIT_GLOBAL_FLAGS'.
CALL FUNCTION 'PS_FLAG_SET_GLOBAL_FLAGS'
EXPORTING
i_precommit_ok = 'Y'.
ELSE.
"第五步：预提交无错误消息则执行正式提交
CALL FUNCTION 'BAPI_TRANSACTION_COMMIT'
EXPORTING
wait = 'X'
IMPORTING
return = wa_BAPIRET2.
WRITE:/ '活动（作业）创建成功:',wa_bapiret2-message.
* WBS元素创建成功
ENDIF.
7.2 服务活动创建，必须输入服务主数据
目前先暂用BDC实现，用BAPI真不好弄啊。BDC最大的坏处是只能重新建网络。
版权声明：本文为stuforever原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
