一、前言
在文章
《kubernetes POD多网卡方案multus-cni之一：概览》

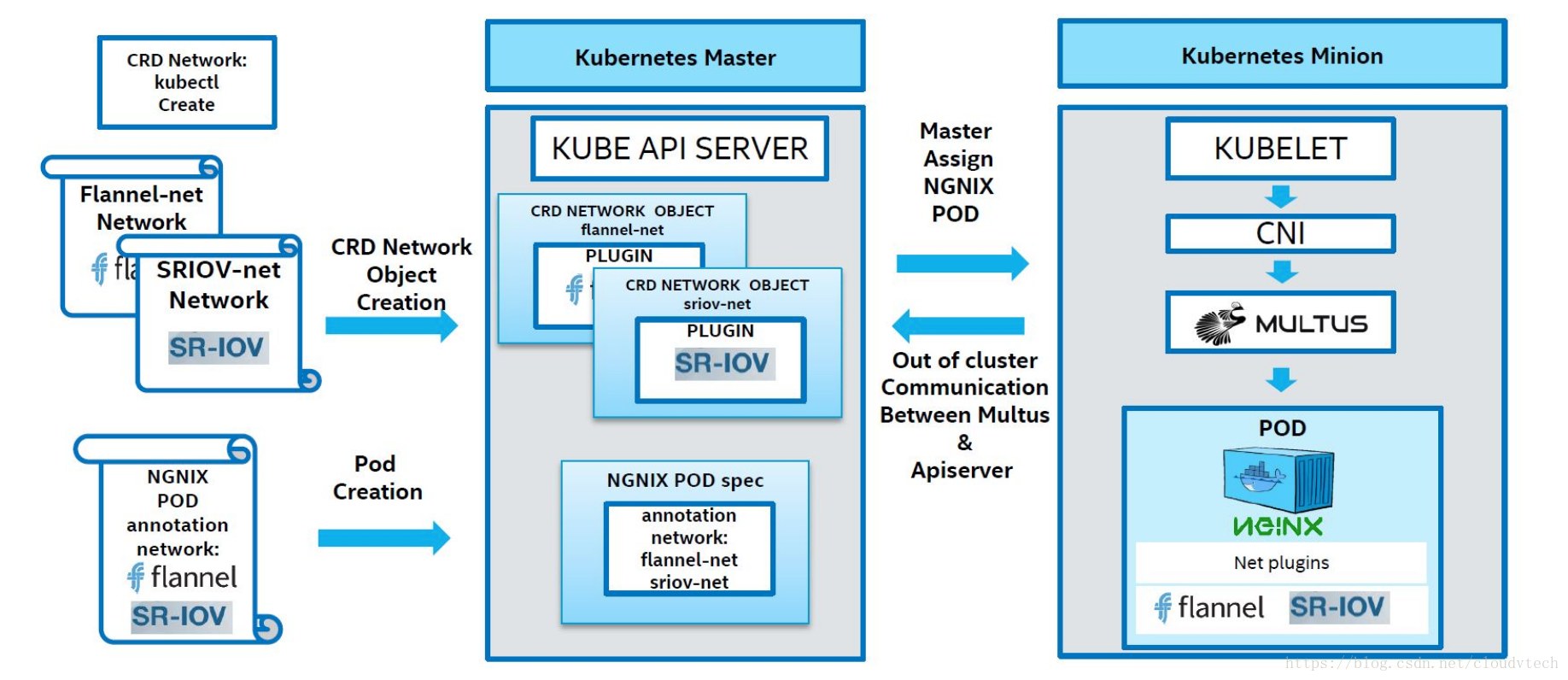

中，可以看到通过配置multus，可以为一个POD配置多个网络接口。根据multus主页上的描述，现在可以使用kubernetes的CDR来配置network object，允许POD对网络进行选取，在POD deployment定义中，可以指定需要使用哪个或者那些multus所管理的网络，来满足这种根据POD功能来自由组合网络的需求：
转载自https://blog.csdn.net/cloudvtech
二、测试环境设置
2.1 kubernetes(1个master，2个worker)
[root@k8s-master CRD]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8s-master Ready master 23d v1.10.0
k8s-node1 Ready <none> 23d v1.10.0
k8s-node2 Ready <none> 23d v1.10.0[root@k8s-master CRD]# kubectl version
Client Version: version.Info{Major:"1", Minor:"10", GitVersion:"v1.10.0", GitCommit:"fc32d2f3698e36b93322a3465f63a14e9f0eaead", GitTreeState:"clean", BuildDate:"2018-03-26T16:55:54Z", GoVersion:"go1.9.3", Compiler:"gc", Platform:"linux/amd64"}
Server Version: version.Info{Major:"1", Minor:"10", GitVersion:"v1.10.0", GitCommit:"fc32d2f3698e36b93322a3465f63a14e9f0eaead", GitTreeState:"clean", BuildDate:"2018-03-26T16:44:10Z", GoVersion:"go1.9.3", Compiler:"gc", Platform:"linux/amd64"}
2.2 运行flannel CNI
kube-flannel.yml
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
name: flannel
rules:
- apiGroups:
- ""
resources:
- pods
verbs:
- get
- apiGroups:
- ""
resources:
- nodes
verbs:
- list
- watch
- apiGroups:
- ""
resources:
- nodes/status
verbs:
- patch
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
name: flannel
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: flannel
subjects:
- kind: ServiceAccount
name: flannel
namespace: kube-system
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: flannel
namespace: kube-system
---
kind: ConfigMap
apiVersion: v1
metadata:
name: kube-flannel-cfg
namespace: kube-system
labels:
tier: node
app: flannel
data:
cni-conf.json: |
{
"name": "cbr0",
"plugins": [
{
"type": "flannel",
"delegate": {
"hairpinMode": true,
"isDefaultGateway": true
}
},
{
"type": "portmap",
"capabilities": {
"portMappings": true
}
}
]
}
net-conf.json: |
{
"Network": "10.244.0.0/16",
"Backend": {
"Type": "vxlan"
}
}
---
apiVersion: extensions/v1beta1
kind: DaemonSet
metadata:
name: kube-flannel-ds
namespace: kube-system
labels:
tier: node
app: flannel
spec:
template:
metadata:
labels:
tier: node
app: flannel
spec:
hostNetwork: true
nodeSelector:
beta.kubernetes.io/arch: amd64
tolerations:
- key: node-role.kubernetes.io/master
operator: Exists
effect: NoSchedule
serviceAccountName: flannel
initContainers:
- name: install-cni
image: quay.io/coreos/flannel:v0.10.0-amd64
command:
- cp
args:
- -f
- /etc/kube-flannel/cni-conf.json
- /etc/cni/net.d/10-flannel.conflist
volumeMounts:
- name: cni
mountPath: /etc/cni/net.d
- name: flannel-cfg
mountPath: /etc/kube-flannel/
containers:
- name: kube-flannel
image: quay.io/coreos/flannel:v0.10.0-amd64
command:
- /opt/bin/flanneld
args:
- --ip-masq
- --kube-subnet-mgr
resources:
requests:
cpu: "100m"
memory: "50Mi"
limits:
cpu: "100m"
memory: "50Mi"
securityContext:
privileged: true
env:
- name: POD_NAME
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
volumeMounts:
- name: run
mountPath: /run
- name: flannel-cfg
mountPath: /etc/kube-flannel/
volumes:
- name: run
hostPath:
path: /run
- name: cni
hostPath:
path: /etc/cni/net.d
- name: flannel-cfg
configMap:
name: kube-flannel-cfg
kubectl apply -f kube-flannel.yml[root@k8s-master CRD]# kubectl get pod -n kube-system | grep flannel
kube-flannel-ds-gmkg8 1/1 Running 1 1h
kube-flannel-ds-kjnbw 1/1 Running 3 1h
kube-flannel-ds-rb997 1/1 Running 3 1h
2.3 安装multus
参见文章
《kubernetes POD多网卡方案multus-cni之一：概览》
2.4 配置multus
首先清理原有的CNI配置
rm -f /etc/cni/net.d/* 在所有kubernetes node建立如下的/etc/cni/net.d/10-multus.conf
{
"name": "multus-cni-network",
"type": "multus",
"kubeconfig": "/etc/kubernetes/kubelet.conf"
}重启kubelet
systemctl restart kubelet
转载自https://blog.csdn.net/cloudvtech
三、配置multus CRD
3.1 建立权限
clusterrole.yml
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: multus-crd-overpowered
rules:
- apiGroups:
- '*'
resources:
- '*'
verbs:
- '*'
- nonResourceURLs:
- '*'
verbs:
- '*'kubectl apply -f clusterrole.ymlkubectl create clusterrolebinding multus-node-k8s-node1 --clusterrole=multus-crd-overpowered --user=system:node:k8s-node1
kubectl create clusterrolebinding multus-node-k8s-node2 --clusterrole=multus-crd-overpowered --user=system:node:k8s-node2
kubectl create clusterrolebinding multus-node-k8s-master --clusterrole=multus-crd-overpowered --user=system:node:k8s-master
3.2 建立CRD network
crdnetwork.yaml
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
# name must match the spec fields below, and be in the form: <plural>.<group>
name: networks.kubernetes.com
spec:
# group name to use for REST API: /apis/<group>/<version>
group: kubernetes.com
# version name to use for REST API: /apis/<group>/<version>
version: v1
# either Namespaced or Cluster
scope: Namespaced
names:
# plural name to be used in the URL: /apis/<group>/<version>/<plural>
plural: networks
# singular name to be used as an alias on the CLI and for display
singular: network
# kind is normally the CamelCased singular type. Your resource manifests use this.
kind: Network
# shortNames allow shorter string to match your resource on the CLI
shortNames:
- netkubectl apply -f crdnetwork.yml
3.3 建立network resource object
CNI flannel network object：flannel-network.yaml
apiVersion: "kubernetes.com/v1"
kind: Network
metadata:
name: flannel-networkobj
plugin: flannel
args: '[
{
"delegate": {
"isDefaultGateway": true
}
}
]' CNI macvlan network object：macvlan-network.yaml
apiVersion: "kubernetes.com/v1"
kind: Network
metadata:
name: macvlan-networkobj
plugin: macvlan
args: '[
{
"master": "ens33",
"mode": "vepa",
"ipam": {
"type": "host-local",
"subnet": "192.168.166.0/24",
"rangeStart": "192.168.166.21",
"rangeEnd": "192.168.166.29",
"routes": [
{ "dst": "0.0.0.0/0" }
],
"gateway": "192.168.166.2"
}
}
]'部署这两个网络对象：
kubectl apply -f flannel-network.yaml
kubectl apply -f macvlan-network.yaml查看部署结果：
[root@k8s-master CRD]# kubectl get CustomResourceDefinition
NAME AGE
networks.kubernetes.com 2h[root@k8s-master CRD]# kubectl get networks
NAME AGE
flannel-networkobj 1h
macvlan-networkobj 58m
[root@k8s-master CRD]# kubectl describe networks
Name: flannel-networkobj
Namespace: default
Labels: <none>
Annotations: kubectl.kubernetes.io/last-applied-configuration={"apiVersion":"kubernetes.com/v1","args":"[ { \"delegate\": { \"isDefaultGateway\": true } } ]","kind":"Network","metadata":{"annotations":{},"name":"f...
API Version: kubernetes.com/v1
Args: [ { "delegate": { "isDefaultGateway": true } } ]
Kind: Network
Metadata:
Cluster Name:
Creation Timestamp: 2018-05-08T01:32:50Z
Generation: 1
Resource Version: 314203
Self Link: /apis/kubernetes.com/v1/namespaces/default/networks/flannel-networkobj
UID: b85192fa-525f-11e8-a891-000c29d3e746
Plugin: flannel
Events: <none>
Name: macvlan-networkobj
Namespace: default
Labels: <none>
Annotations: kubectl.kubernetes.io/last-applied-configuration={"apiVersion":"kubernetes.com/v1","args":"[ { \"master\": \"ens33\", \"mode\": \"vepa\", \"ipam\": { \"type\": \"host-local\", \"subnet\": \"192.168.16...
API Version: kubernetes.com/v1
Args: [ { "master": "ens33", "mode": "vepa", "ipam": { "type": "host-local", "subnet": "192.168.166.0/24", "rangeStart": "192.168.166.21", "rangeEnd": "192.168.166.29", "routes": [ { "dst": "0.0.0.0/0" } ], "gateway": "192.168.166.2" } } ]
Kind: Network
Metadata:
Cluster Name:
Creation Timestamp: 2018-05-08T02:18:54Z
Generation: 1
Resource Version: 318342
Self Link: /apis/kubernetes.com/v1/namespaces/default/networks/macvlan-networkobj
UID: 27f24729-5266-11e8-9ff5-000c29d3e746
Plugin: macvlan
Events: <none>
转载自https://blog.csdn.net/cloudvtech
四、选择不同的网络部署POD
4.1 使用flannel的POD
nginx_pod_flannel.yaml
apiVersion: v1
kind: Pod
metadata:
name: nginx-flannel
annotations:
networks: '[
{ "name": "flannel-networkobj" }
]'
spec:
containers:
- name: nginx
image: nginx:1.7.9
ports:
- containerPort: 80查看POD内部：
[root@k8s-node1 net.d]# docker exec -it db bash
root@nginx-flannel:/# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
3: eth0@if12: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1450 qdisc noqueue state UP
link/ether 0a:58:0a:f4:01:03 brd ff:ff:ff:ff:ff:ff
inet 10.244.1.3/24 scope global eth0
valid_lft forever preferred_lft forever
inet6 fe80::744c:23ff:fe2c:11ce/64 scope link
valid_lft forever preferred_lft forever从另外一个node访问：
[root@k8s-node2 ~]# curl 10.244.1.3
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
......
</head>
<body>
......
</body>
</html>
4.2 使用macvlan的POD
macvlan-network.yaml
apiVersion: "kubernetes.com/v1"
kind: Network
metadata:
name: macvlan-networkobj
plugin: macvlan
args: '[
{
"master": "ens33",
"mode": "vepa",
"ipam": {
"type": "host-local",
"subnet": "192.168.166.0/24",
"rangeStart": "192.168.166.21",
"rangeEnd": "192.168.166.29",
"routes": [
{ "dst": "0.0.0.0/0" }
],
"gateway": "192.168.166.2"
}
}
]'查看POD内部：
[root@k8s-node2 ~]# docker exec -it bf bash
root@nginx-macvlan:/# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UNKNOWN
link/ether 06:a1:c9:b2:ff:c4 brd ff:ff:ff:ff:ff:ff
inet 192.168.166.23/24 scope global eth0
valid_lft forever preferred_lft forever
inet6 fe80::4a1:c9ff:feb2:ffc4/64 scope link
valid_lft forever preferred_lft forever
从另外一个node访问：
[root@k8s-node2 ~]# curl 192.168.166.23
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
......
</head>
<body>
......
</body>
</html>
4.3 同时使用flannel和macvlan的POD
nginx_pod_both.yaml
apiVersion: v1
kind: Pod
metadata:
name: nginx-both
annotations:
networks: '[
{ "name": "flannel-networkobj" },
{ "name": "macvlan-networkobj" }
]'
spec:
containers:
- name: nginx
image: nginx:1.7.9
ports:
- containerPort: 80
查看POD内部：
[root@k8s-node1 net.d]# docker exec -it 82 bash
root@nginx-both:/# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
3: eth0@if13: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1450 qdisc noqueue state UP
link/ether 0a:58:0a:f4:01:04 brd ff:ff:ff:ff:ff:ff
inet 10.244.1.4/24 scope global eth0
valid_lft forever preferred_lft forever
inet6 fe80::287c:8dff:fefd:4f88/64 scope link
valid_lft forever preferred_lft forever
4: net0@if2: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue state UNKNOWN
link/ether de:59:61:70:cf:a9 brd ff:ff:ff:ff:ff:ff
inet 192.168.166.21/24 scope global net0
valid_lft forever preferred_lft forever
inet6 fe80::dc59:61ff:fe70:cfa9/64 scope link
valid_lft forever preferred_lft forever
从另外一个node访问：
[root@k8s-node2 ~]# curl 10.244.1.4
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
......
</head>
<body>
......
</body>
</html>
[root@k8s-node2 ~]# curl 192.168.166.21
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
......
</head>
<body>
......
</body>
</html>
转载自https://blog.csdn.net/cloudvtech
