Hive实战之谷粒影音

1. 项目数据结构

1.1 视频表

1.2 用户表

2. 数据清洗

1. 通过观察

原始数据形式

   ，可以发现，视频可以有多个所属分类，每个所属分类用&符号分割，且分割的两边有空格字符，同时相关视频也是可以有多个元素，多个相关视频又用“\t” 进行分割。
2. 为了分析数据时方便对存在多个子元素的数据进行操作，我们首先进行数据重组清洗操作。
   • 即：

将所有的类别用“&”分割，同时去掉两边空格，多个相关视频 id 也使用“&”进行分割。



pom.xml


<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.atguigu</groupId>
    <artifactId>guli-video</artifactId>
    <version>1.0-SNAPSHOT</version>
    <dependencies>
        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-client</artifactId>
            <version>2.7.2</version>
        </dependency>

        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-common</artifactId>
            <version>2.7.2</version>
        </dependency>

        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-hdfs</artifactId>
            <version>2.7.2</version>
        </dependency>
    </dependencies>

</project>

2.1 ETLMapper

/**
 * @Date 2020/8/7 13:37
 * @Version 10.21
 * @Author DuanChaojie
 */
public class ETLMapper extends Mapper<LongWritable, Text, NullWritable,Text> {

    Text v = new Text();

    @Override
    protected void map(LongWritable key, Text value, Context context) throws IOException, InterruptedException {
        // 1.获取数据
        String oriStr = value.toString();

        // 2.过滤数据
        String etlStr = ETLUtil.etlStr(oriStr);

        // 3.写出
        if(etlStr == null){
            return;
        }

        v.set(etlStr);
        context.write(NullWritable.get(),v);
    }
}

2.2 ETLUtil

public class ETLUtil {
    public static String etlStr(String oriStr){
        StringBuffer sb = new StringBuffer();
        // 1.过滤长度不够的，小于9个字段的
        //SDNkMu8ZT68	w00dy911	630	People & Blogs	186	10181	3.49	494	257	rjnbgpPJUksr	jnbgpPJUks
        int len = 9;
        String[] fields = oriStr.split("\t");
        if(fields.length < len){
            return null;
        }
        // 2.去掉类别字段中的空格
        fields[3] = fields[3].replaceAll(" ","");

        // 3.修改相关视频ID字段的分隔符
        for (int i = 0; i < fields.length; i++) {
            if (i < len){
                sb.append(fields[i]).append("\t");
            }else{
                if (i == fields.length-1){
                    sb.append(fields[i]);
                }else{
                    sb.append(fields[i]).append("&");
                }
            }
        }

        return sb.toString();
    }
}

2.3 ETLDriver

public class ETLDriver implements Tool {

    Configuration conf = new Configuration();

    public int run(String[] args) throws Exception {
        // 1.获取Job对象
        Job job = Job.getInstance(conf);
        // 2.获取jar包路径
        job.setJarByClass(ETLDriver.class);

        // 3.设置Mapper类和输出KV类型
        job.setMapperClass(ETLMapper.class);

        // 4.设置最终输出的KV类型
        job.setOutputKeyClass(NullWritable.class);
        job.setOutputValueClass(Text.class);

        // 5.设置输入输出路径
        FileInputFormat.setInputPaths(job,new Path(args[0]));
        FileOutputFormat.setOutputPath(job,new Path(args[1]));

        // 6.提交任务
        boolean result = job.waitForCompletion(true);

        return result ? 0:1;
    }

    public void setConf(Configuration conf) {
        this.conf = conf;
    }

    public Configuration getConf() {
        return conf;
    }

    public static void main(String[] args) {
        Configuration conf = new Configuration();
        try {
            int run = ToolRunner.run(conf, new ETLDriver(), args);
            System.out.println("run = " + run);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

打成Jar包

guli-video-1.0-SNAPSHOT.jar


hadoop fs -mkdir /gulivideo

hadoop fs -put user/ /gulivideo
hadoop fs -put video/ /gulivideo

# 进行数据清洗
yarn jar /opt/module/data/gulivideo/jars/guli-video-1.0-SNAPSHOT.jar com.atguigu.mr.ETLDriver /gulivideo/video/2008/0222 /gulivideo/output

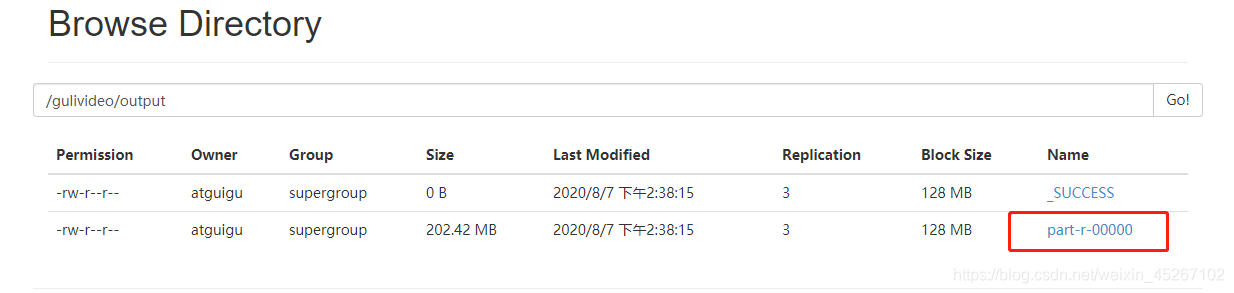

清洗后的数据


3. 项目准备工作

3.1 创建表

创建表：

gulivideo_ori，gulivideo_user_ori,

存储为

textfile

格式

create table gulivideo_ori(
videoId string,
uploader string,
age int,
category array<string>,
length int,
views int,
rate float,
ratings int,
comments int,
relatedId array<string>)
row format delimited
fields terminated by "\t"
collection items terminated by "&"
stored as textfile;

create table gulivideo_user_ori(
uploader string,
videos int,
friends int)
row format delimited
fields terminated by "\t"
stored as textfile;

创建表：

gulivideo_orc，gulivideo_user_orc

，存储为

orc

格式

create table gulivideo_orc(
videoId string,
uploader string,
age int,
category array<string>,
length int,
views int,
rate float,
ratings int,
comments int,
relatedId array<string>)
row format delimited fields terminated by "\t"
collection items terminated by "&"
stored as orc;

create table gulivideo_user_orc(
uploader string,
videos int,
friends int)
row format delimited fields terminated by "\t"
stored as orc;

3.2 导入ETL后数据

-- 向gulivideo_ori表导入数据
load data inpath "/gulivideo/output/part-r-00000" into table gulivideo_ori;

-- 向gulivideo_user_ori表导入数据
load  data  inpath  "/gulivideo/user/2008/0903"  into  table gulivideo_user_ori;


向 ORC 表插入数据


insert into table gulivideo_orc select * from gulivideo_ori;

insert into table gulivideo_user_orc select * from gulivideo_user_ori;

4. 业务分析

统计硅谷影音视频网站的常规指标，各种 TopN 指标：

–统计视频观看数 Top10

–统计视频类别热度 Top10

–统计视频观看数 Top20 所属类别以及类别包含的 Top20 的视频个数

–统计视频观看数 Top50 所关联视频的所属类别 Rank

–统计上传视频最多的用户 Top10 以及他们上传的观看次数在前 20 视频

–统计每个类别中的视频热度 Top10

–统计每个类别中视频流量 Top10

–统计每个类别视频观看数 Top10

4.1 统计视频观看数 Top10

select
    videoId,
    views,
    uploader
from
    gulivideo_orc
order by
    views desc
limit
    10;

-- 结果：
videoid 		views   		uploader
dMH0bHeiRNg     42513417        judsonlaipply
0XxI-hvPRRA     20282464        smosh
1dmVU08zVpA     16087899        NBC
RB-wUgnyGv0     15712924        ChrisInScotland
QjA5faZF1A8     15256922        guitar90
-_CSo1gOd48     13199833        tasha
49IDp76kjPw     11970018        TexMachina
tYnn51C3X_w     11823701        CowSayingMoo
pv5zWaTEVkI     11672017        OkGo
D2kJZOfq7zk     11184051        mrWoot

4.2 统计视频类别热度 Top10

-- 这里使用limit是为了方便查看结果
-- 使用UDTF函数将类别列炸开
select
    videoId,
    category_name
from
    gulivideo_orc
lateral view explode(category) tmp_tab as category_name
limit 10;t1

-- 结果：
videoid category_name
o4x-VW_rCSE     Entertainment
P1OXAQHv09E     Comedy
N0TR0Irx4Y0     Comedy
seGhTWE98DU     Music
bNF_P281Uu4     Travel
bNF_P281Uu4     Places
CQO3K8BcyGM     Comedy
3gg5LOd_Zus     Entertainment
sdUUx5FdySs     Film
sdUUx5FdySs     Animation

-- 按照category_name进行分组，统计每种类别视频的总数，同时按照该总数进行倒序排名，取前10
select
    category_name,
    count(category_name) category_count
from (
select
    videoId,
    category_name
from
    gulivideo_orc
lateral view explode(category) tmp_tab as category_name
)t1
group by
    category_name
order by
    category_count desc
limit 10;

-- 结果：
category_name   category_count
Music   179049
Entertainment   127674
Comedy  87818
Animation       73293
Film    73293
Sports  67329
Gadgets 59817
Games   59817
Blogs   48890
People  48890

4.3 统计视频观看数 Top20 所属类别以及类别包含的 Top20 的视频个数

-- 统计视频观看数Top20
select
    videoId,
    views,
    category
from
    gulivideo_orc
order by
    views desc
limit 20;t1

-- 结果：
videoid views   category
dMH0bHeiRNg     42513417        ["Comedy"]
0XxI-hvPRRA     20282464        ["Comedy"]
1dmVU08zVpA     16087899        ["Entertainment"]
RB-wUgnyGv0     15712924        ["Entertainment"]
QjA5faZF1A8     15256922        ["Music"]
-_CSo1gOd48     13199833        ["People","Blogs"]
-- ...

-- 对t1表中的category进行炸裂

select
    videoId,
    category_name
from
    (select
    videoId,
    views,
    category
from
    gulivideo_orc
order by
    views desc
limit 20)t1
lateral view explode(category) tmp_tab as category_name;t2

-- 结果：
videoid category_name
dMH0bHeiRNg     Comedy
0XxI-hvPRRA     Comedy
1dmVU08zVpA     Entertainment
-- ...

-- 对t2表进行分组(category_name)求和(总数)
select
    category_name,
    count(*) category_count
from
    (select
    videoId,
    category_name
from
    (select
    videoId,
    views,
    category
from
    gulivideo_orc
order by
    views desc
limit 20)t1
lateral view explode(category) tmp_tab as category_name)t2
group by
    category_name
order by
    category_count desc;

-- 结果：
category_name   category_count
Entertainment   6
Comedy  6
Music   5
People  2
Blogs   2
UNA     1

4.4 统计视频观看数 Top50 所关联视频的所属类别 Rank

select
    category
from
    (select
    related_id
from
    (select
    relatedId,
    views
from
    gulivideo_orc
order by
    views desc
limit 50)t1
lateral view explode(relatedId) tmp_tab as related_id

group by
    related_id)t2
join
    gulivideo_orc orc
on
    t2.related_id = orc.videoId;t3
-- 结果：
["Music"]
["Comedy"]
["Entertainment"]
["People","Blogs"]
["Comedy"]
["Comedy"]
["Comedy"]
["Entertainment"]
["Comedy"]

-- 对t3表中的category进行炸裂
select
    explode(category) category_name
from
    (select
    category
from
    (select
    related_id
from
    (select
    relatedId,
    views
from
    gulivideo_orc
order by
    views desc
limit 50)t1
lateral view explode(relatedId) tmp_tab as related_id

group by
    related_id)t2
join
    gulivideo_orc orc
on
    t2.related_id = orc.videoId)t3;t4
-- 结果：
Music
Music
UNA
Entertainment
Music
Music


-- 分组(类别)求和(总数)
select
    category_name,
    count(category_name) category_count
from
    (select
    explode(category) category_name
from
    (select
    category
from
    (select
    related_id
from
    (select
    relatedId,
    views
from
    gulivideo_orc
order by
    views desc
limit 50)t1
lateral view explode(relatedId) tmp_tab as related_id

group by
    related_id)t2
join
    gulivideo_orc orc
on
    t2.related_id = orc.videoId)t3)t4
group by
    category_name
order by
    category_count desc;

-- 结果：
category_name   category_count
Comedy  232
Entertainment   216
Music   195
Blogs   51
People  51
Film    47
Animation       47
News    22
Politics        22
Games   20
Gadgets 20
Sports  19
Howto   14
DIY     14
UNA     13
Places  12
Travel  12
Animals 11
Pets    11
Autos   4
Vehicles        4

4.5 统计上传视频最多的用户Top10以及他们上传的观看次数在前20视频

-- 统计上传视频最多的用户Top10
select
    uploader,
    videos
from
    gulivideo_user_orc
order by
    videos desc
limit 10;t1
-- 取出这10个人上传的所有视频,按照观看次数进行排名,取前20
select
    gulivideo_orc.videoId,
    gulivideo_orc.views
from
    (select
    uploader,
    videos
from
    gulivideo_user_orc
order by
    videos desc
limit 10)t1
join
    gulivideo_orc
on
    t1.uploader=gulivideo_orc.uploader
order by
    views desc
limit 20;

--结果：
video.videoid   video.views
-IxHBW0YpZw     39059
BU-fT5XI_8I     29975
ADOcaBYbMl0     26270
yAqsULIDJFE     25511
vcm-t0TJXNg     25366
0KYGFawp14c     24659
j4DpuPvMLF4     22593
Msu4lZb2oeQ     18822
ZHZVj44rpjE     16304
foATQY3wovI     13576
-UnQ8rcBOQs     13450
crtNd46CDks     11639
D1leA0JKHhE     11553
NJu2oG1Wm98     11452
CapbXdyv4j4     10915
epr5erraEp4     10817
IyQoDgaLM7U     10597
tbZibBnusLQ     10402
_GnCHodc7mk     9422
hvEYlSlRitU     7123

4.6 统计每个类别(以Music为例)…

1. 要想统计 Music 类别中的视频热度Top10，需要先找到 Music类别，那么就需要将 category

   展开，所以可以创建一张表用于存放 categoryId 展开的数据。

2. 向 category 展开的表中插入数据。

   create table gulivideo_category(
   videoId string,
   uploader string,
   age int,
   categoryId string,
   length int,
   views int,
   rate float,
   ratings int,
   comments int,
   relatedId array<string>)
   row format delimited
   fields terminated by "\t"
   collection items terminated by "&"
   stored as orc;

   insert into table gulivideo_category
   select
   videoId,
   uploader,
   age,
   categoryId,
   length,
   views,
   rate,
   ratings,
   comments,
   relatedId
   from
   gulivideo_orc lateral view explode(category) catetory as
   categoryId;

   select count(*) from gulivideo_category;
   -- 结果：1019206
   select count(*) from gulivideo_orc;
   -- 结果：743569


3. 统计对应类别（Music）中的视频热度

   -- 给每一种类别根据视频观看数添加rank值(倒序)
   select
       categoryId,
       videoId,
       views,
       rank() over(partition by categoryId order by views desc) rk
   from
       gulivideo_category;

   -- 过滤前十
   select
       categoryId,
       videoId,
       views
   from
       (select
       categoryId,
       videoId,
       views,
       rank() over(partition by categoryId order by views desc) rk
   from
       gulivideo_category)t1
   where
       rk<=10;

   -- 结果：
   categoryid      videoid views
   Animals 2GWPOPSXGYI     3660009
   Animals xmsV9R8FsDA     3164582
   Animals 12PsUW-8ge4     3133523
   Animals OeNggIGSKH8     2457750
   Animals WofFb_eOxxA     2075728
   Animals AgEmZ39EtFk     1999469
   Animals a-gW3RbJd8U     1836870
   Animals 8CL2hetqpfg     1646808
   Animals QmroaYVD_so     1645984
   Animals Sg9x5mUjbH8     1527238
   -- ...
   Vehicles        RjrEQaG5jPM     2803140
   Vehicles        cv157ZIInUk     2773979
   Vehicles        Gyg9U1YaVk8     1832224
   Vehicles        6GNB7xT3rNE     1412497
   Vehicles        tth9krDtxII     1347317
   Vehicles        46LQd9dXFRU     1262173
   Vehicles        pdiuDXwgrjQ     1013697
   Vehicles        kY_cDpENQLE     956665
   Vehicles        YtxfbxGz1u4     942604
   Vehicles        aCamHfJwSGU     847442


☆
