Opencv与dlib进行人脸嘴巴说话检测

  • Post author:
  • Post category:其他


Python使用opencv,dlib、imutils实现简单的嘴巴特征标注,检测嘴巴的张合。

废话少说,相关代码如下

import cv2
import dlib
import imutils
import os
import time
import numpy as np
import math
from imutils import face_utils


#计算两个坐标的距离
def euclidian_distance(p1, p2):
    diff_x = abs(p2[0]-p1[0])
    diff_y = abs(p2[1]-p1[1])
    return math.sqrt(diff_x*diff_x + diff_y*diff_y)


# 使用 Dlib 的正面人脸检测器 frontal_face_detector
detector = dlib.get_frontal_face_detector()

#脸部关键点预测器
predictor = dlib.shape_predictor("shape_predictor_68_face_landmarks.dat")


path=r"C:/Users/一只会飞的猫/Desktop/test/test.mp4"
#cap = cv2.VideoCapture(path)#这是选择读取视频
cap = cv2.VideoCapture(0)#这是选择打开自己的摄像头

fps = cap.get(cv2.CAP_PROP_FPS) #获取摄像头或者视频帧率
print(fps)
#count = int(cap.get(7))  # 总帧数
#print("总帧数",count)


width = int(cap.get(cv2.CAP_PROP_FRAME_WIDTH))
height = int(cap.get(cv2.CAP_PROP_FRAME_HEIGHT))
# print(width,height)
fourcc = cv2.VideoWriter_fourcc('m', 'p', '4', 'v')  # codec
# cv2.VideoWriter( filename, fourcc, fps, frameSize )
out = cv2.VideoWriter('C:/Users/一只会飞的猫/Desktop/test/output.mp4', fourcc, fps, (width, height))


#(mouth_lower, mouth_upper) = face_utils.FACIAL_LANDMARKS_68_IDXS['mouth']
(mouth_lower, mouth_upper) = (48,60)

ACTIVATION_RATIO = 3.0


color = (0, 0, 255)
actived=False
result=[]
sum=0
j=0
fras=0

while(True):

    #if (fras >= count):
    #     break

    ret, frame = cap.read()
    # 使用 detector 检测器来检测图像中的人脸
    faces = detector(frame, 1)


    if(len(faces)>0):
        #判断每6帧的张开嘴巴的次数大于2次,判断为在说话,可以自己修改
        if fras > 6 and len(result)>6:
            for i in range(j, j + 6):
                sum = sum + result[i]
            # print(sum)
            if sum > 2:
                # print("talking")
                actived = True
            else:
                actived = False
            sum = 0
            j = j + 1
        for (i, face) in enumerate(faces):
            # color = (0, 0, 255)
            # print("人脸位置:",face,"当前帧:",current_frame,"颜色为:",color)
            # print("人脸数 / faces in all:", len(faces))
            # print(face) [(161, 76) (546, 461)]
            # fx, fy, fw, fh=face
            fx=face.left()
            fy=face.top()

            # 确定面部区域的面部地标,然后将面部标志(x,y)坐标转换成NumPy阵列
            # 使用predictor来计算面部轮廓
            shape = predictor(frame, face)
            shape = face_utils.shape_to_np(shape)


            left = (shape[48, 0], shape[48, 1])
            right = (shape[54, 0], shape[54, 1])

            top = (shape[51, 0], shape[51, 1])
            bottom = (shape[57, 0], shape[57, 1])

            diff_h = euclidian_distance(top, bottom)
            diff_w = euclidian_distance(left, right)

            ratio = round(diff_w / diff_h, 5)


            cv2.line(frame, left, right, color)
            cv2.line(frame, top, bottom, color)

            cv2.putText(frame, "ratio: %s" % ratio, (0, height - 5), cv2.FONT_HERSHEY_SIMPLEX, 0.5, color)
            # 绘制嘴巴的点
            for (x, y) in shape[mouth_lower:mouth_upper]:
                cv2.circle(frame, (x, y), 1, color, -3)


            if actived:
                cv2.putText(frame, "talking", (fx+20, fy-30), cv2.FONT_HERSHEY_DUPLEX, 1.0, (0, 255, 0), 1)

            if ratio >= ACTIVATION_RATIO :  # mouth shut & not talking
                # print("闭着嘴巴")
                result.append(0)
                # color = (0, 0, 255)  # red
                cv2.putText(frame, "shut ", (fx+20, fy+20), cv2.FONT_HERSHEY_SIMPLEX, 1, (0, 0, 255), 2)
            else:
                # print("张开嘴巴")
                result.append(1)
                # color = (0, 255, 0)  # green
                # cv2.putText(frame, "open", (fx+20, fy+20), cv2.FONT_HERSHEY_SIMPLEX, 1, (0, 255, 0), 2)

    else:
        cv2.putText(frame, "no face", (10, 10), cv2.FONT_HERSHEY_SIMPLEX, 0.45, (0, 0, 255), 2)

    fras=fras+1
    print("当前帧",fras)
    # 显示图像
    cv2.imshow('frame',frame)
    #写入视频
    out.write(frame)

    if cv2.waitKey(1) & 0xFF == ord('q'):
        break

# When everything done, release the capture
cap.release()
cv2.destroyAllWindows()

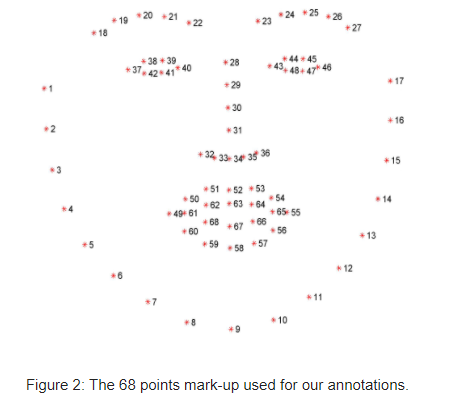

shape_predictor_68_face_landmarks.dat是一个用于人脸68个关键点检测的dat模型库,使用这个模型库可以很方便地进行人脸检测。

相关资料:

https://ibug.doc.ic.ac.uk/resources/facial-point-annotations/

计算嘴巴的开合,这里是计算52和58点的嘴巴高度,49号和55号的嘴巴宽度,比率是w/h,设置闭上嘴巴的阈值,张开嘴巴比率越小,闭上嘴巴比率越大。这里是活体检测嘴巴开合。

检测说话是在一定帧数过程中,张开嘴巴的次数大于多少,可以设置为在说话,进行移动平均计算张开嘴巴次数。
