package com.lagou.edu;

import org.springframework.beans.BeansException;
import org.springframework.beans.factory.InitializingBean;
import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationContextAware;


public class LagouBean implements InitializingBean, ApplicationContextAware {

	/*private ItBean itBean;

	public void setItBean(ItBean itBean) {
		this.itBean = itBean;
	}*/
	private int num;

	public void setNum(int num) {
		this.num = num;
	}

	/**
	 * 构造函数
	 */
	public LagouBean(){
		System.out.println("LagouBean 构造器...");
	}


	/**
	 * InitializingBean 接口实现
	 */
	public void afterPropertiesSet() throws Exception {
		System.out.println("LagouBean InitializingBean#afterPropertiesSet...");
	}

	public void print() {
		System.out.println("print方法业务逻辑执行");
	}

	@Override
	public void setApplicationContext(ApplicationContext applicationContext) throws BeansException {
		System.out.println("setApplicationContext....");
	}

	/**
	 * BeanFactoryPostProcessor的实现类构造函数...
	 * BeanFactoryPostProcessor的实现方法调用中......
	 * BeanPostProcessor 实现类构造函数...
	 * LagouBean 构造器...
	 * setApplicationContext....
	 * BeanPostProcessor 实现类 postProcessBeforeInitialization 方法被调用中......
	 * LagouBean afterPropertiesSet...
	 * BeanPostProcessor 实现类 postProcessAfterInitialization 方法被调用中......
	 * com.lagou.edu.LagouBean@6ad3381f
	 */
}

package com.lagou.edu;

import org.springframework.beans.BeansException;
import org.springframework.beans.factory.config.BeanPostProcessor;
import org.springframework.stereotype.Component;


public class MyBeanPostProcessor implements BeanPostProcessor {

	public MyBeanPostProcessor() {
		System.out.println("BeanPostProcessor 实现类构造函数...");
	}

	@Override
	public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
		if("lagouBean".equals(beanName)) {
			System.out.println("BeanPostProcessor 实现类 postProcessBeforeInitialization 方法被调用中......");
		}
		return bean;
	}

	@Override
	public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
		if("lagouBean".equals(beanName)) {
			System.out.println("BeanPostProcessor 实现类 postProcessAfterInitialization 方法被调用中......");
		}
		return bean;
	}
}

BeanFactoryPostProcessor接口实现类

package com.lagou.edu;

import org.springframework.beans.BeansException;
import org.springframework.beans.factory.config.BeanFactoryPostProcessor;
import org.springframework.beans.factory.config.ConfigurableListableBeanFactory;
import org.springframework.stereotype.Component;


public class MyBeanFactoryPostProcessor implements BeanFactoryPostProcessor {

	public MyBeanFactoryPostProcessor() {
		System.out.println("BeanFactoryPostProcessor的实现类构造函数...");
	}

	@Override
	public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {
		System.out.println("BeanFactoryPostProcessor的实现方法调用中......");
	}
}

import com.lagou.edu.LagouBean;
import org.junit.Test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

public class IocTest {

	/**
	 *  Ioc 容器源码分析基础案例
	 */
	@Test
	public void testIoC() {

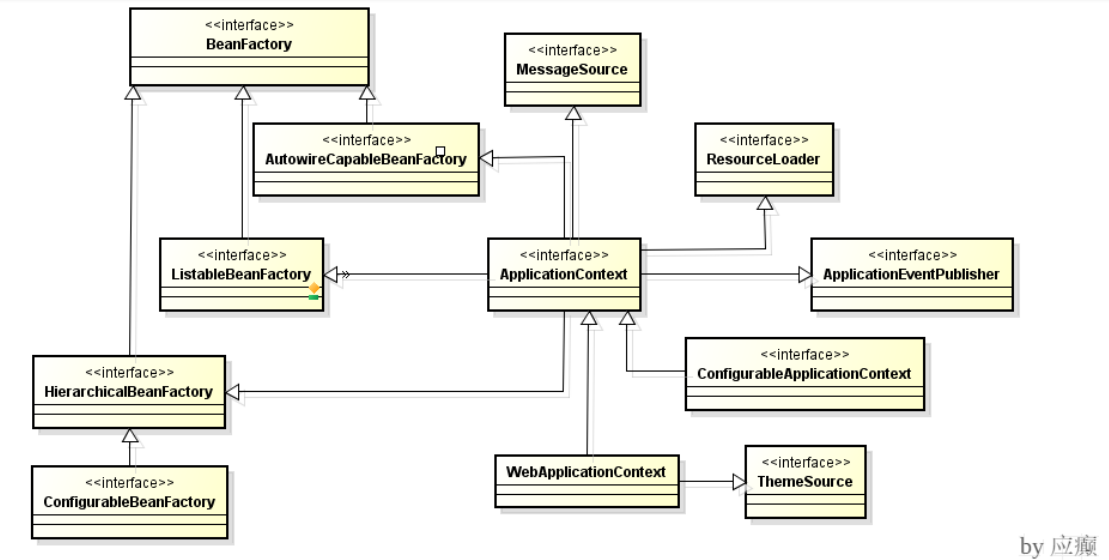

		// ApplicationContext是容器的高级接口，BeanFacotry（顶级容器/根容器，规范了/定义了容器的基础行为）
		// Spring应用上下文，官方称之为 IoC容器（错误的认识：容器就是map而已；准确来说，map是ioc容器的一个成员，
		// 叫做单例池, singletonObjects,容器是一组组件和过程的集合，包括BeanFactory、单例池、BeanPostProcessor等以及之间的协作流程）

		/**

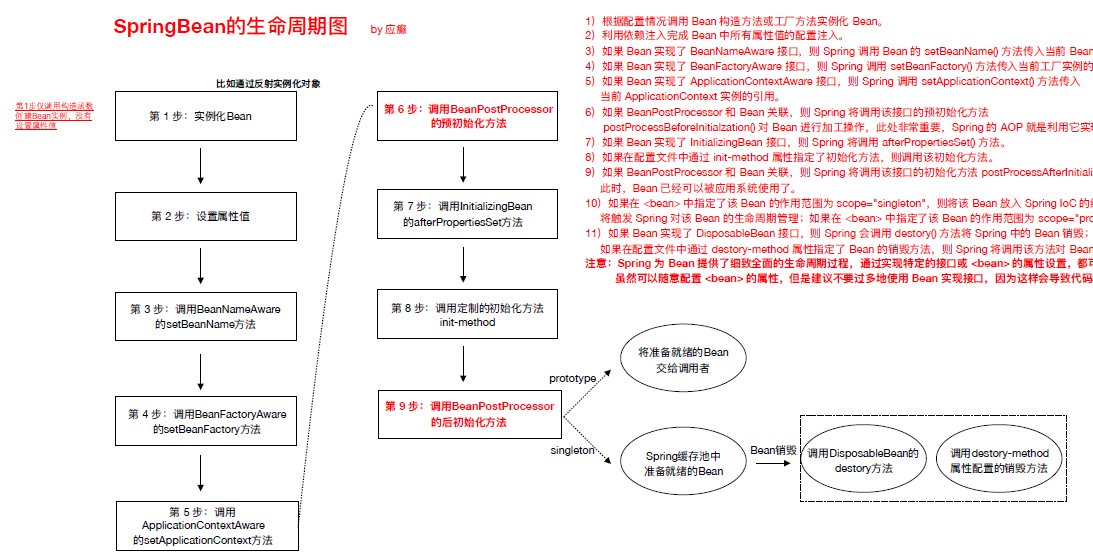

		 * Ioc容器创建管理Bean对象的，Spring Bean是有生命周期的，在特殊方法打断点可知

		 *  bean构造函数执行、初始化方法执行 、Bean后置处理器的before/after方法：AbstractApplicationContext#refresh()#finishBeanFactoryInitialization()
		 *
		 *  Bean工厂后置处理器构造函数执行、Bean工厂后置处理器方法执行：AbstractApplicationContext#refresh()#invokeBeanFactoryPostProcessors()
		 *
		 *  Bean后置处理器构造函数执行：AbstractApplicationContext#refresh()#registerBeanPostProcessors()
		 */


		ApplicationContext applicationContext = new ClassPathXmlApplicationContext("classpath:applicationContext.xml");
		LagouBean lagouBean = applicationContext.getBean(LagouBean.class);
		System.out.println(lagouBean);
	}


}

1.3、Spring IoC


容器初始化主流程

public void refresh() throws BeansException, IllegalStateException {
		synchronized (this.startupShutdownMonitor) {
			// Prepare this context for refreshing.
			/**
			 * 第⼀步：刷新前的预处理
			 * 表示在真正刷新之前需要准备做的事情：
			 * 设置sping容器的启动时间
			 * 开启活跃状态，撤销关闭状态
			 * 验证环境信息里一些必要的属性
			 */

			prepareRefresh();

			// Tell the subclass to refresh the internal bean factory.
			/**
			 * 第⼆步：获取BeanFactory，有了bean工厂才能创建bean,默认实现是DefaultListableBeanFactory

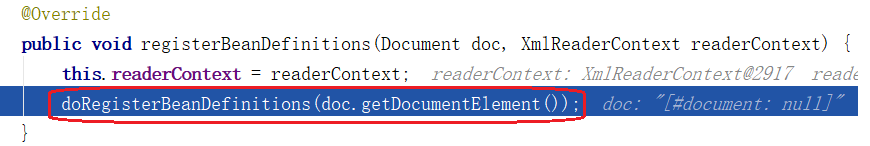

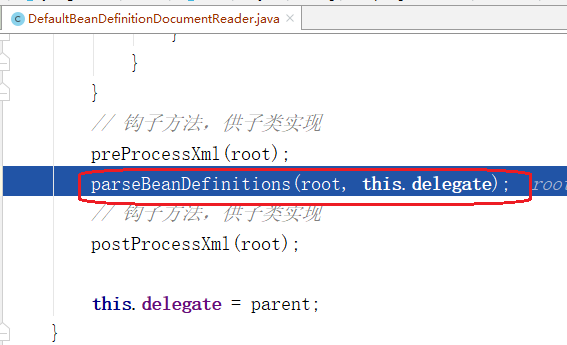

			 *    读取配置文件信息，将<bean></bean>中的信息封装成BeanDefition 并注册到 BeanDefitionRegistry（是一个map)
			 */
			ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();

			// Prepare the bean factory for use in this context.
			// 第三步：BeanFactory的预准备⼯作（BeanFactory进⾏⼀些设置，⽐如context的类加载器等
			prepareBeanFactory(beanFactory);

			try {
				// Allows post-processing of the bean factory in context subclasses.
				// 第四步：BeanFactory准备⼯作完成后进⾏的后置处理⼯作
				postProcessBeanFactory(beanFactory);

				// Invoke factory processors registered as beans in the context.
				// 第五步： 实例化并调用实现了BeanFactoryPostProcessor接口的Bean
				invokeBeanFactoryPostProcessors(beanFactory);

				// Register bean processors that intercept bean creation.
				// 第六步：注册BeanPostProcessors（Bean的后置处理器）
				registerBeanPostProcessors(beanFactory);

				// Initialize message source for this context.
				// 第七步：初始化MessageSource组件（做国际化功能；消息绑定，消息解析）；
				initMessageSource();

				// Initialize event multicaster for this context.
				// 第八步：初始化事件分发器
				initApplicationEventMulticaster();

				// Initialize other special beans in specific context subclasses.
				// 第九步：⼦类重写这个⽅法，在容器刷新的时候可以⾃定义逻辑
				onRefresh();

				// Check for listener beans and register them.
				// 第⼗步：注册应⽤的监听器。就是注册实现了ApplicationListener接⼝的监听器
				registerListeners();

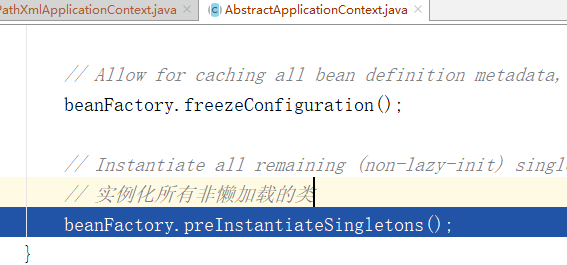

				// Instantiate all remaining (non-lazy-init) singletons.
				/**
				 * 第十一步：
				 * 初始化所有剩下的非懒加载的单例bean
				 * 初始化创建非懒加载方式的单例bean实例（未设置属性）
				 *    填充属性
				 *    初始化方法调用，（比如调用afterPropertiesSet方法、init-method方法）
				 *    调用BeanPostProcessor（bean后置处理器）对实例bean进行后处置
				 */
				finishBeanFactoryInitialization(beanFactory);

				// Last step: publish corresponding event.
				// 第⼗⼆步：完成context的刷新。主要是调⽤LifecycleProcessor的onRefresh()⽅法，并且发布事 （ContextRefreshedEvent）
				finishRefresh();
			}

			catch (BeansException ex) {
				if (logger.isWarnEnabled()) {
					logger.warn("Exception encountered during context initialization - " +
							"cancelling refresh attempt: " + ex);
				}

				// Destroy already created singletons to avoid dangling resources.
				destroyBeans();

				// Reset 'active' flag.
				cancelRefresh(ex);

				// Propagate exception to caller.
				throw ex;
			}

			finally {
				// Reset common introspection caches in Spring's core, since we
				// might not ever need metadata for singleton beans anymore...
				resetCommonCaches();
			}
		}
	}
