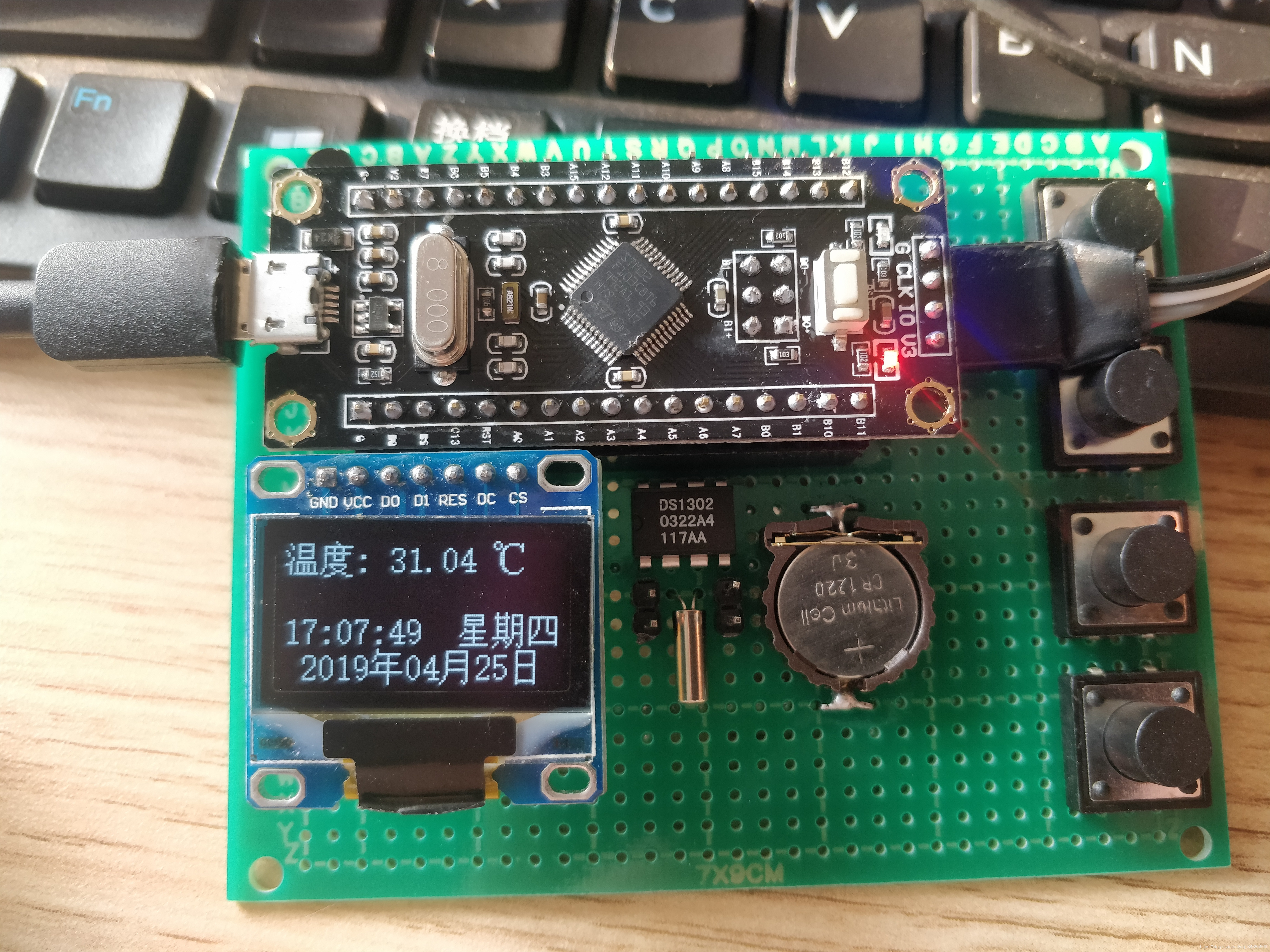

温馨提示：本篇博客文章仅仅是OLED屏幕的驱动代码，其余代码（温度，时间显示代码）见本人主页其它文章……
注意！！！！请拷贝整个keil工程出来再打开，在文件夹内文件路径太长keil5会打开失败！！！！

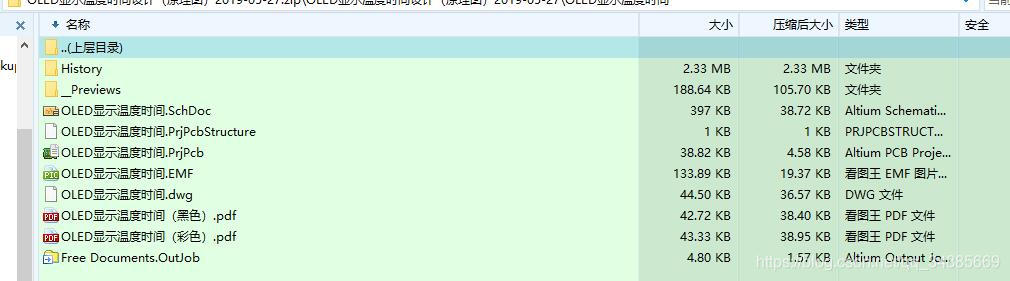

完整工程和资料包下载：
https://download.csdn.net/download/qq_34885669/11640003
注意！！！！请拷贝整个keil工程出来再打开，在文件夹内文件路径太长keil5会打开失败！！！！
第一部分：OLED屏幕驱动头文件（oled.h）
#ifndef OLED_H
#define OLED_H
#include "stm32f10x.h"
#define OLED_CMD 0 //写命令
#define OLED_DATA 1 //写数据
extern u8 Old_Menu_Page;
extern u8 Display_Fleg;
/*SPI底层硬件IO输出控制*/
#define OLED_SCK(x) if(x){GPIOB->ODR |= 1<<8;}else{GPIOB->ODR &= ~(1<<8);}
#define OLED_MOSI(x) if(x){GPIOB->ODR |= 1<<9;}else{GPIOB->ODR &= ~(1<<9);}
#define OLED_RES(x) if(x){GPIOC->ODR |= 1<<13;}else{GPIOC->ODR &= ~(1<<13);}
#define OLED_DC(x) if(x){GPIOA->ODR |= 1<<1;}else{GPIOA->ODR &= ~(1<<1);}
#define OLED_CS(x) if(x){GPIOA->ODR |= 1<<0;}else{GPIOA->ODR &= ~(1<<0);}
extern u8 OLED_GRAM[8][128];
extern u8 Menu_Page;
extern u8 Display_Fleg;
extern u8 Data_buff[25];
void SPI_GPIO_InitConfig(void);
void OLED_WR_Byte(u8 dat,u8 cmd);
void OLED_Display_On(void);
void OLED_Display_Off(void);
void OLED_Clear(void);
void OLED_Init(void);
void OLED_Draw_Point(u8 x,u8 y,u8 c);
void OLED_Refresh_Screen(void);
void LCD_ShowFont(u32 x,u32 y,u32 w,u32 h,u8 *p);
void OLED_SetCursorAddrese(u8 x,u8 y);
void OLED_PageClear(u8 page);
void OLED_DisplayString(u8 x,u8 y,u8 width,u8 height,char *str);
u8 Oled_Display(u8 x ,u8 y ,u8 width , u8 height);
void OLED_Menu_Display(void);
void Read_Control_Data(void);
#endif
第二部分：OLED屏幕驱动文件（oled.c）
#include "delay.h"
#include "oled.h"
#include "word.h"
#include "string.h"
#include "math.h"
#include "DS18B20.h"
#include "key.h"
#include "DS1302.h"
/*
SPI接口:
GPIOA_0 --DC ->OLED_DC
GPIOA_1 --CS ->OLED_CS
GPIOC_13 --RES ->OLED_RES
GPIOB_9 --D1 ->MOSI
GPIOB_8 --D0 ->SCK
*/
u8 OLED_GRAM[8][128];/*定义OLED显存数组*/
u8 Menu_Page=0;
u8 Old_Menu_Page=0;
u8 Display_Fleg=1;
u8 Data_buff[25];
u8 WIFI_Connect_State=1;
u8 Server_Connect_State=1;
int intT,decT,temp;
/*SPI底层GPIO初始化*/
void SPI_GPIO_InitConfig(void)
{
/*1.开GPIOA,GPIOB时钟*/
RCC->APB2ENR |= 1<<2;
RCC->APB2ENR |= 1<<3;
RCC->APB2ENR |= 1<<4;
/*2. 配置GPIOA_0/1/ GPIOB_8/9 GPIOC_13模式*/
GPIOA->CRL &= 0XFF00FF00;
GPIOA->CRL |= 0X00330033;
GPIOB->CRH &= 0XFFFFFF00;
GPIOB->CRH |= 0X00000033;
GPIOC->CRH &= 0XFF0FFFFF;
GPIOC->CRH |= 0X00300000;
//printf("SPI_GPIO_InitConfig OK!\n");
}
/*函数功能: 向SSD1106写入一个字节
函数参数: dat:要写入的数据/命令
cmd:数据/命令标志 0表示命令 1表示数据*/
void OLED_WR_Byte(u8 dat,u8 cmd)
{
u8 i;
if(cmd){OLED_DC(1);}
else {OLED_DC(0);}
DelayUs(2);
OLED_CS(0);
DelayUs(2);
for(i=0;i<8;i++)
{
OLED_SCK(0);
DelayUs(2);
if(dat&0x80){OLED_MOSI(1);}
else {OLED_MOSI(0);}
OLED_SCK(1);
DelayUs(2);
dat<<=1;
}
OLED_CS(1);
OLED_DC(1);
}
/*函数功能:开启OLED显示 */
void OLED_Display_On(void)
{
OLED_WR_Byte(0X8D,OLED_CMD); //SET DCDC命令
OLED_WR_Byte(0X14,OLED_CMD); //DCDC ON
OLED_WR_Byte(0XAF,OLED_CMD); //DISPLAY ON
}
/*函数功能:关闭OLED显示*/
void OLED_Display_Off(void)
{
OLED_WR_Byte(0X8D,OLED_CMD); //SET DCDC命令
OLED_WR_Byte(0X10,OLED_CMD); //DCDC OFF
OLED_WR_Byte(0XAE,OLED_CMD); //DISPLAY OFF
}
/*函数功能:清屏函数,清完屏,整个屏幕是黑色的!
说明: 清屏就是向OLED里写0
对于OLED屏,0就不显示,1才会在屏幕上显示出来一个点*/
void OLED_Clear(void)
{
u8 i,n;
for(i=0;i<8;i++)
{
OLED_WR_Byte(0xB0+i,OLED_CMD); //设置页地址（0~7）
OLED_WR_Byte(0x00,OLED_CMD); //设置显示位置―列低地址
OLED_WR_Byte(0x10,OLED_CMD); //设置显示位置―列高地址
for(n=0;n<128;n++)
{
OLED_WR_Byte(0x00,OLED_DATA);
}
}
memset(OLED_GRAM,0,sizeof(OLED_GRAM)); /*清空显存数组*/
}
/*函数功能:初始化SSD1306 (OLED显示屏的驱动芯片) */
void OLED_Init(void)
{
/*1. SPI GPIO初始化*/
SPI_GPIO_InitConfig();
/*2. 复位*/
OLED_RES(1);
DelayMs(100);
OLED_RES(0);
DelayMs(200);
OLED_RES(1);
OLED_WR_Byte(0xAE,OLED_CMD); //0xAE表示关显示,0xAF表示开显示
OLED_WR_Byte(0x00,OLED_CMD);
OLED_WR_Byte(0x10,OLED_CMD);
OLED_WR_Byte(0x40,OLED_CMD);
OLED_WR_Byte(0xB0,OLED_CMD);
OLED_WR_Byte(0x81,OLED_CMD);
OLED_WR_Byte(0xCF,OLED_CMD);
OLED_WR_Byte(0xA1,OLED_CMD);
OLED_WR_Byte(0xA6,OLED_CMD);
OLED_WR_Byte(0xA8,OLED_CMD);
OLED_WR_Byte(0x3F,OLED_CMD);
OLED_WR_Byte(0xC8,OLED_CMD);
OLED_WR_Byte(0xD3,OLED_CMD);
OLED_WR_Byte(0x00,OLED_CMD);
OLED_WR_Byte(0xD5,OLED_CMD);
OLED_WR_Byte(0x80,OLED_CMD);
OLED_WR_Byte(0xD9,OLED_CMD);
OLED_WR_Byte(0xF1,OLED_CMD);
OLED_WR_Byte(0xDA,OLED_CMD);
OLED_WR_Byte(0x12,OLED_CMD);
OLED_WR_Byte(0xDB,OLED_CMD);
OLED_WR_Byte(0x30,OLED_CMD);
OLED_WR_Byte(0x8D,OLED_CMD);
OLED_WR_Byte(0x14,OLED_CMD);
OLED_WR_Byte(0xAF,OLED_CMD); //正常模式
OLED_Clear();
//printf("OLED_Init OK！\n");
}
/*
函数功能：在显存数组上画一个点
函数参数：x，y为点的横纵坐标 c为这个点的亮灭（1亮0灭）
参数范围：x 0~128 y 0~8
每一个数据是 低位在前，高位在后*/
void OLED_Draw_Point(u8 x,u8 y,u8 c)
{
u8 page,addr;
page = y/8; //显存的页地址
addr = y%8; //显存的一个字节数据中c所在的位置
if(c) OLED_GRAM[page][x] |= 1<<addr;
else OLED_GRAM[page][x] &= ~(1<<addr);
}
/*
函数功能：更新显存到OLED屏幕上*/
void OLED_Refresh_Screen(void)
{
u8 page,list; //定义页地址和列地址
for(page=0;page<8;page++)
{
OLED_WR_Byte(0xB0+page,OLED_CMD); //设置页地址（0~7）
OLED_WR_Byte(0x00,OLED_CMD); //设置显示位置―列低地址
OLED_WR_Byte(0x10,OLED_CMD); //设置显示位置―列高地址
for(list=0;list<128;list++)
{
OLED_WR_Byte(OLED_GRAM[page][list],OLED_DATA);
}
}
memset(OLED_GRAM,0,sizeof(OLED_GRAM)); /*清空显存数组*/
}
/*
函数功能: 设置光标位置
函数参数: x列的起始位置(0~127)
y页的起始位置(0~7)
比如: 0x8 高4位0000 低4位1000
*/
void OLED_SetCursorAddrese(u8 x,u8 y)
{
OLED_WR_Byte(0xB0+y,OLED_CMD); //设置页地址
//第6列显示数据 6被分成2个4位(高位和低位)。
OLED_WR_Byte((x&0xF0)>>4|0x10,OLED_CMD);//设置列高起始地址(半字节)
OLED_WR_Byte((x&0x0F)|0x00,OLED_CMD); //设置列低起始地址(半字节)
}
/*
函数功能：在屏幕指定位置显示字符串
函数参数： x，y为字符串起点横纵坐标
width 为字模的宽大小
height 为字模的高度大小
str 为要显示的字符串
GBK=0xCEC2
GBK=0xCAAA
GBK=0xB6C8
*/
void OLED_DisplayString(u8 x,u8 y,u8 width,u8 height,char *str)
{
u8 addr=0,i;
u16 font=0;
while(*str!='\0') //连续显示
{
//取模从空格开始的，计算下标
//写8*16ASCII字符的上半部分
if(*str >= ' '&& *str <= '~') //显示英文
{
addr=*str-' '; //取模从空格开始的，计算下标
//写8*16ASCII字符的上半部分
OLED_SetCursorAddrese(x,y); //设置光标的位置
for(i=0;i<width/2;i++) //横向写width列
{
OLED_WR_Byte(ASCII_8_16[addr][i],OLED_DATA);
}
//写8*16ASCII字符的下半部分
OLED_SetCursorAddrese(x,y+1); //设置光标的位置
for(i=0;i<width/2;i++) //横向写width列
{
OLED_WR_Byte(ASCII_8_16[addr][i+width/2],OLED_DATA);
}
str++;//继续显示下一个字符
x+=width/2; //在下一个位置继续显示数据
}
else //显示中文
{
OLED_SetCursorAddrese(x,y); //设置光标的位置
font=((*str)<<8)+(*(str+1));
switch(font)
{
case 0xCEC2:addr=0;break;//温
case 0xCAAA:addr=1;break;//湿
case 0xB6C8:addr=2;break;//度
case 0xCAFD:addr=3;break;//数
case 0xBEDD:addr=4;break;//据
case 0xB3C9:addr=5;break;//成
case 0xB9A6:addr=6;break;//功
case 0xB7A2:addr=7;break;//发
case 0xCBCD:addr=8;break;//送
case 0xC1AC:addr=9;break;//连
case 0xBDD3:addr=10;break;//接
case 0xB7FE:addr=11;break;//服
case 0xCEF1:addr=12;break;//务
case 0xC6F7:addr=13;break;//器
case 0xC9CF:addr=14;break;//上
case 0xCFC2:addr=15;break;//下
case 0xCFDE:addr=16;break;//限
case 0xD6B5:addr=17;break;//值
case 0xC9E8:addr=18;break;//设
case 0xD6C3:addr=19;break;//置
case 0xB4AB:addr=20;break;//传
case 0xD6DC:addr=21;break;//周
case 0xC6DA:addr=22;break;//期
case 0xBFD8:addr=23;break;//控
case 0xD6C6:addr=24;break;//制
case 0xB2CE:addr=25;break;//参
case 0xD7DC:addr=26;break;//总
case 0xB1ED:addr=27;break;//表
case 0xB1B8:addr=28;break;//备
case 0xCDF8:addr=29;break;//网
case 0xC2E7:addr=30;break;//络
case 0xD0C5:addr=31;break;//信
case 0xCFA2:addr=32;break;//息
case 0xCAA7:addr=33;break;//失
case 0xB0DC:addr=34;break;//败
case 0xB1A3:addr=35;break;//保
case 0xB4E6:addr=36;break;//存
case 0xB9FD:addr=37;break;//过
case 0xB8DF:addr=38;break;//高
case 0xA1E6:addr=39;break;//℃
case 0xD0C7:addr=40;break;//星
case 0xC8D5:addr=42;break;//日
case 0xD2BB:addr=43;break;//一
case 0xB6FE:addr=44;break;//二
case 0xC8FD:addr=45;break;//三
case 0xCBC4:addr=46;break;//四
case 0xCEE5:addr=47;break;//五
case 0xC1F9:addr=48;break;//六
case 0xC4EA:addr=49;break;//年
case 0xD4C2:addr=50;break;//月
default : break;
}
for(i=0;i<width;i++) //横向写width列
{
OLED_WR_Byte(ChineseFont_16_16[addr][i],OLED_DATA);
}
//写8*16ASCII字符的下半部分
OLED_SetCursorAddrese(x,y+1); //设置光标的位置
for(i=0;i<width;i++) //横向写width列
{
OLED_WR_Byte(ChineseFont_16_16[addr][i+width],OLED_DATA);
}
str+=2;//继续显示下一个字符
x+=width; //在下一个位置继续显示数据
}
}
}
/*
函数功能: 按页清屏 （0~7）
*/
void OLED_PageClear(u8 page)
{
u8 j;
OLED_WR_Byte(0xB0+page,OLED_CMD); //设置页地址
OLED_WR_Byte(0x10,OLED_CMD); //设置列高起始地址(半字节)
OLED_WR_Byte(0x00,OLED_CMD); //设置列低起始地址(半字节)
for(j=0;j<128;j++)
{
OLED_WR_Byte(0,OLED_DATA); //写数据
}
}
u8 Oled_Display(u8 x ,u8 y ,u8 width , u8 height)
{
u8 i,j;
if(width>128) width=128;
if(height>64) height=64;
/*1. OLED显示屏初始化*/
OLED_Clear(); //清屏
for(i=0;i<height/8;i++)
{
OLED_WR_Byte(0xb0+y+i,OLED_CMD); //设置页地址（0~7）
OLED_WR_Byte((x&0x0F)+0x00,OLED_CMD); //设置显示位置―列低地址
OLED_WR_Byte((x&0xF0)>>4+0x10,OLED_CMD); //设置显示位置―列高地址
for(j=0;j<width;j++)
{
OLED_WR_Byte(ChineseFont_128_64[i][j],OLED_DATA);
}
}
OLED_Refresh_Screen(); //更新到OLED屏
DelayMs(10);
return 0;
}
void OLED_Menu_Display()
{
char buff[25];
if(Menu_Page!=Old_Menu_Page)
{
Old_Menu_Page=Menu_Page;
Refresh_OLED_Data=1;
OLED_Clear(); //清屏
}
if(Refresh_OLED_Data)
{
Refresh_OLED_Data=0;
temp=DS18B20_GetTemperature();
DS1302_GetTime();
intT = temp>>4 ; /*合成实际温度整数部分****精度相对上面的更高*/
decT = temp&0xF ; /*合成实际温度小数部分*/
//printf("温度:%d.%d ℃ \n",intT,decT);
sprintf(buff,"温度:%3.0d.%0.2d ℃ ",intT,decT);
OLED_DisplayString(0,0,16,16,buff);
sprintf(buff,"%0.2d:%0.2d:%0.2d ",TimeData.hour,TimeData.minute,TimeData.second);
switch(TimeData.week)
{
case 1:strcat(buff,"星期日");break;
case 2:strcat(buff,"星期一");break;
case 3:strcat(buff,"星期二");break;
case 4:strcat(buff,"星期三");break;
case 5:strcat(buff,"星期四");break;
case 6:strcat(buff,"星期五");break;
case 7:strcat(buff,"星期六");break;
default : break;
}
OLED_DisplayString(0,4,16,16,buff);
sprintf(buff," %4.0d年%0.2d月%0.2d日 ",TimeData.year,TimeData.month,TimeData.day);
OLED_DisplayString(0,6,16,16,buff);
}
}
第三部分：字库取模头文件（word.h）
#ifndef WORD_H
#define WORD_H
#include "stm32f10x.h"
#include "stdio.h"
extern const unsigned char ChineseFont_128_64[][128];
extern const unsigned char font_6[];
extern const u8 ASCII_8_16[][16];
extern const u8 ChineseFont_16_16[][32];
#endif
第四部分：字库取模源文件（word.c）
#include "word.h"
// ASCII编码8*16英文字符
const u8 ASCII_8_16[][16]=
{
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x00,0x00,0x00,0x00},/*"!",1*/
{0x00,0x10,0x0C,0x02,0x10,0x0C,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x00,0x40,0xC0,0x78,0x40,0xC0,0x78,0x00,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x00},/*"#",3*/
{0x00,0x70,0x88,0x88,0xFC,0x08,0x30,0x00,0x00,0x18,0x20,0x20,0xFF,0x21,0x1E,0x00},/*"$",4*/
{0xF0,0x08,0xF0,0x80,0x60,0x18,0x00,0x00,0x00,0x31,0x0C,0x03,0x1E,0x21,0x1E,0x00},/*"%",5*/
{0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x2C,0x19,0x27,0x21,0x10},/*"&",6*/
{0x00,0x12,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00},/*"(",8*/
{0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00},/*")",9*/
{0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00},/*"*",10*/
{0x00,0x00,0x00,0x00,0xE0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x0F,0x01,0x01,0x01},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x90,0x70,0x00,0x00,0x00,0x00,0x00},/*",",12*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x00},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00},/*".",14*/
{0x00,0x00,0x00,0x00,0xC0,0x38,0x04,0x00,0x00,0x60,0x18,0x07,0x00,0x00,0x00,0x00},/*"/",15*/
{0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00},/*"0",16*/
{0x00,0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00},/*"1",17*/
{0x00,0x70,0x08,0x08,0x08,0x08,0xF0,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00},/*"2",18*/
{0x00,0x30,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x18,0x20,0x21,0x21,0x22,0x1C,0x00},/*"3",19*/
{0x00,0x00,0x80,0x40,0x30,0xF8,0x00,0x00,0x00,0x06,0x05,0x24,0x24,0x3F,0x24,0x24},/*"4",20*/
{0x00,0xF8,0x88,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x20,0x20,0x20,0x11,0x0E,0x00},/*"5",21*/
{0x00,0xE0,0x10,0x88,0x88,0x90,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x20,0x1F,0x00},/*"6",22*/
{0x00,0x18,0x08,0x08,0x88,0x68,0x18,0x00,0x00,0x00,0x00,0x3E,0x01,0x00,0x00,0x00},/*"7",23*/
{0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00},/*"8",24*/
{0x00,0xF0,0x08,0x08,0x08,0x10,0xE0,0x00,0x00,0x01,0x12,0x22,0x22,0x11,0x0F,0x00},/*"9",25*/
{0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00},/*":",26*/
{0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x00,0x00,0x00,0x00},/*";",27*/
{0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00},/*"<",28*/
{0x00,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x00,0x02,0x02,0x02,0x02,0x02,0x02,0x00},/*"=",29*/
{0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00},/*">",30*/
{0x00,0x70,0x48,0x08,0x08,0x88,0x70,0x00,0x00,0x00,0x00,0x30,0x37,0x00,0x00,0x00},/*"?",31*/
{0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x28,0x2F,0x28,0x17,0x00},/*"@",32*/
{0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20},/*"A",33*/
{0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00},/*"B",34*/
{0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00},/*"C",35*/
{0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00},/*"D",36*/
{0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00},/*"E",37*/
{0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00},/*"F",38*/
{0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00},/*"G",39*/
{0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20},/*"H",40*/
{0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"I",41*/
{0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00},/*"J",42*/
{0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00},/*"K",43*/
{0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00},/*"L",44*/
{0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x01,0x3E,0x01,0x3F,0x20,0x00},/*"M",45*/
{0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00},/*"N",46*/
{0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00},/*"O",47*/
{0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00},/*"P",48*/
{0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x28,0x28,0x30,0x50,0x4F,0x00},/*"Q",49*/
{0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20},/*"R",50*/
{0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00},/*"S",51*/
{0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00},/*"T",52*/
{0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00},/*"U",53*/
{0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00},/*"V",54*/
{0x08,0xF8,0x00,0xF8,0x00,0xF8,0x08,0x00,0x00,0x03,0x3E,0x01,0x3E,0x03,0x00,0x00},/*"W",55*/
{0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20},/*"X",56*/
{0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00},/*"Y",57*/
{0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00},/*"Z",58*/
{0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00},/*"[",59*/
{0x00,0x04,0x38,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00},/*"\",60*/
{0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00},/*"]",61*/
{0x00,0x00,0x04,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80},/*"_",63*/
{0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x00,0x19,0x24,0x24,0x12,0x3F,0x20,0x00},/*"a",65*/
{0x10,0xF0,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00},/*"b",66*/
{0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00},/*"c",67*/
{0x00,0x00,0x80,0x80,0x80,0x90,0xF0,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20},/*"d",68*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x24,0x24,0x24,0x24,0x17,0x00},/*"e",69*/
{0x00,0x80,0x80,0xE0,0x90,0x90,0x20,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"f",70*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00},/*"g",71*/
{0x10,0xF0,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20},/*"h",72*/
{0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"i",73*/
{0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00},/*"j",74*/
{0x10,0xF0,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x06,0x29,0x30,0x20,0x00},/*"k",75*/
{0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"l",76*/
{0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F},/*"m",77*/
{0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20},/*"n",78*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00},/*"o",79*/
{0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0x91,0x20,0x20,0x11,0x0E,0x00},/*"p",80*/
{0x00,0x00,0x00,0x80,0x80,0x00,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0x91,0xFF,0x80},/*"q",81*/
{0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00},/*"r",82*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00},/*"s",83*/
{0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x10,0x00},/*"t",84*/
{0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20},/*"u",85*/
{0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x03,0x0C,0x30,0x0C,0x03,0x00,0x00},/*"v",86*/
{0x80,0x80,0x00,0x80,0x80,0x00,0x80,0x80,0x01,0x0E,0x30,0x0C,0x07,0x38,0x06,0x01},/*"w",87*/
{0x00,0x80,0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x20,0x31,0x0E,0x2E,0x31,0x20,0x00},/*"x",88*/
{0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x81,0x86,0x78,0x18,0x06,0x01,0x00},/*"y",89*/
{0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00},/*"z",90*/
{0x00,0x00,0x00,0x00,0x00,0xFC,0x02,0x02,0x00,0x00,0x00,0x00,0x01,0x3E,0x40,0x40},/*"{",91*/
{0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00},/*"|",92*/
{0x02,0x02,0xFC,0x00,0x00,0x00,0x00,0x00,0x40,0x40,0x3E,0x01,0x00,0x00,0x00,0x00},/*"}",93*/
{0x00,0x80,0x40,0x80,0x80,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x00,0x00},/*"~",94*/
};
const u8 ChineseFont_16_16[][32]=
{
{0x10,0x60,0x02,0x8C,0x00,0x00,0xFE,0x92,0x92,0x92,0x92,0x92,0xFE,0x00,0x00,0x00,0x04,0x04,0x7E,0x01,0x40,0x7E,0x42,0x42,0x7E,0x42,0x7E,0x42,0x42,0x7E,0x40,0x00},/*"温",0*/
{0x10,0x60,0x02,0x8C,0x00,0xFE,0x92,0x92,0x92,0x92,0x92,0x92,0xFE,0x00,0x00,0x00,0x04,0x04,0x7E,0x01,0x44,0x48,0x50,0x7F,0x40,0x40,0x7F,0x50,0x48,0x44,0x40,0x00},/*"湿",1*/
{0x00,0x00,0xFC,0x24,0x24,0x24,0xFC,0x25,0x26,0x24,0xFC,0x24,0x24,0x24,0x04,0x00,0x40,0x30,0x8F,0x80,0x84,0x4C,0x55,0x25,0x25,0x25,0x55,0x4C,0x80,0x80,0x80,0x00},/*"度",2*/
{0x90,0x52,0x34,0x10,0xFF,0x10,0x34,0x52,0x80,0x70,0x8F,0x08,0x08,0xF8,0x08,0x00,0x82,0x9A,0x56,0x63,0x22,0x52,0x8E,0x00,0x80,0x40,0x33,0x0C,0x33,0x40,0x80,0x00},/*"数",3*/
{0x10,0x10,0xFF,0x10,0x90,0x00,0xFE,0x92,0x92,0x92,0xF2,0x92,0x92,0x9E,0x80,0x00,0x42,0x82,0x7F,0x01,0x80,0x60,0x1F,0x00,0xFC,0x44,0x47,0x44,0x44,0xFC,0x00,0x00},/*"据",4*/
{0x00,0x00,0xF8,0x88,0x88,0x88,0x88,0x08,0x08,0xFF,0x08,0x09,0x0A,0xC8,0x08,0x00,0x80,0x60,0x1F,0x00,0x10,0x20,0x1F,0x80,0x40,0x21,0x16,0x18,0x26,0x41,0xF8,0x00},/*"成",5*/
{0x08,0x08,0x08,0xF8,0x08,0x08,0x08,0x10,0x10,0xFF,0x10,0x10,0x10,0xF0,0x00,0x00,0x10,0x30,0x10,0x1F,0x08,0x88,0x48,0x30,0x0E,0x01,0x40,0x80,0x40,0x3F,0x00,0x00},/*"功",6*/
{0x00,0x00,0x18,0x16,0x10,0xD0,0xB8,0x97,0x90,0x90,0x90,0x92,0x94,0x10,0x00,0x00,0x00,0x20,0x10,0x8C,0x83,0x80,0x41,0x46,0x28,0x10,0x28,0x44,0x43,0x80,0x80,0x00},/*"发",7*/
{0x40,0x40,0x42,0xCC,0x00,0x88,0x89,0x8E,0x88,0xF8,0x88,0x8C,0x8B,0x88,0x80,0x00,0x00,0x40,0x20,0x1F,0x20,0x40,0x50,0x48,0x46,0x41,0x42,0x44,0x58,0x40,0x40,0x00},/*"送",8*/
{0x40,0x40,0x42,0xCC,0x00,0x04,0x44,0x64,0x5C,0x47,0xF4,0x44,0x44,0x44,0x04,0x00,0x00,0x40,0x20,0x1F,0x20,0x44,0x44,0x44,0x44,0x44,0x7F,0x44,0x44,0x44,0x44,0x00},/*"连",9*/
{0x10,0x10,0x10,0xFF,0x10,0x50,0x44,0x54,0x65,0xC6,0x44,0x64,0x54,0x44,0x40,0x00,0x04,0x44,0x82,0x7F,0x01,0x82,0x82,0x4A,0x56,0x23,0x22,0x52,0x4E,0x82,0x02,0x00},/*"接",10*/
{0x00,0x00,0xFE,0x22,0x22,0x22,0xFE,0x00,0xFE,0x82,0x82,0x92,0xA2,0x9E,0x00,0x00,0x80,0x60,0x1F,0x02,0x42,0x82,0x7F,0x00,0xFF,0x40,0x2F,0x10,0x2C,0x43,0x80,0x00},/*"服",11*/
{0x00,0x00,0x90,0x88,0x4C,0x57,0xA4,0x24,0x54,0x54,0x8C,0x84,0x00,0x00,0x00,0x00,0x01,0x01,0x80,0x42,0x22,0x1A,0x07,0x02,0x42,0x82,0x42,0x3E,0x01,0x01,0x01,0x00},/*"务",12*/
{0x80,0x80,0x9E,0x92,0x92,0x92,0x9E,0xE0,0x80,0x9E,0xB2,0xD2,0x92,0x9E,0x80,0x00,0x08,0x08,0xF4,0x94,0x92,0x92,0xF1,0x00,0x01,0xF2,0x92,0x94,0x94,0xF8,0x08,0x00},/*"器",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x00,0x00,0x40,0x40,0x40,0x40,0x40,0x40,0x7F,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00},/*"上",14*/
{0x02,0x02,0x02,0x02,0x02,0x02,0xFE,0x02,0x02,0x42,0x82,0x02,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x01,0x06,0x00,0x00,0x00},/*"下",15*/
{0x00,0xFE,0x22,0x5A,0x86,0x00,0xFE,0x92,0x92,0x92,0x92,0x92,0xFE,0x00,0x00,0x00,0x00,0xFF,0x04,0x08,0x07,0x00,0xFF,0x40,0x20,0x03,0x0C,0x14,0x22,0x41,0x40,0x00},/*"限",16*/
{0x00,0x80,0x60,0xF8,0x07,0x04,0xE4,0xA4,0xA4,0xBF,0xA4,0xA4,0xE4,0x04,0x00,0x00,0x01,0x00,0x00,0xFF,0x40,0x40,0x7F,0x4A,0x4A,0x4A,0x4A,0x4A,0x7F,0x40,0x40,0x00},/*"值",17*/
{0x40,0x40,0x42,0xCC,0x00,0x40,0xA0,0x9E,0x82,0x82,0x82,0x9E,0xA0,0x20,0x20,0x00,0x00,0x00,0x00,0x3F,0x90,0x88,0x40,0x43,0x2C,0x10,0x28,0x46,0x41,0x80,0x80,0x00},/*"设",18*/
{0x00,0x17,0x15,0xD5,0x55,0x57,0x55,0x7D,0x55,0x57,0x55,0xD5,0x15,0x17,0x00,0x00,0x40,0x40,0x40,0x7F,0x55,0x55,0x55,0x55,0x55,0x55,0x55,0x7F,0x40,0x40,0x40,0x00},/*"置",19*/
{0x00,0x80,0x60,0xF8,0x07,0x40,0x48,0x48,0xE8,0x5F,0x48,0x48,0x48,0x40,0x40,0x00,0x01,0x00,0x00,0xFF,0x00,0x00,0x02,0x0B,0x12,0x22,0xD2,0x0A,0x06,0x00,0x00,0x00},/*"传",20*/
{0x00,0x00,0xFE,0x82,0x92,0x92,0x92,0xFE,0x92,0x92,0x92,0x82,0xFE,0x00,0x00,0x00,0x80,0x60,0x1F,0x00,0x00,0x1E,0x12,0x12,0x12,0x1E,0x40,0x80,0x7F,0x00,0x00,0x00},/*"周",21*/
{0x00,0x04,0xFF,0x24,0x24,0x24,0xFF,0x04,0x00,0xFE,0x22,0x22,0x22,0xFE,0x00,0x00,0x88,0x48,0x2F,0x09,0x09,0x19,0xAF,0x48,0x30,0x0F,0x02,0x42,0x82,0x7F,0x00,0x00},/*"期",22*/
{0x10,0x10,0x10,0xFF,0x90,0x20,0x98,0x48,0x28,0x09,0x0E,0x28,0x48,0xA8,0x18,0x00,0x02,0x42,0x81,0x7F,0x00,0x40,0x40,0x42,0x42,0x42,0x7E,0x42,0x42,0x42,0x40,0x00},/*"控",23*/
{0x40,0x50,0x4E,0x48,0x48,0xFF,0x48,0x48,0x48,0x40,0xF8,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x3E,0x02,0x02,0xFF,0x12,0x22,0x1E,0x00,0x0F,0x40,0x80,0x7F,0x00,0x00},/*"制",24*/
{0x00,0x20,0x20,0xA8,0x6C,0x2A,0x39,0x28,0xA8,0x2A,0x6C,0xA8,0x20,0x20,0x00,0x00,0x02,0x82,0x81,0x90,0x92,0x4A,0x49,0x45,0x24,0x22,0x10,0x08,0x01,0x02,0x02,0x00},/*"参",25*/
{0x00,0x00,0x00,0xF1,0x12,0x14,0x10,0x10,0x10,0x14,0x12,0xF1,0x00,0x00,0x00,0x00,0x40,0x30,0x00,0x03,0x39,0x41,0x41,0x45,0x59,0x41,0x41,0x73,0x00,0x08,0x30,0x00},/*"总",26*/
{0x00,0x04,0x24,0x24,0x24,0x24,0x24,0xFF,0x24,0x24,0x24,0x24,0x24,0x04,0x00,0x00,0x21,0x21,0x11,0x09,0xFD,0x83,0x41,0x23,0x05,0x09,0x11,0x29,0x25,0x41,0x41,0x00},/*"表",27*/
{0x80,0x90,0x90,0x48,0x4C,0x57,0x24,0x24,0x24,0x54,0x4C,0x44,0x80,0x80,0x80,0x00,0x00,0x00,0x00,0xFF,0x49,0x49,0x49,0x7F,0x49,0x49,0x49,0xFF,0x00,0x00,0x00,0x00},/*"备",28*/
{0x00,0xFE,0x02,0x22,0x42,0x82,0x72,0x02,0x22,0x42,0x82,0x72,0x02,0xFE,0x00,0x00,0x00,0xFF,0x10,0x08,0x06,0x01,0x0E,0x10,0x08,0x06,0x01,0x4E,0x80,0x7F,0x00,0x00},/*"网",29*/
{0x20,0x30,0xAC,0x63,0x30,0x20,0x10,0x18,0xA7,0x44,0xA4,0x14,0x0C,0x00,0x00,0x00,0x22,0x67,0x22,0x12,0x12,0x04,0x02,0xFD,0x44,0x44,0x44,0x45,0xFD,0x02,0x02,0x00},/*"络",30*/
{0x00,0x80,0x60,0xF8,0x07,0x00,0x04,0x24,0x24,0x25,0x26,0x24,0x24,0x24,0x04,0x00,0x01,0x00,0x00,0xFF,0x00,0x00,0x00,0xF9,0x49,0x49,0x49,0x49,0x49,0xF9,0x00,0x00},/*"信",31*/
{0x00,0x00,0x00,0xFC,0x54,0x54,0x56,0x55,0x54,0x54,0x54,0xFC,0x00,0x00,0x00,0x00,0x40,0x30,0x00,0x03,0x39,0x41,0x41,0x45,0x59,0x41,0x41,0x73,0x00,0x08,0x30,0x00},/*"息",32*/
{0x00,0x40,0x30,0x1E,0x10,0x10,0x10,0xFF,0x10,0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x81,0x81,0x41,0x21,0x11,0x0D,0x03,0x01,0x03,0x0D,0x11,0x21,0x41,0x81,0x81,0x00},/*"失",33*/
{0x00,0xFE,0x02,0xFA,0x02,0xFE,0x40,0x20,0xD8,0x17,0x10,0x10,0xF0,0x10,0x10,0x00,0x80,0x47,0x30,0x0F,0x10,0x67,0x80,0x40,0x21,0x16,0x08,0x16,0x21,0x40,0x80,0x00},/*"败",34*/
{0x00,0x80,0x60,0xF8,0x07,0x00,0x3E,0x22,0x22,0xE2,0x22,0x22,0x3E,0x00,0x00,0x00,0x01,0x00,0x00,0xFF,0x20,0x11,0x09,0x05,0x03,0xFF,0x03,0x05,0x09,0x11,0x20,0x00},/*"保",35*/
{0x04,0x04,0x84,0xE4,0x1C,0x07,0x24,0x24,0x24,0x24,0xA4,0x64,0x24,0x04,0x04,0x00,0x02,0x01,0x00,0xFF,0x00,0x02,0x02,0x42,0x82,0x7F,0x02,0x02,0x02,0x02,0x02,0x00},/*"存",36*/
{0x40,0x40,0x42,0xCC,0x00,0x08,0x48,0x88,0x08,0x08,0x08,0xFF,0x08,0x08,0x08,0x00,0x00,0x40,0x20,0x1F,0x20,0x40,0x40,0x41,0x40,0x48,0x50,0x4F,0x40,0x40,0x40,0x00},/*"过",37*/
{0x04,0x04,0x04,0x04,0xF4,0x94,0x95,0x96,0x94,0x94,0xF4,0x04,0x04,0x04,0x04,0x00,0x00,0xFE,0x02,0x02,0x7A,0x4A,0x4A,0x4A,0x4A,0x4A,0x7A,0x02,0x82,0xFE,0x00,0x00},/*"高",38*/
{0x06,0x09,0x09,0xE6,0xF8,0x0C,0x04,0x02,0x02,0x02,0x02,0x02,0x04,0x1E,0x00,0x00,0x00,0x00,0x00,0x07,0x1F,0x30,0x20,0x40,0x40,0x40,0x40,0x40,0x20,0x10,0x00,0x00},/*"℃",39*/
{0x00,0x00,0x00,0xBE,0x2A,0x2A,0x2A,0xEA,0x2A,0x2A,0x2A,0x3E,0x00,0x00,0x00,0x00,0x00,0x44,0x42,0x49,0x49,0x49,0x49,0x7F,0x49,0x49,0x49,0x49,0x41,0x40,0x00,0x00},/*"星",40*/
{0x00,0x04,0xFF,0x24,0x24,0x24,0xFF,0x04,0x00,0xFE,0x22,0x22,0x22,0xFE,0x00,0x00,0x88,0x48,0x2F,0x09,0x09,0x19,0xAF,0x48,0x30,0x0F,0x02,0x42,0x82,0x7F,0x00,0x00},/*"期",41*/
{0x00,0x00,0x00,0xFE,0x82,0x82,0x82,0x82,0x82,0x82,0x82,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0xFF,0x00,0x00,0x00,0x00},/*"日",42*/
{0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"一",43*/
{0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x00,0x00,0x00,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x00},/*"二",44*/
{0x00,0x04,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x04,0x00,0x00,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x00},/*"三",45*/
{0x00,0xFC,0x04,0x04,0x04,0xFC,0x04,0x04,0x04,0xFC,0x04,0x04,0x04,0xFC,0x00,0x00,0x00,0x7F,0x28,0x24,0x23,0x20,0x20,0x20,0x20,0x21,0x22,0x22,0x22,0x7F,0x00,0x00},/*"四",46*/
{0x00,0x02,0x42,0x42,0x42,0xC2,0x7E,0x42,0x42,0x42,0x42,0xC2,0x02,0x02,0x00,0x00,0x40,0x40,0x40,0x40,0x78,0x47,0x40,0x40,0x40,0x40,0x40,0x7F,0x40,0x40,0x40,0x00},/*"五",47*/
{0x20,0x20,0x20,0x20,0x20,0x20,0x21,0x22,0x2C,0x20,0x20,0x20,0x20,0x20,0x20,0x00,0x00,0x40,0x20,0x10,0x0C,0x03,0x00,0x00,0x00,0x01,0x02,0x04,0x18,0x60,0x00,0x00},/*"六",48*/
{0x00,0x20,0x18,0xC7,0x44,0x44,0x44,0x44,0xFC,0x44,0x44,0x44,0x44,0x04,0x00,0x00,0x04,0x04,0x04,0x07,0x04,0x04,0x04,0x04,0xFF,0x04,0x04,0x04,0x04,0x04,0x04,0x00},/*"年",49*/
{0x00,0x00,0x00,0xFE,0x22,0x22,0x22,0x22,0x22,0x22,0x22,0x22,0xFE,0x00,0x00,0x00,0x80,0x40,0x30,0x0F,0x02,0x02,0x02,0x02,0x02,0x02,0x42,0x82,0x7F,0x00,0x00,0x00},/*"月",50*/
};
版权声明：本文为qq_34885669原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
