散点图：

from pyecharts.charts import *
import numpy as np
import pyecharts.options as opt

x = np.linspace(0,2*np.pi,50)
y = np.sin(x)
y2 = np.cos(x)
# 散点图
(Scatter(init_opts=opt.InitOpts(width='620px',height='320px'))
    .add_xaxis(xaxis_data=x)
    .add_yaxis(series_name='sin',y_axis=y)
    .add_yaxis(series_name='cos',y_axis=y2,label_opts=opt.LabelOpts(is_show=False))
).render_notebook()

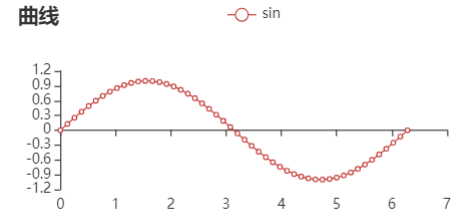

线图：

# 线图
(Line()
    .add_xaxis(xaxis_data=x)
    .add_yaxis(series_name='sin',y_axis=y,label_opts=opt.LabelOpts(is_show=False))
    .set_global_opts(title_opts=opt.TitleOpts(title='曲线'),  # 设置标题
                    tooltip_opts=opt.TooltipOpts(axis_pointer_type='cross')
                    )    # 全局设置，
).render_notebook()
